Invacare LYNX LX-3 User Manual

Invacare Scooters 20 Part No. 1090132 Rev F

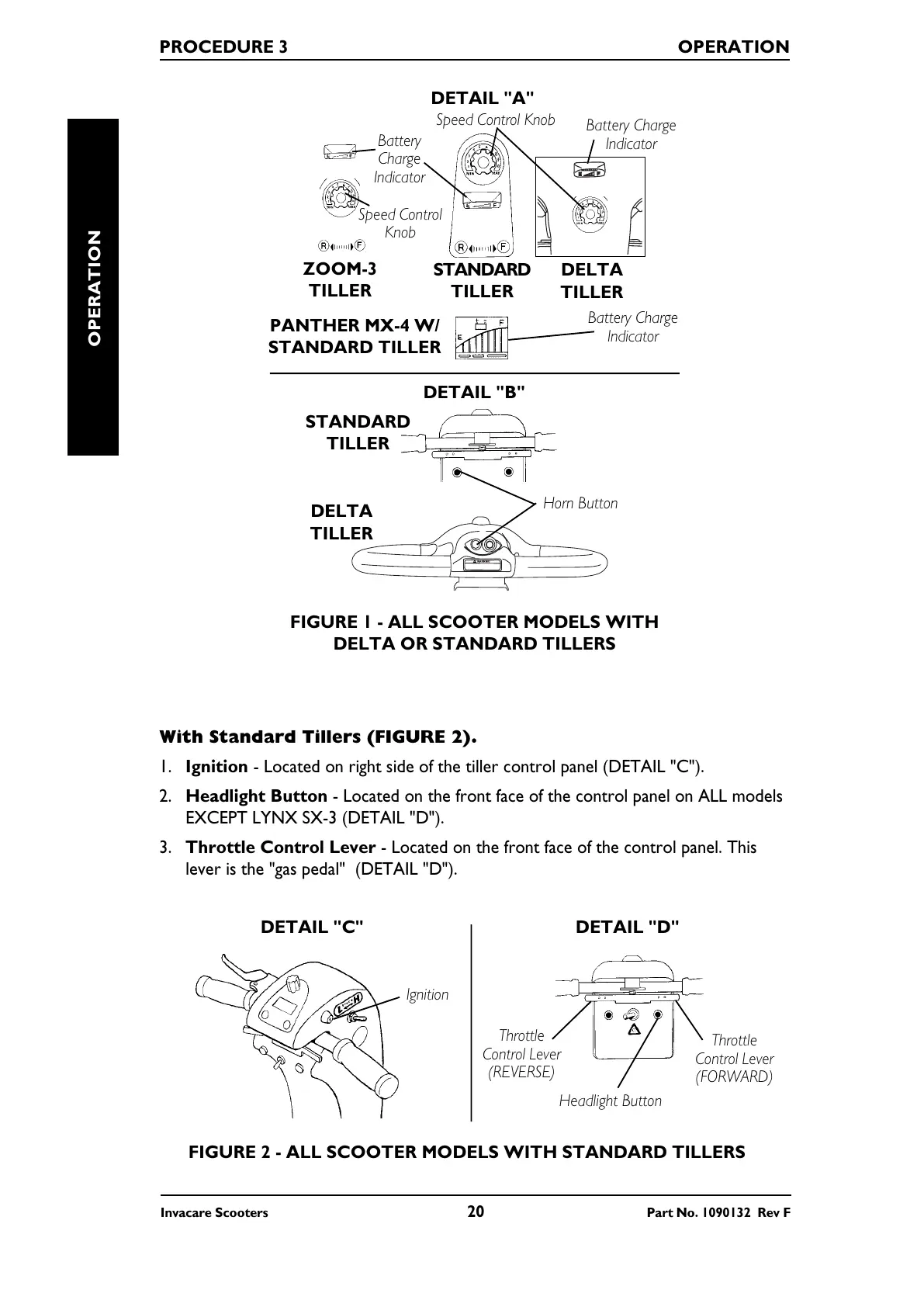

PROCEDURE 3 OPERATION
OPERATION
With Standard Tillers (FIGURE 2).
1. Ignition - Located on right side of the tiller control panel (DETAIL "C").
2. Headlight Button - Located on the front face of the control panel on ALL models
EXCEPT LYNX SX-3 (DETAIL "D").
3. Throttle Control Lever - Located on the front face of the control panel. This
lever is the "gas pedal" (DETAIL "D").
FIGURE 2 - ALL SCOOTER MODELS WITH STANDARD TILLERS
Throttle
Control Lever
(REVERSE)
Throttle
Control Lever
(FORWARD)
Headlight Button
DETAIL "D"
Ignition
DETAIL "C"
DETAIL "A"
Speed Control Knob
STANDARD
TILLER
DELTA
TILLER
Battery Charge
Indicator
PANTHER MX-4 W/
STANDARD TILLER
Battery Charge
Indicator
ZOOM-3
TILLER
Battery
Charge
Indicator
Speed Control
Knob
FIGURE 1 - ALL SCOOTER MODELS WITH
DELTA OR STANDARD TILLERS
Horn Button
DETAIL "B"
STANDARD
TILLER
DELTA
TILLER
