Part No. 1090132 Rev F 25 Invacare Scooters
RESET CIRCUIT BREAKER/FUSE REPLACEMENT (FIGURE 9)
CIRCUIT BREAKER
NOTE: Key must be removed from ignition before resetting circuit breaker.
1. To reset, press circuit breaker button located on rear shroud.
FUSE REPLACEMENT
1. Remove seat. Refer to REMOVING/INSTALLING THE SEAT in PROCEDURE 5 of
this manual.
2. Remove rear shroud. Refer to REMOVING/
INSTALLING REAR SHROUD in PROCEDURE 9 of this manual.
3. Flip top of fuse holder open.
4. Pull fuse out and install NEW fuse.
5. Reverse STEPS 1-3 to reassemble.

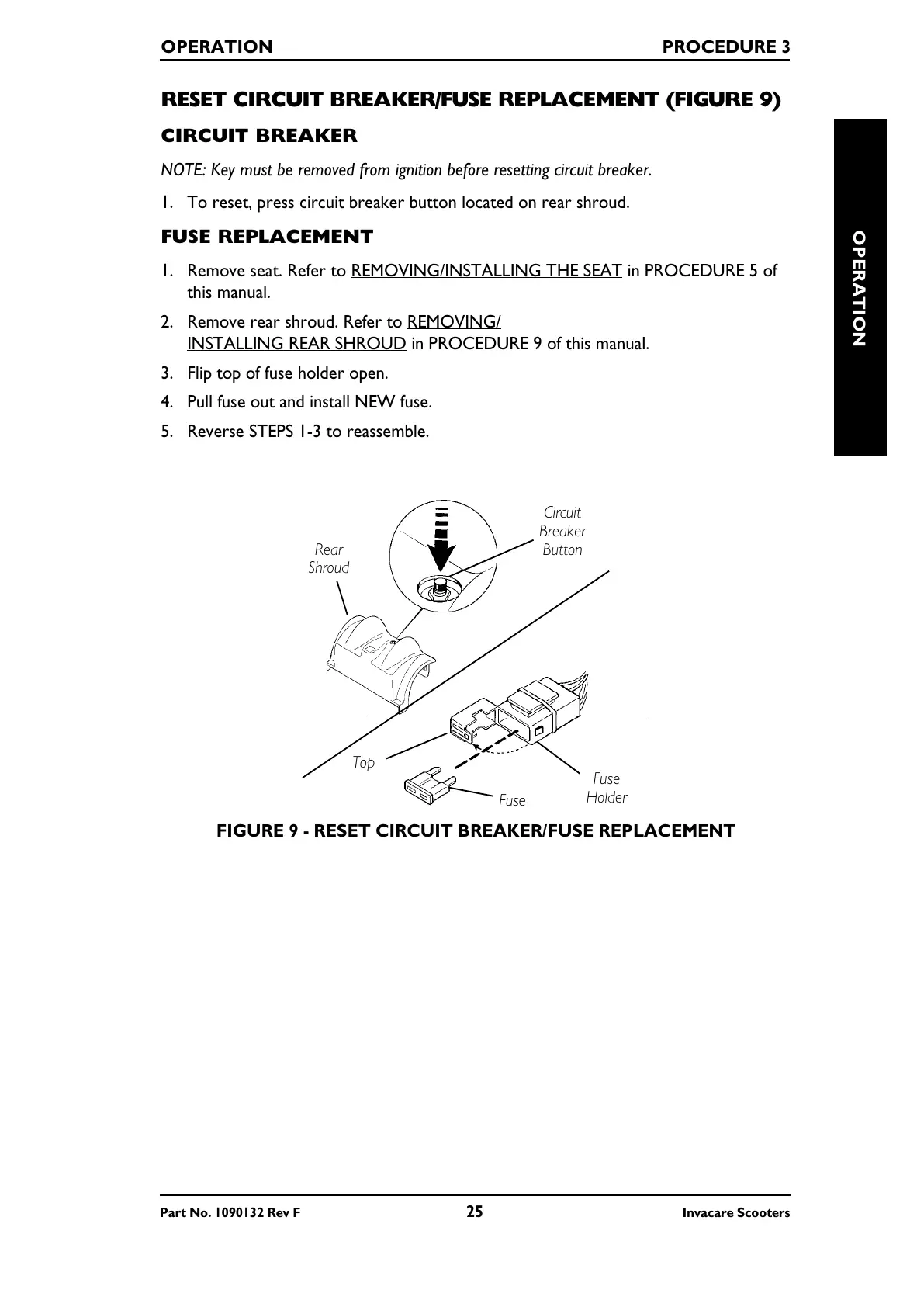

FIGURE 9 - RESET CIRCUIT BREAKER/FUSE REPLACEMENT
Circuit
Breaker
Button
Fuse
Holder
Fuse
Top
Rear
Shroud
PROCEDURE 3OPERATION
OPERATION
