Invacare LYNX LX-3 User Manual

Part No. 1090132 Rev F 43 Invacare Scooters
ARMSPROCEDURE 7
BACK

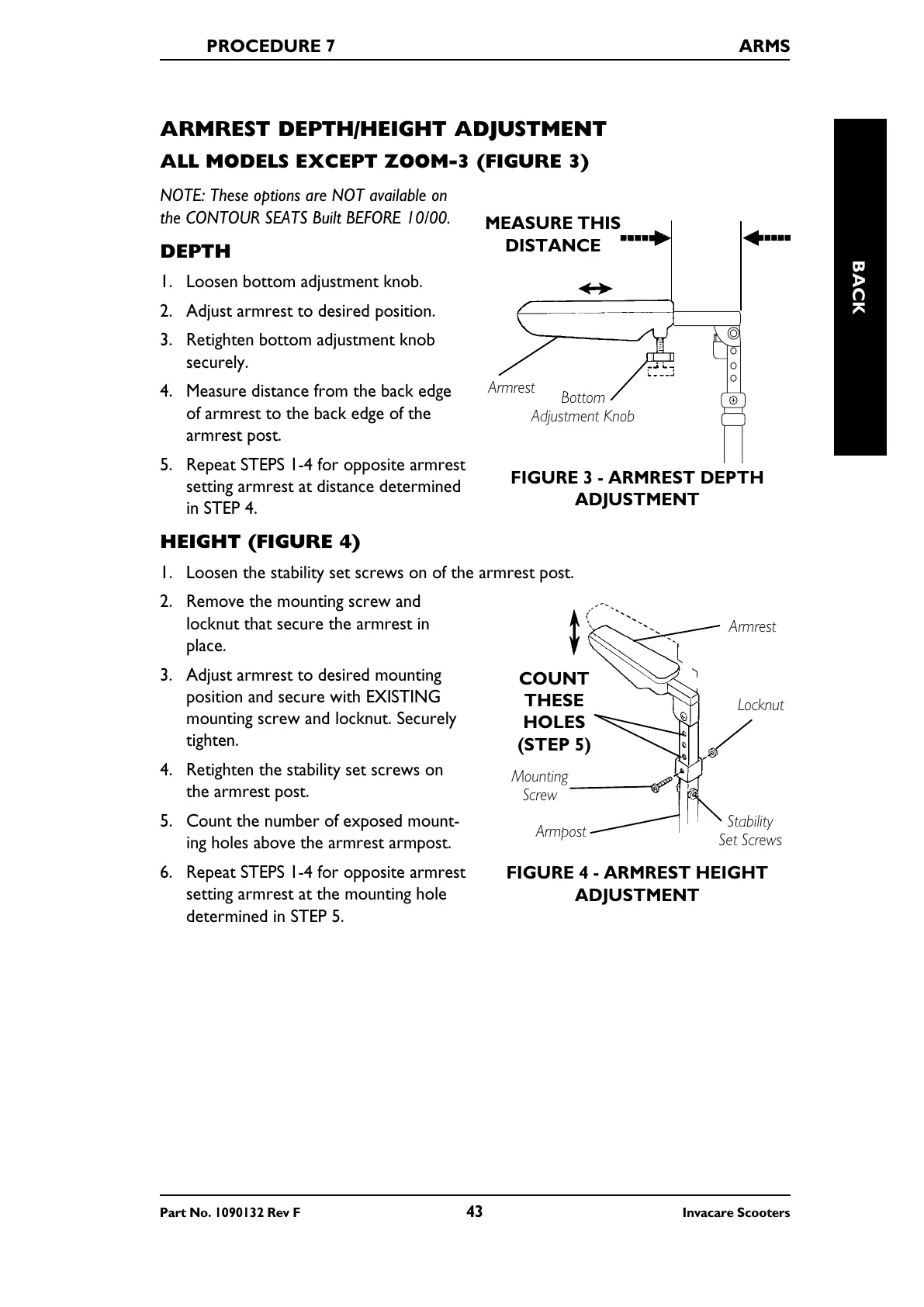

ARMREST DEPTH/HEIGHT ADJUSTMENT
ALL MODELS EXCEPT ZOOM-3 (FIGURE 3)
NOTE: These options are NOT available on
the CONTOUR SEATS Built BEFORE 10/00.
DEPTH
1. Loosen bottom adjustment knob.
2. Adjust armrest to desired position.
3. Retighten bottom adjustment knob
securely.
4. Measure distance from the back edge
of armrest to the back edge of the
armrest post.
5. Repeat STEPS 1-4 for opposite armrest
setting armrest at distance determined
in STEP 4.
HEIGHT (FIGURE 4)
1. Loosen the stability set screws on of the armrest post.
2. Remove the mounting screw and
locknut that secure the armrest in
place.
3. Adjust armrest to desired mounting
position and secure with EXISTING
mounting screw and locknut. Securely
tighten.
4. Retighten the stability set screws on
the armrest post.
5. Count the number of exposed mount-
ing holes above the armrest armpost.
6. Repeat STEPS 1-4 for opposite armrest
setting armrest at the mounting hole
determined in STEP 5.
Armpost
Stability
Set Screws
Mounting
Screw
Locknut
Armrest
COUNT
THESE
HOLES
(STEP 5)
FIGURE 4 - ARMREST HEIGHT
ADJUSTMENT
Bottom
Adjustment Knob
MEASURE THIS
DISTANCE
FIGURE 3 - ARMREST DEPTH
ADJUSTMENT
Armrest
