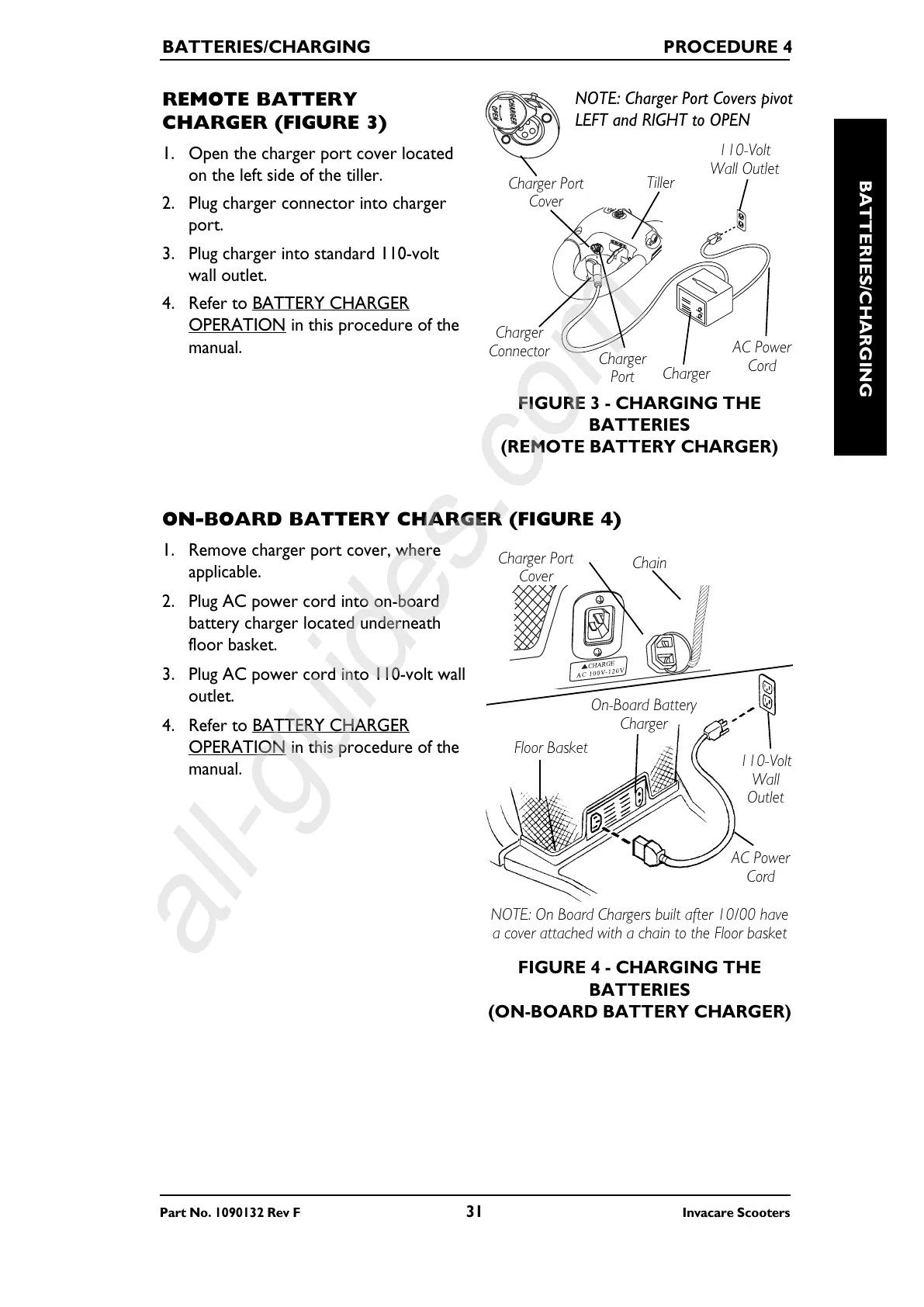

Part No. 1090132 Rev F 31 Invacare Scooters
REMOTE BATTERY
CHARGER (FIGURE 3)
1. Open the charger port cover located
on the left side of the tiller.
2. Plug charger connector into charger
port.
3. Plug charger into standard 110-volt
wall outlet.
4. Refer to BATTERY CHARGER
OPERATION in this procedure of the
manual.
FIGURE 3 - CHARGING THE
BATTERIES
(REMOTE BATTERY CHARGER)
Charger Port
Cover
Tiller
110-Volt
Wall Outlet
Charger
AC Power
Cord
Charger
Port
Charger
Connector
NOTE: Charger Port Covers pivot
LEFT and RIGHT to OPEN
ON-BOARD BATTERY CHARGER (FIGURE 4)
1. Remove charger port cover, where
applicable.
2. Plug AC power cord into on-board
battery charger located underneath
floor basket.
3. Plug AC power cord into 110-volt wall
outlet.
4. Refer to BATTERY CHARGER
OPERATION in this procedure of the
manual.
Floor Basket
On-Board Battery
Charger
110-Volt
Wall
Outlet
AC Power
Cord
FIGURE 4 - CHARGING THE
BATTERIES
(ON-BOARD BATTERY CHARGER)
Charger Port
Cover
Chain
NOTE: On Board Chargers built after 10/00 have
a cover attached with a chain to the Floor basket
BATTERIES/CHARGING PROCEDURE 4
BATTERIES/CHARGING
