SECTION 4—JOYSTICK DESCRIPTIONS
Part No 1110532 15 MK
5
™NX™Electronics
SPJ Diagnostic Indications of Wheelchair Status

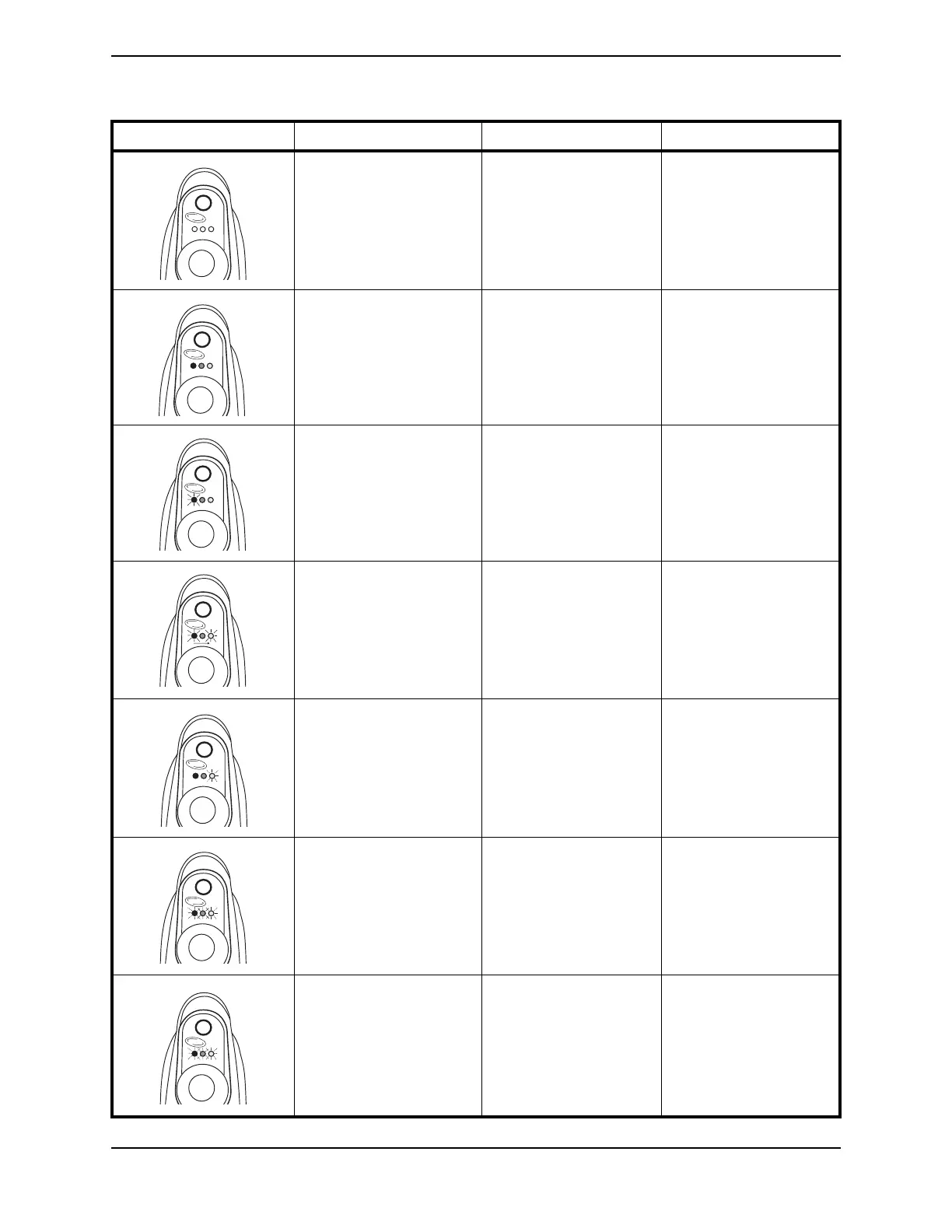

DISPLAY DESCRIPTION DEFINITION COMMENTS
All three LEDs are off. Power is Off.
All three LEDs are on. Power is On. Fewer than three LEDs on
implies reduced battery
charge.
RED LED is flashing. Battery charge is low. The batteries should be
charged as soon as possi-
ble.
Left to Right “chase” alter-
nating with steady display.
Joystick is in program-
ming, inhibit and/or charg-
ing mode.
The steady LEDs indicate
the current state of the
battery charge.
GREEN LED is flashing. Joystick is in Speed Limit
mode.
The current state of bat-
tery charge will be dis-
played at the same time.
All LEDs are flashing slowly. Joystick has detected Out-
of-Neutral-at-Power-Up
mode.
Release the joystick back
to Neutral.
All LEDs are flashing
quickly.
Joystick has detected a
fault.
Joystick uses Flash codes
to indicate faults.
