SECTION 10—CONNECTOR DESCRIPTIONS
Part No 1110532 39 MK
5
™NX™Electronics
SECTION 10—CONNECTOR
DESCRIPTIONS
Controller Connector Descriptions
NX, NX-50, NX-75, NX-B and NX-LP
NOTE: For this procedure, refer to FIGURE 10.1.

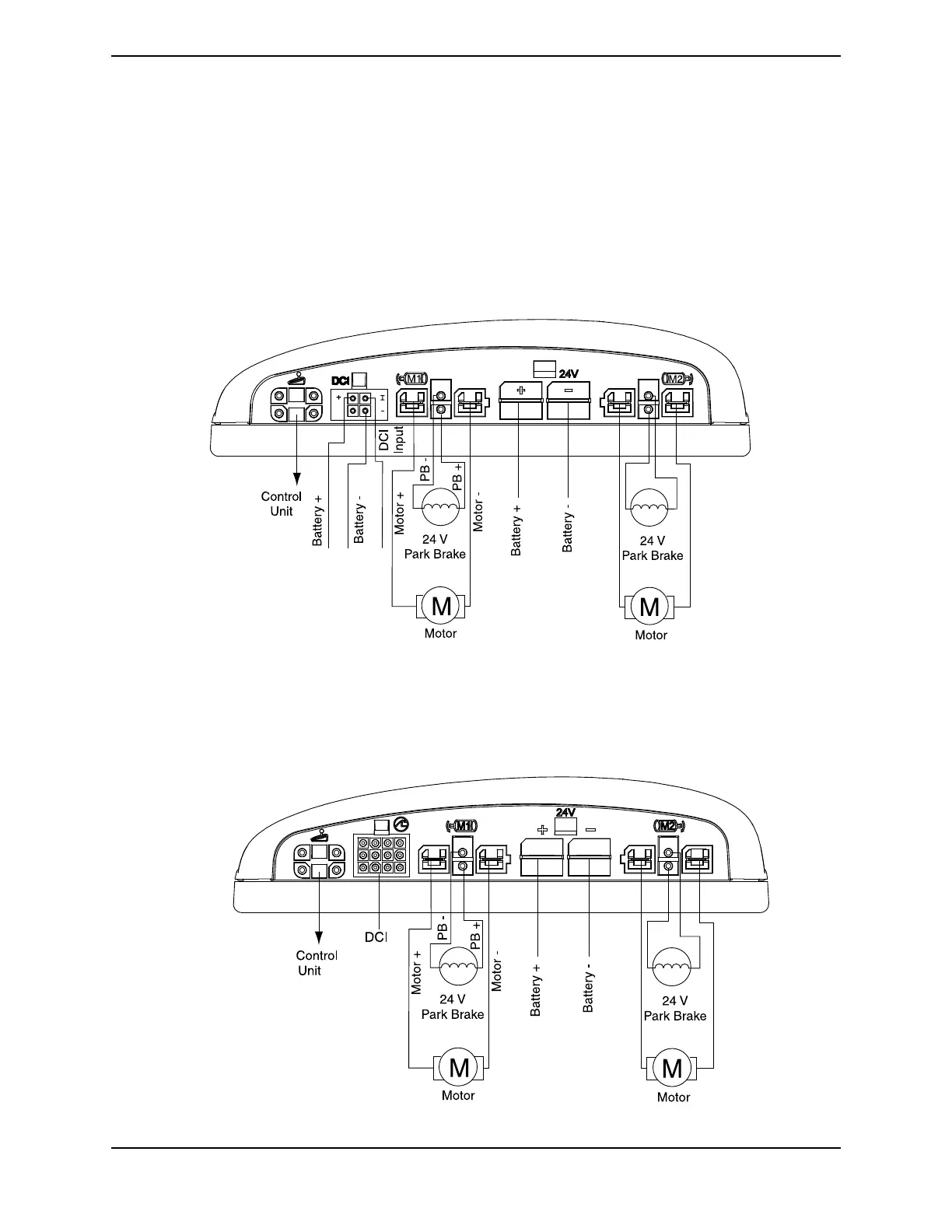

FIGURE 10.1 NX, NX-50, NX-75, NX-B and NX-LP
NX w/ACC
NOTE: For this procedure, refer to FIGURE 10.2.
FIGURE 10.2 NX w/ACC
Front of
Controller
Front of
Controller
