SECTION 10—CONNECTOR DESCRIPTIONS
Part No 1110532 41 MK
5
™NX™Electronics
NX, NX-50, NX-75, NX-B, and NX-LP
NOTE: For this procedure, refer to FIGURE 10.6.
FIGURE 10.6 NX, NX-50, NX-75, NX-B,
and NX-LP
NX w/ACC
NOTE: For this procedure, refer to FIGURE 10.7.
FIGURE 10.7 NX w/ACC
Battery Charger Port
NOTE: For this procedure, refer to FIGURE 10.8.

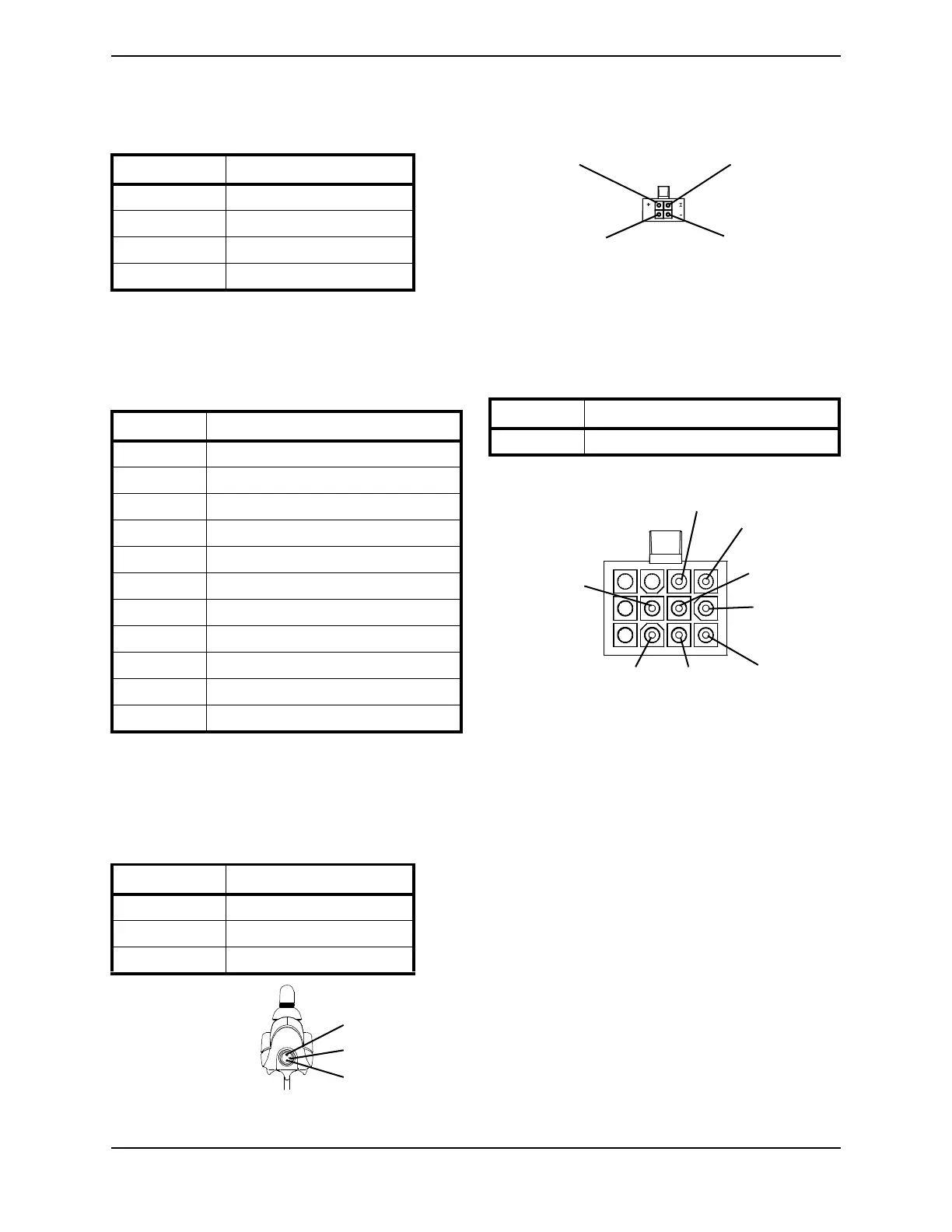

FIGURE 10.8 Motor Connector Pinout
PIN FUNCTION
1 Battery Positive
2 DCI Input (Drive Lockout)
3 --No Connection--
4 Battery Negative
1
2
4
3
PIN FUNCTION
1 Actuator 1 Negative
2 Actuator 1 Positive
3n/a
4n/a
5 Actuator 2 Negative
6 Drive Control Input (Drive Lockout)
7 Battery Positive
8n/a
9 Actuator 2 Positive
10 Battery Negative
11 -- No Connection --
12 n/a
PIN FUNCTION
1
2
5
6
7
9
10
11
PIN FUNCTION
1 Battery Positive
2 Battery Negative
3 Serial Data/DCI Input
1
2
3
Front of
Joystick
