LABEL LOCATIONS

Part No 1143150 9 TDX

®

Wheelchairs

Wheelchairs without TRRO

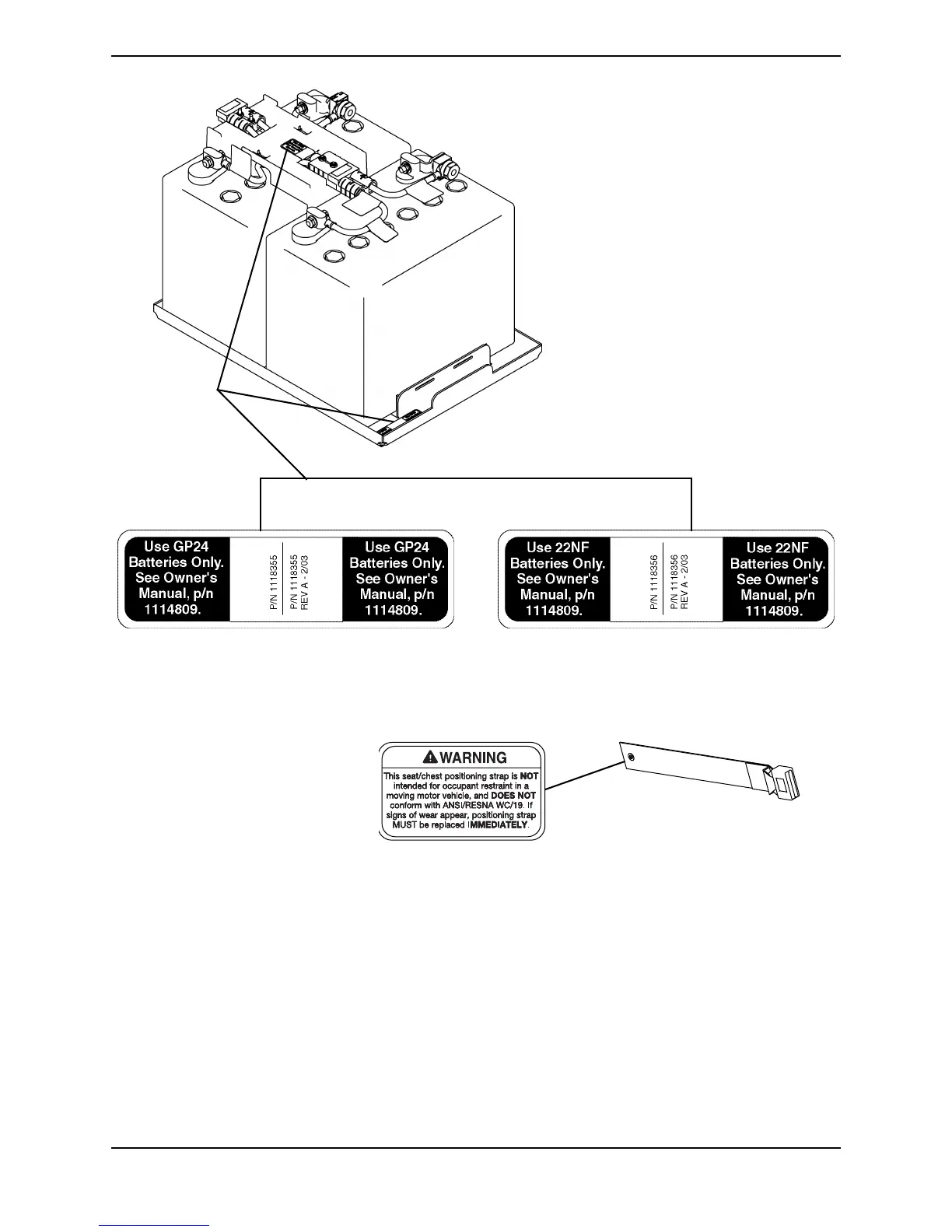

One of these labels will appear on the battery tray and the

battery wiring connector bracket, depending on battery type.

NOTE: Auto style seat

positioning strap shown. This

label is also on the airline style

seat positioning strap.
