7.2.6.1.2.5. Status sending
Function - selects whether module status is to be attached to the
message.
Data type - List
List - Yes
Status attached
No
No status attached
Default value - Yes
Comments - if the message will include the status of the module, total
length of SMS text and the status may not exceed 160
characters. It the length is greater, the text will be
truncated so that full status is sent.
7.2.6.2. Data sending
List of Data sending rules can hold max. 32 entries defining data transmission conditions.

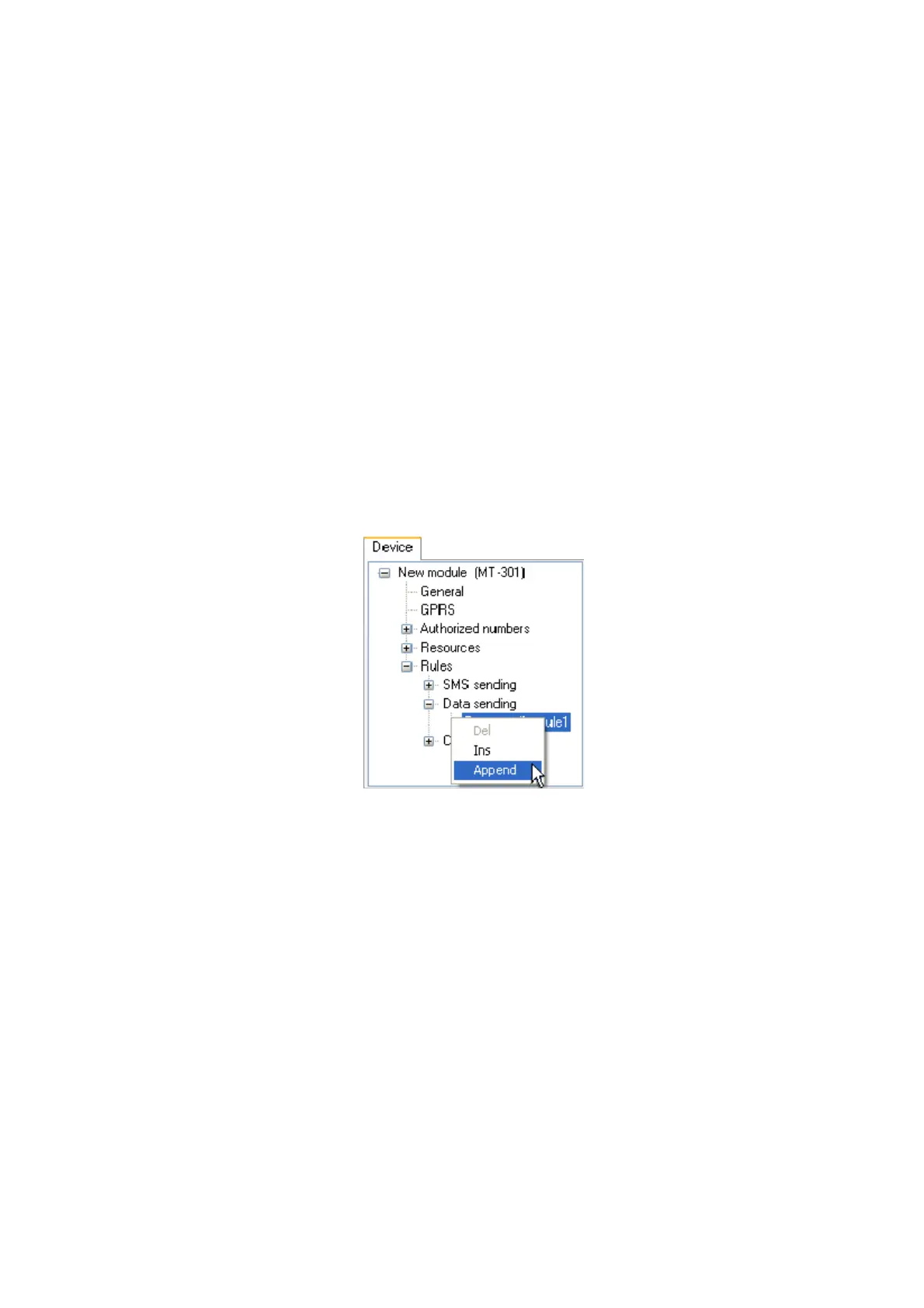

A defined data block or Status will be sent to appointed IP address. Adding a new position
is done in the context menu by right-clicking mouse while one of positions on the list is
highlighted.
Adding more rules is done by setting the parameter number of data sending rules to
desired value.
7.2.6.2.1. Number of data sending rules
Function - declares number of SMS sending rules
Data type - number
Range - 1…32
Default value - 1
Comments - diminishing the number of rules does not delete settings
until the configuration is written to the module.
7.2.6.2.1.1. Data sending rule
Each of rules residing on the list is defined by following parameters:
Trigger input
Trigger flag
IP Address
