Page 12
Refer to the following diagram to ensure proper distance from walls and ceiling:
Step 2: Attach mounting plate to wall
The mounting plate is the device on which you
will mount the indoor unit.
1.
Remove the screw that attaches the mounting
plate to the back of the indoor unit.
2.
Place the mounting plate against the wall
in a location that meets the standards in
the Select Installation Location step. (See
Mounting Plate Dimensions for detailed
information on mounting plate sizes.)
3.
Drill holes for mounting screws in places that:
have studs and can support the weight of
the unit
correspond to screw holes in the mounting
plate
4.
Secure the mounting plate to the wall with
the screws provided.
5.
Make sure that mounting plate is at against
the wall.
NOTE FOR CONCRETE OR BRICK WALLS:
If the wall is made of brick, concrete, or similar
material, drill 5mm-diameter (0.2in-diameter)
holes in the wall and insert the sleeve anchors
provided. Then secure the mounting plate to
the wall by tightening the screws directly into
the clip anchors.
Step 3: Drill wall hole for connective piping
You must drill a hole in the wall for refrigerant
piping, the drainage pipe, and the signal cable
that will connect the indoor and outdoor units.
1.
Determine the location of the wall hole based
on the position of the mounting plate. Refer
to Mounting Plate Dimensions on the
next page to help you determine the optimal
position. The wall hole should have a 65mm
(2.5in) diameter at least, and at a slightly
lower angle to facilitate drainage.
CAUTION
When drilling the wall hole, make sure to
avoid wires, plumbing, and other sensitive
components.
Fig. 3.1-b
12cm (4.75in)
or more
2.3m (90.55in) or more
12cm (4.75in)
or more
15cm (5.9in) or more
2.
Using a 65mm (2.5in) or 90mm(3.54in)
(depending on models )core drill, drill a
hole in the wall. Make sure that the hole
is drilled at
a slight downward angle, so
that the outdoor end of the hole is lower
than the indoor end by about 5mm to 7mm
(0.2-0.275in). This will ensure proper water
drainage. (See Fig. 3.2)
3.
Place the protective wall cuff in the hole. This
protects the edges of the hole and will help
seal it when you nish the installation process.

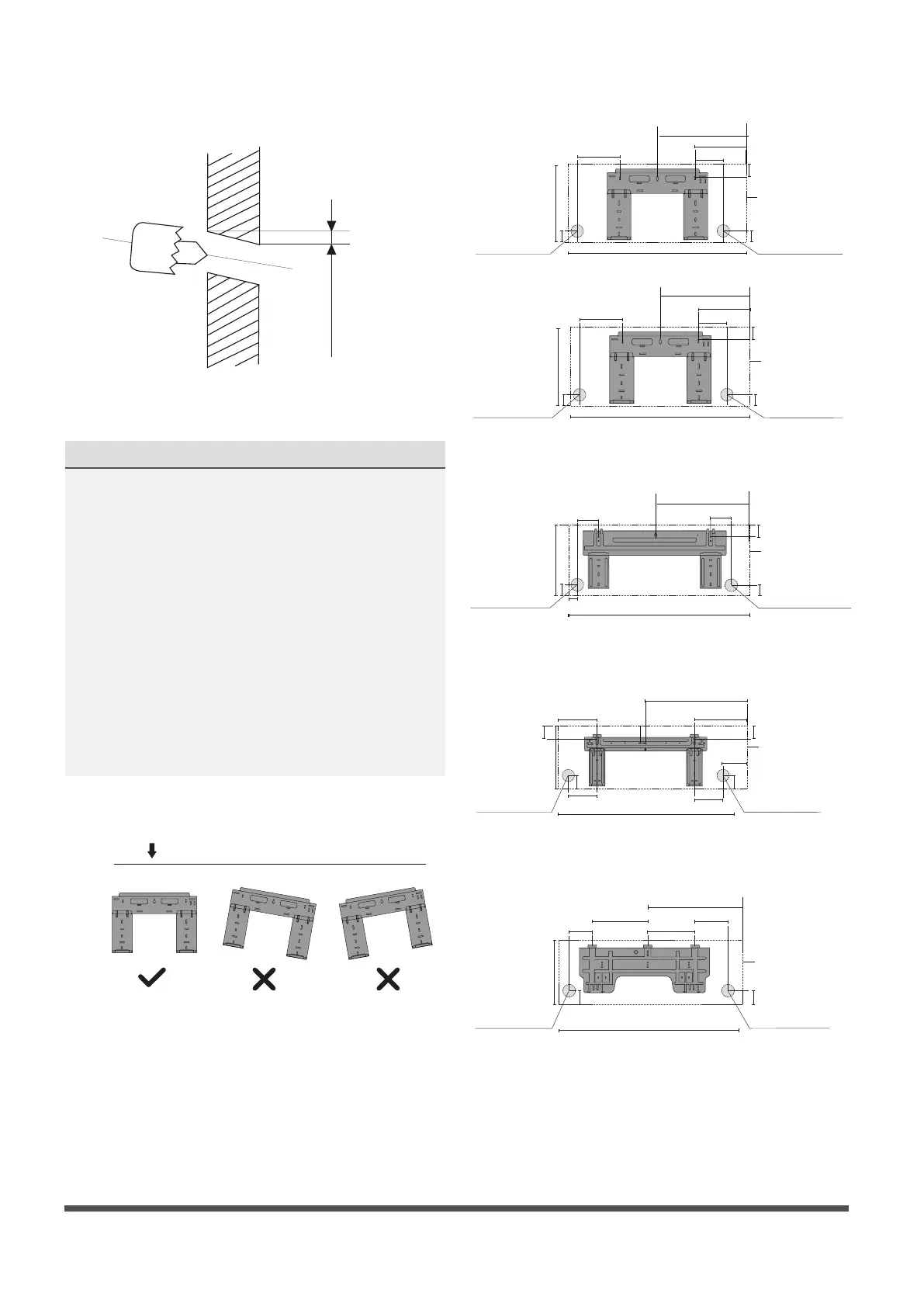

Page 13
Wall
Indoor Outdoor
mm7-5
(0.2-0.275in)
Fig.3.2
MOUNTING PLATE DIMENSIONS
Different models have different mounting plates.
In order to ensure that you have ample room to
mount the indoor unit, the diagrams to the right
show different types of mounting plates along
with the following dimensions:
Width of mounting plate
Height of mounting plate
Width of indoor unit relative to plate
Height of indoor unit relative to plate
Recommended position of wall hole (both
to the left and right of mounting plate)
Relative distances between screw holes
Fig. 3.2
101mm (4in)
179mm (7.05in)
136mm (5.35in)
37mm (1.45in)
290mm (11.4in)
49mm (1.95in)
Right rear wall
hole 65mm (2.5in)
Indoor unit outline
722mm (28.45in)
49mm (1.95in)
192mm (7.55in)
232mm (9.15in)
426mm (16.8in)
128mm (5.05in)
43mm (1.7in)
297mm (11.7in)
Left rear wall
hole 65mm (2.5in)
Left rear wall
hole 65mm (2.5in)
Left rear wall
hole 65mm (2.5in)
Right rear wall
hole 65mm (2.5in)
Indoor unit outline
802mm (31.6in)
43mm (1.7in)
43mm (1.7in)
144mm (5.65in)
58mm (2.3in)
319mm (12.55in)
57mm (2.25in)
40mm (1.55in)
Right rear wall
hole 65mm (2.5in)
Model C
965mm (38in)
138mm (5.45in)
34mm (1.35in)
Indoor unit outline
219mm (8.6in)
553mm (21.77in)
300mm (11.8in)
335mm (13.2in)
Left rear wall
hole 65mm (2.5in)
Right rear wall
hole 65mm (2.5in)
Model D
1080mm (42.5in)
53.5mm
(2.1in)
47mm (1.85in)
76mm(3in)
53.5mm (2.1in)
47mm (1.85in)
148.7mm
(5.85in)
151mm (5.95in)
174.3mm (6.85in)
Indoor unit outline
172mm (6.8in)
362mm (14.25in)
Left rear wall
hole 90mm (3.54in)
Right rear wall
hole 90mm (3.54in)
Model E
1259mm (49.55in)
Indoor unit outline
52mm (2.05in)
389mm (15.3in)
332mm (13.05in)
257mm (10.1in)
643.6mm (25.3in)
52mm (2.05in)
Correct orientation of Mounting Plate
517.4mm (20.37in)
348.4mm (13.7in)
Φ
NOTE: When the gas side connective pipe is
16mm(5/8in) or more, the wall hole should
be 90mm(3.54in).
