Technical Information
8
Service Manual
14
Technical Information
Service Manual

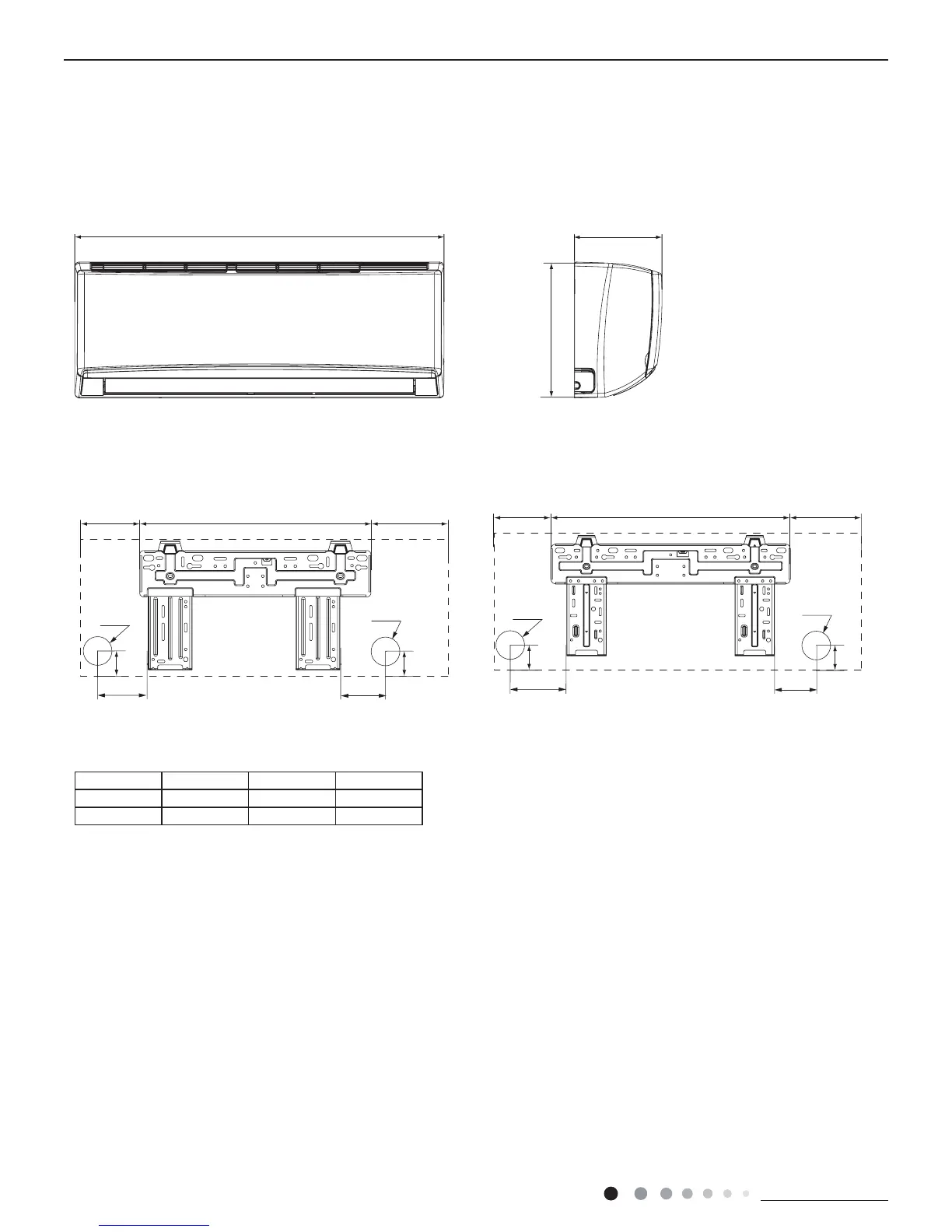

3. Outline Dimension Diagram
3.1 Indoor Unit
Unit:mm
Model W H D
09K 790 275 200
12K 845 289 209
W
12K
09K
D
H
90
150
54
168.5 462 159.5
Φ55
Φ55
54
123.5 542 179.5
83.2
124.7
35
Φ55
Φ55
35
