INVENTOR L4VI32-09 Service Manual

Installation and Maintenance
71
Service Manual
120
Installation and Maintenance
Service Manual
ProcedureStep
Remove the screws fixing motor clamp
and then remove the motor clamp.
Remove the screws at the connection
place of cross flow blade and motor; lift
the motor and cross flow blade upwards
to remove them.
Remove the bearing holder sub-assy.
Remove the screw xing step motor and
then remove the step motor.
Screws
Screw
Motor clamp
9. Remove motor and cross ow blade
Motor
Cross ow
Holder
sub-assy
Step motor
Screws
a
b
126
Installation and Maintenance
Service Manual

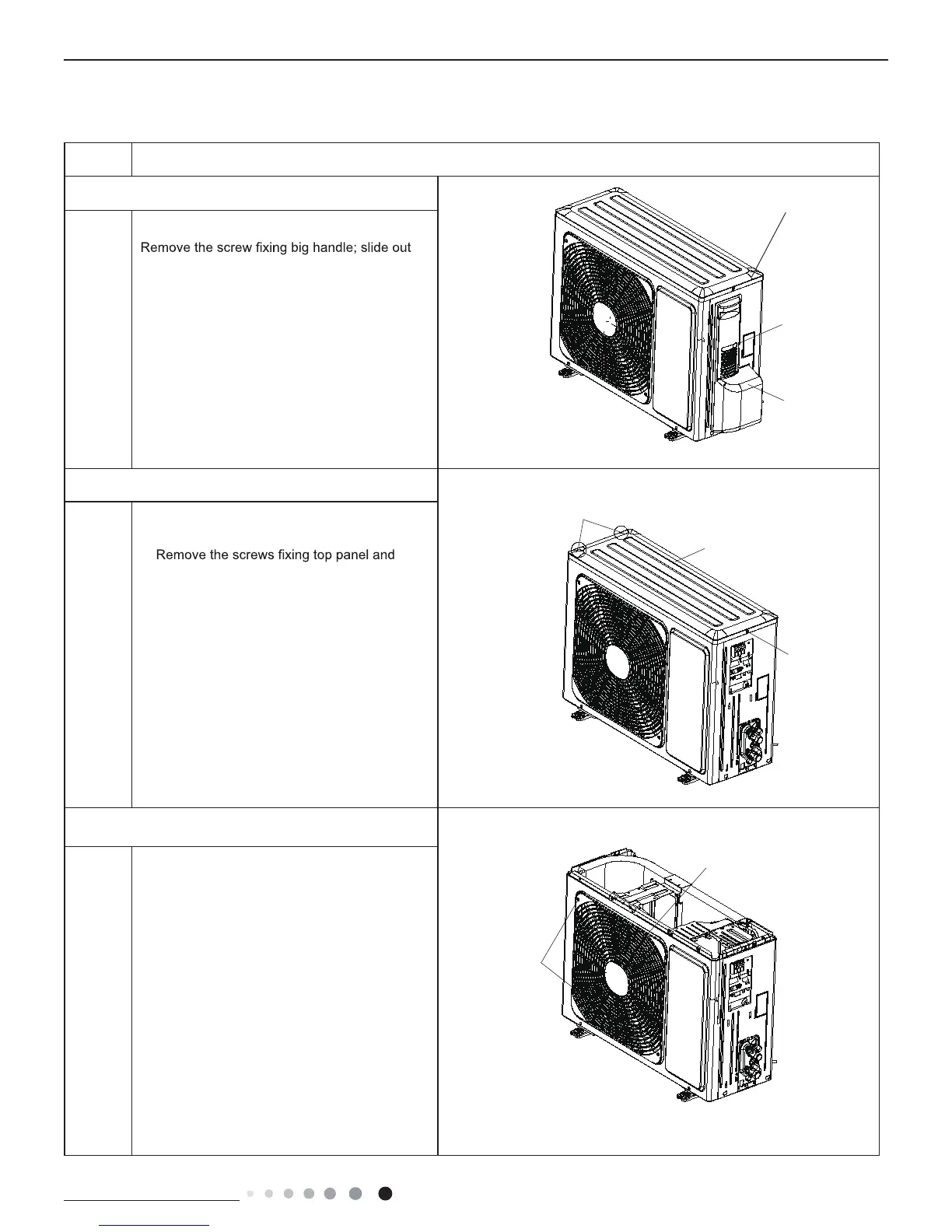

11.2 Removal Procedure of Outdoor Unit
2. Remove top panel
1. Remove big handle
L4VO32-09
Top panel
Right side plate
Big handle
Screw
Screws
Screw
the big handle upwards to make the clasp of
big handle separate from the groove of right
side plate, and then remove the big handle.
then remove the top panel.
ProcedureStep
Screws
Front grille
Remove connection screws between the front
grille and the front panel. Then remove the
front grille.
3. Remove front grille
