INVENTOR L4VI32-09

Technical Information
10
Service Manual
17
Technical Information
Service Manual
Indoor unit
Outdoor unit
COOLING
HEATING
4-Way valve
Discharge
Suction
Heat
exchanger
(evaporator)
Heat
exchanger
(condenser)
Valve
Valve
Liquid pipe
side
Gas pipe
side
Strainer
Strainer
Capillary
Accumlator
Compressor

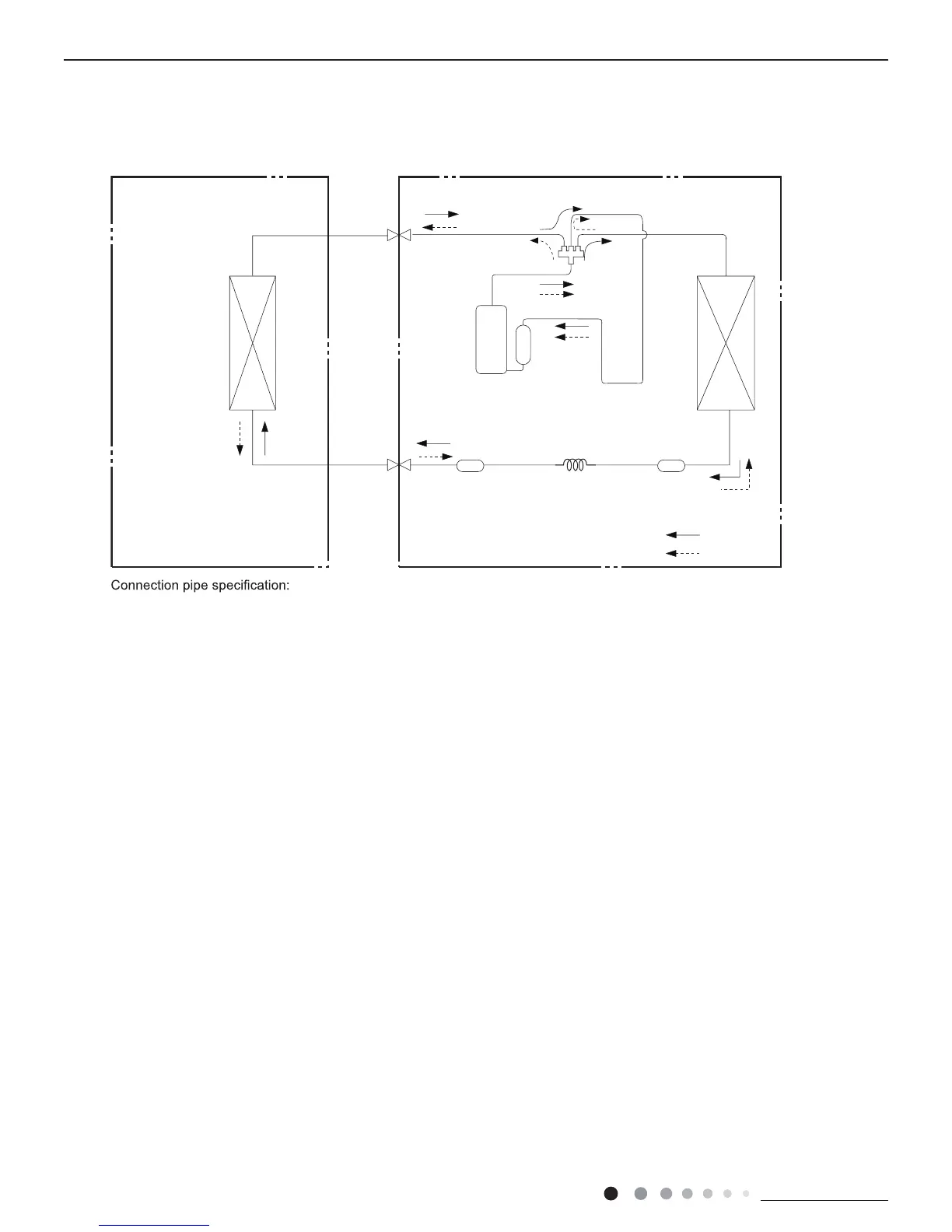

4. Refrigerant System Diagram
Liquid pipe:1/4" (6mm)
Gas pipe:3/8" (9.52mm)
09/12K
