No Name
1
Interface of communication wire for
indoor unit and outdoor unit
2 Interface of live wire
3
Interface of health function neutral
wire
4 Interface of neutral wire
5 Interface of fan
6 Interface of health function live wire
7 Jumper cap
8 Auto button
9 Up&down swing interface
10 Feedback interface of indoor unit
11 left&right swing interface
12 Interface of wi
13 Interface of tube temperature sensor
14 Wired controller
15 Display interface
16 Fuse
17 Terminal for gate control function

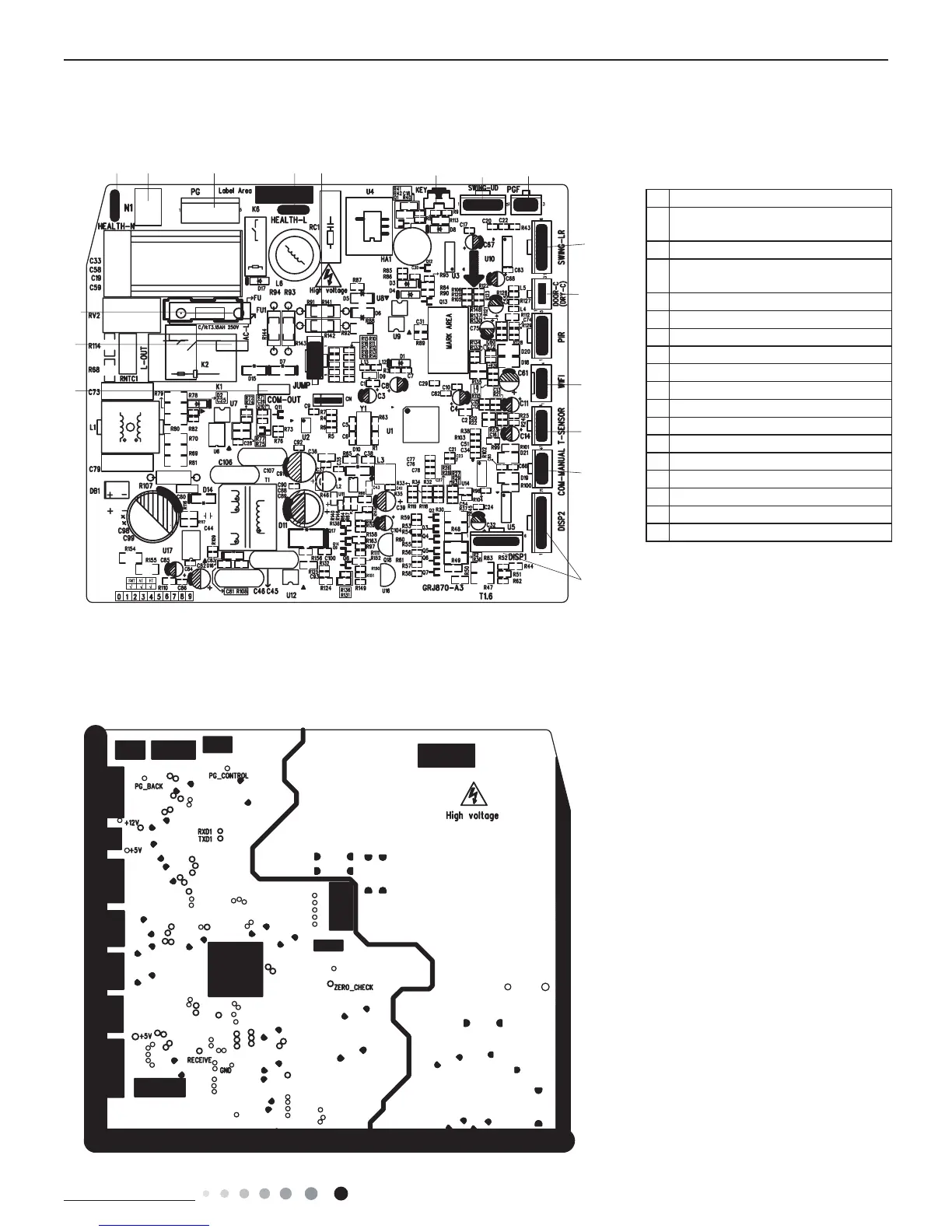

5.2 PCB Printed Diagram
Indoor Unit
● Top view
● Bottom view
1
2
16
3 4 5 6
7
8 9 10
11
12
13
14
15
17
