INVENTOR L4VI32-09

Technical Information
14
Service Manual
25
Technical Information
Service Manual

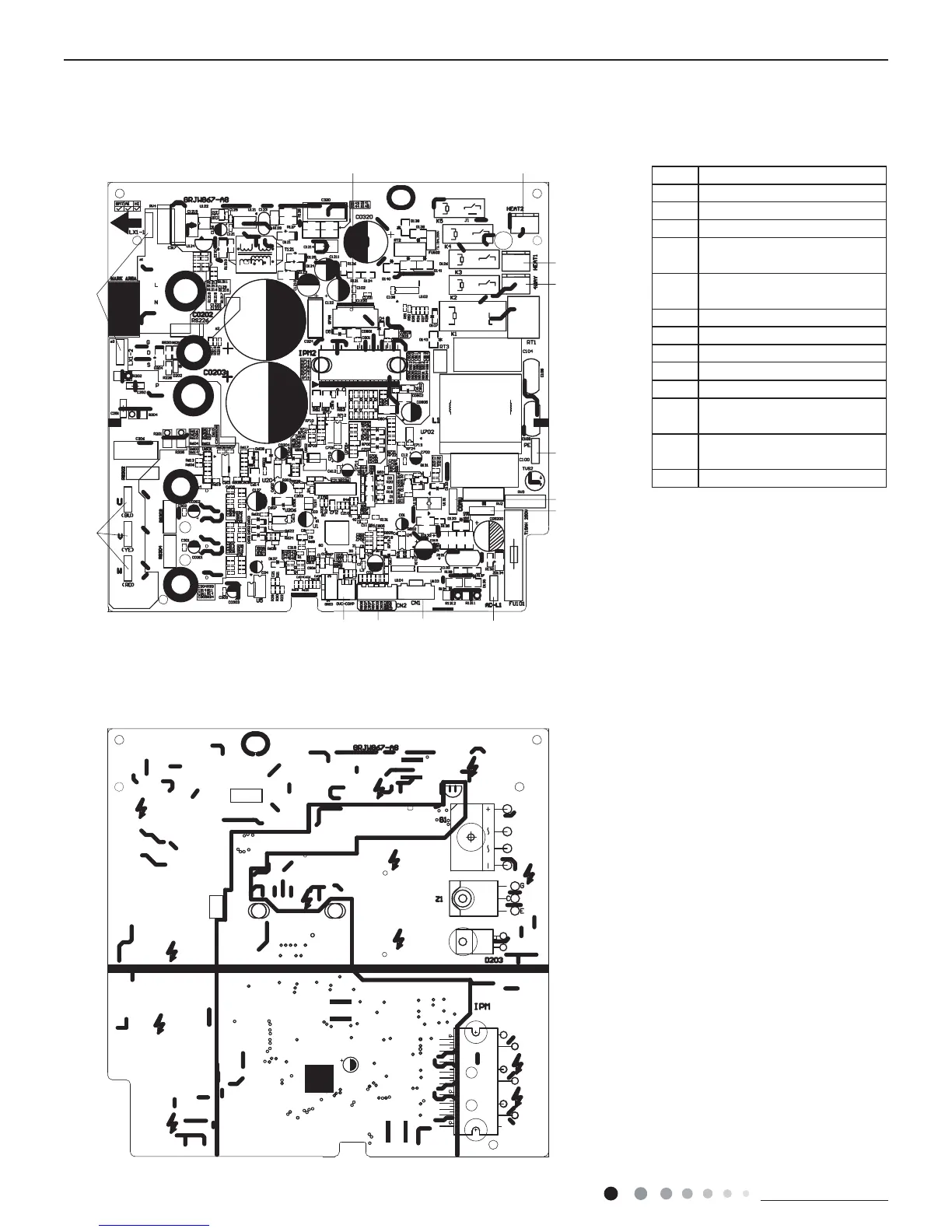

● Top view
● Bottom view
1
2
3 4
5
6
7
8
9
10111213
Outdoor Unit
No. Name
1 Compressor wiring terminal
2 Reactor wiring terminal
3 Outdoor fan wiring terminal
4
Terminal of chassis electric
heater
5
Terminal of compressor
electric heater
6 Terminal of 4-way valve
7 Grounding wire
8 Communication wire
9
Neutral wire
10 Live wire
11
Terminal of electronic
expansion valve
12
Terminal of temperature
sensor
13 Compressor overload terminal
09/12K
