Installation and Maintenance
72
Service Manual
127
Installation and Maintenance
Service Manual
Procedure
Step
Screws
Screws
Screws
Screws

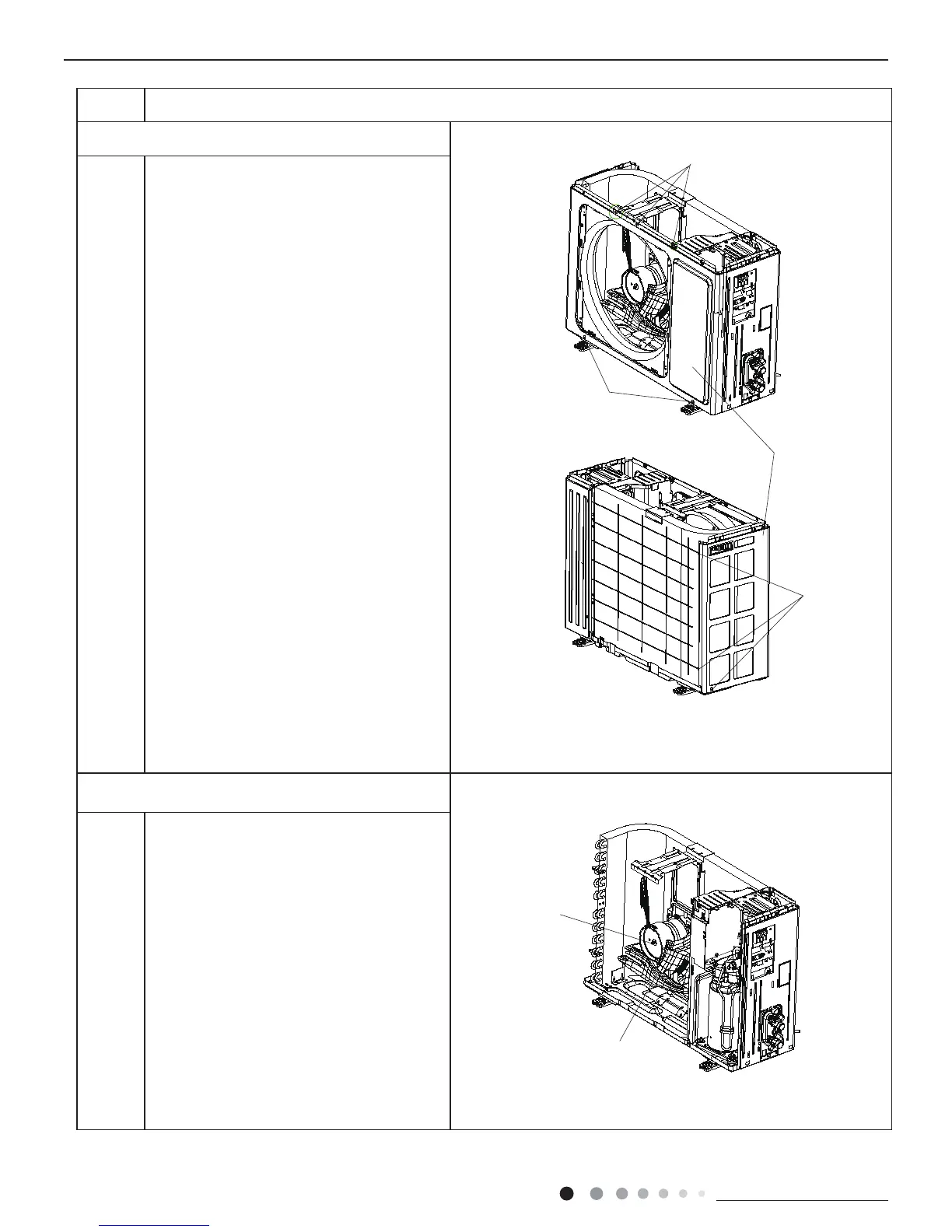

Screw off the screws that are locking the front
cover. Then take it off.
Front cover
4. Remove the front cover
5. Remove axial ow blade
Remove the nut xing axial ow blade and
then remove the axial ow blade.
Nut
Axial ow blade
