MODE I FEEL
SLEEP
QUIET
TI ME TI ME
CONFIRM
CANCEL
LOCK LIGHT RE SET
ON
OF F
TURBOHEALTH
AIRFLOW
HEALTH
FUNCTION
EXTRA
ECOSENSOR
10℃
Operation
3
2.
Press “ ” or “ ” to
set the time
Each press will increase or
decrease the time by 1 min.
If the button is kept pressed,
time will change quickly.

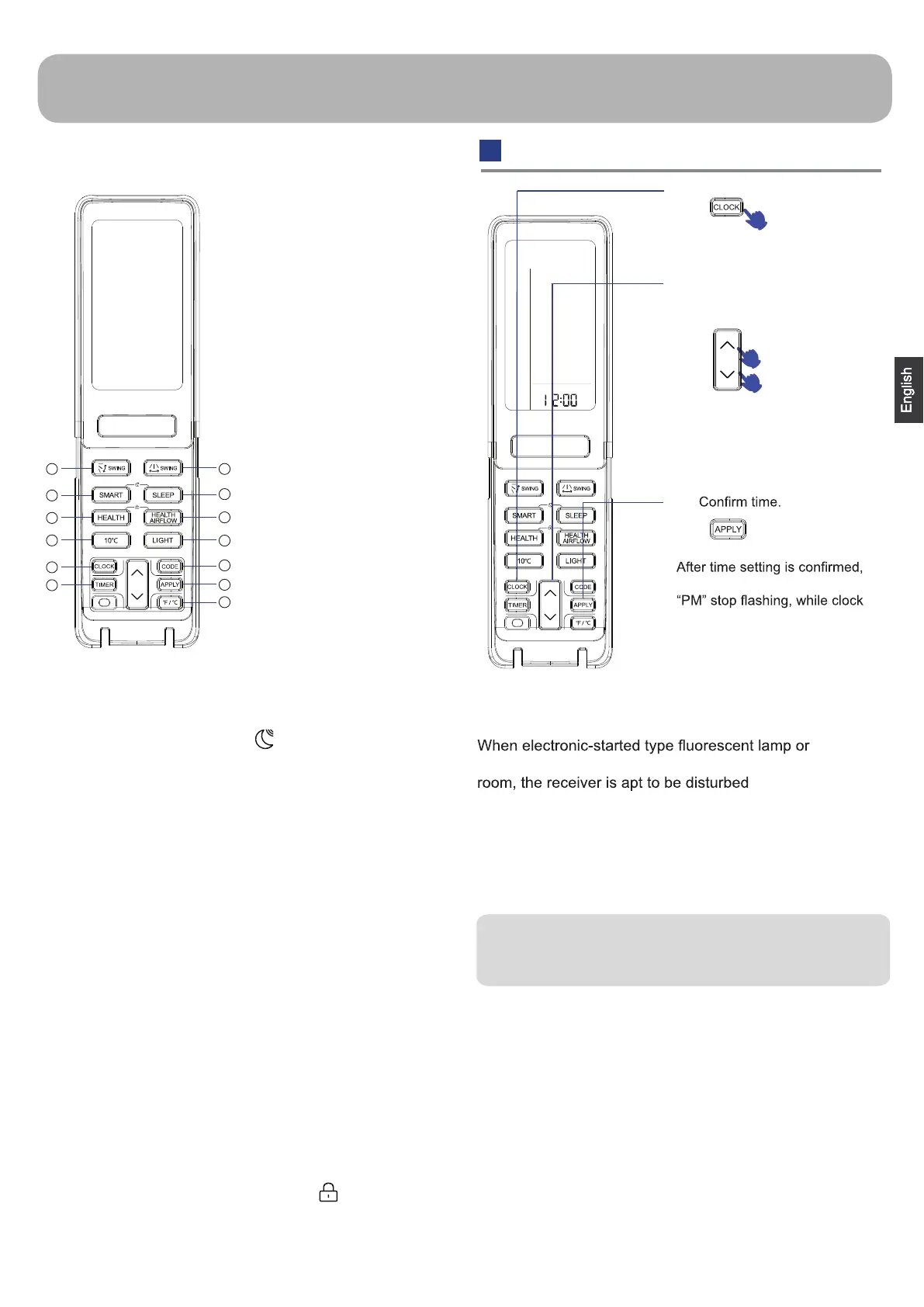

Clock set
LOCK/LIGHT/RESET/
EXTRA FUNCTION
MODE I FEEL
SLEEP
QUIET
TI ME TIM E
CONFIRM
CANCEL
LOCK LIGHT RE SET
ON
OF F
TURBOHEALTH
AIRFLOW
HEALTH
FUNCTION
EXTRA
ECOSENSOR
10℃
3.
After time setting is confirmed,
press "confirm" button,while clock
starts working
1.
Load the battery or press
the"RESET" button
Attention:
The distance between the signal transmission head and the receiv-
er hole should be within 7m without any obstacle as well. When
telephone is installed in room, the receiver is apt to be disturbed in
receiving the signals, so the distance to the indoor unit should be
shorter. Full display or unclear display during operation indicates
the batteries have been used up. Please change batteries. If the
remote controller can't run normally during operation, please re-
move the batteries and reload several minutes later.
NOTE:
Remove the batteries in case unit won't be in usage for a long
period.
4.
EXTRA FUNCTION Button
FUNCTION
EXTRA
Function:A-B yard→ºF/ºC transform
1.
LOCK Button
LOCK
It is used to lock buttons and LCD display.
2.
LIGHT Button
LIGHT
Turn on and off the indoor display. To
show only the set temperature, press
LIGHT button 10 times within 5 sec-
onds. The indoor unit will beep 3 times
when successful. To return to ambient
temperature display, press LIGHT 10
times within 5 seconds again. The default
setting of the indoor unit display is the
ambient temperature. The set temperature
will only display for a few seconds after
adjusting it with the remote.
3.
RESET Button
RESET
If the remote control is not functioning
properly, press this button to reset the
remote.
CONFIRM
CANCEL
RESET
2
Parts and Functions
Outdoor Unit
Indoor Unit Remote controller
OUTLET
INLET
CONNECTING PIPING AND ELECTRICAL WIRING
DRAIN HOSE
Please note the above picture is for reference only.
This may very depending on the unit purchased.
NOTE:
1. Humidity display is unavailable on some models.
2. If the model you buy has a Wi-Fi function, press the“ON/OFF”
button for 5s to emit the Wi-Fi binding signal. Once in the
binding mode, the APP will show how to bind.
NOTE:
Actual inlet grille may vary from the one shown in the manual
depending on the product purchased.
Inlet
Display board
(inside)
Inlet grille
Outlet
ON/OFF
Button
Air Purifying Filter
Vertical blade
(inside)
(adjust left and
right air flow)
Horizontal flap
(adjust up and down air flow
Don't adjust it manually)
Display board
2
3
1
Signal receiver hole
Ambient temp.display
When receiving the remote
control signal, display the set
temperature.
2
3
Operation mode indicator
(lights up when the compressor is on.)
4
4 Wi-Fi
MODE I FEEL
SLEEP
QUIET
TI ME TI ME
CONFIRM
CANCEL
LOCK LIGHT RESE T
ON
OF F
TURBOHEALTH
AIRFLOW
HEALTH
FUNCTION
EXTRA
10℃
ECOSENSOR
4
1. Wi-Fi display
2. Operation mode display
3. LOCK display
4. Display of each function
status
5. TIMER ON display
TIMER OFF display
CLOCK display
6. SWING display
Swing up/down display
Swing left/right display
7. FAN SPEED display
8. Humidity display
9. TEMP display
1. QUIET button
2. I FEEL button
3. MODE button
4. HEALTH button
5. TEMP+/- button
6. SWING left/right button
7. ECOSENSOR button
8. 10 ºC button
special heating set function:
10 degree heating main-
taining (valuable for RS)
9. TIME ON button
10. TIME OFF button
11. LOCK button
12. LIGHT button
13. RESET button
14. CONFIRM/CANCEL button
15. EXTRA FUNCTION button
16. SWING up/down button
17. FAN button
18. SLEEP button
19. TURBO button
20. HEALTH AIRFLOW button
21. ON/OFF button
