Invicta BLz Series User Manual
5
of 1
of 1 rating
40 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
Page
10
VIBRA
TOR TERMINA
L BOX

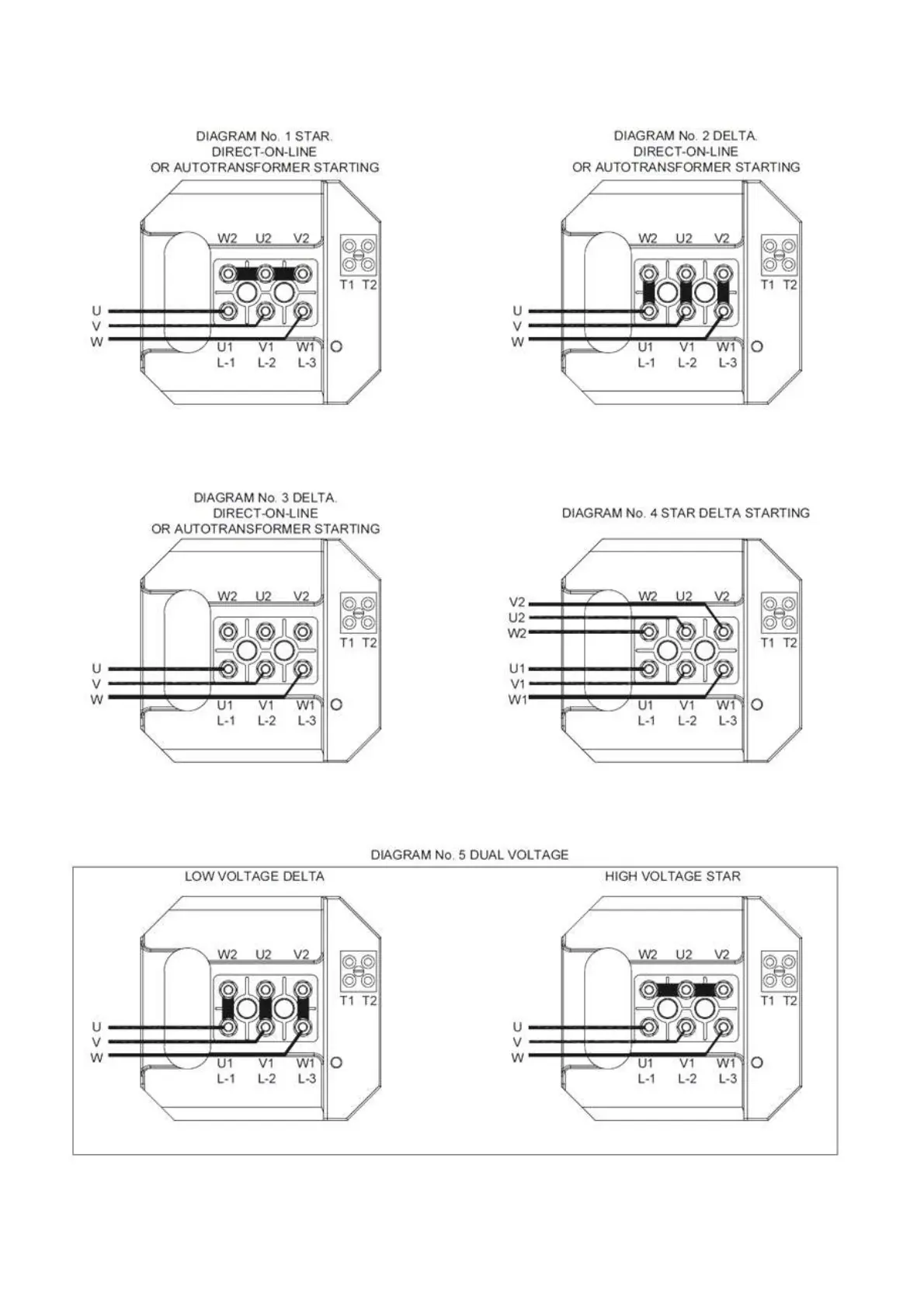

field connection 3
Phase, 50/60 Hertz
The installer is directed to the diagram number engraved on the nameplate for the a
pprop
riate field connection
diagram (below).
Refer to nameplate
f
or re
quired connec
tion.
L1
- L3 are line connec
tions.
T1 & T2 are ther
mistor connec
t
ions.
10
12
Table of Contents
Operational Conditions
2
Hazardous Area Classification
2
Full Power Test Data and Temperature Ratings
5
Bearing Replacement – Important Notice
7
Installation and Maintenance
9
Receipt and Storage
9
Installation Guidance Notes
9
Electrical
10
Voltage Range
10
Vibrator Terminal Box
11
Full Load and Starting Currents in Amps
12
2 Pole - 2880 Rpm
12
4 Pole - 1440 Rpm
12
6 Pole - 960 Rpm
12
2 Pole - 3456 Rpm
13
4 Pole - 1728 Rpm
13
6 Pole - 1152 Rpm
13
8 Pole - 864 Rpm
13
Bl03 Torque Curves
14
Bl05-15 Torque Curves
15
Bl20-22 Torque Curves
16
Bl24/25 Torque Curves
17
Bl30 Torque Curves (2 & 4 Pole)
18
Bl30 6 Pole, Bl30-40 8 Pole Torque Curves
19
Bl40 Torque Curves (2 & 4 Pole)
20
Bl40 Torque Curves (6 & 8 Pole)
21
Bl45 Torque Curves (2 & 4 Pole)
22
Bl45 Torque Curves (6 & 8 Pole)
23
Bl50 Torque Curves (4 Pole)
24
Bl50 Torque Curves (6 & 8 Pole)
25
Bl60 Torque Curves (4 & 6 Pole)
26
Bl60-125/6, Bl75 6 Pole & Bl60 8 Pole Torque Curves
27
Bl75 Torque Curves (4 & 8 Pole)
28
Bl80 Torque Curves (6 & 8 Pole)
29
Out of Balance Weight Adjustment
30
Use of Vibrators with Variable Speed Controls
31
Maintenance
31
Re-Lubrication
31
Assembly and Dismantling
32
Removal and Fitting of Bearings:
32
Greasing Instructions – Relubrication Chart – Per Bearing
32
Bearing Types
33
Disposal of Vibrators
33
Arrangement of Standard L Series Vibrators
34
Breakdown of Major Components for Spares
34
SECTION through Blz78/80
34
SECTION through Blz30, - Blz 75/77
34
Warning Nameplate Psn 2255
35
Example of Standard Vibrator Name Plate
36
Vibrator Noise Levels
38
Fault Finding – Vibrators
39
Vibrator Does Not Start or Fails to Run
39
Vibratory Current Exceeds Rated Full Load Current or Overheats
39
Vibrator Noisy
39
