Page 33

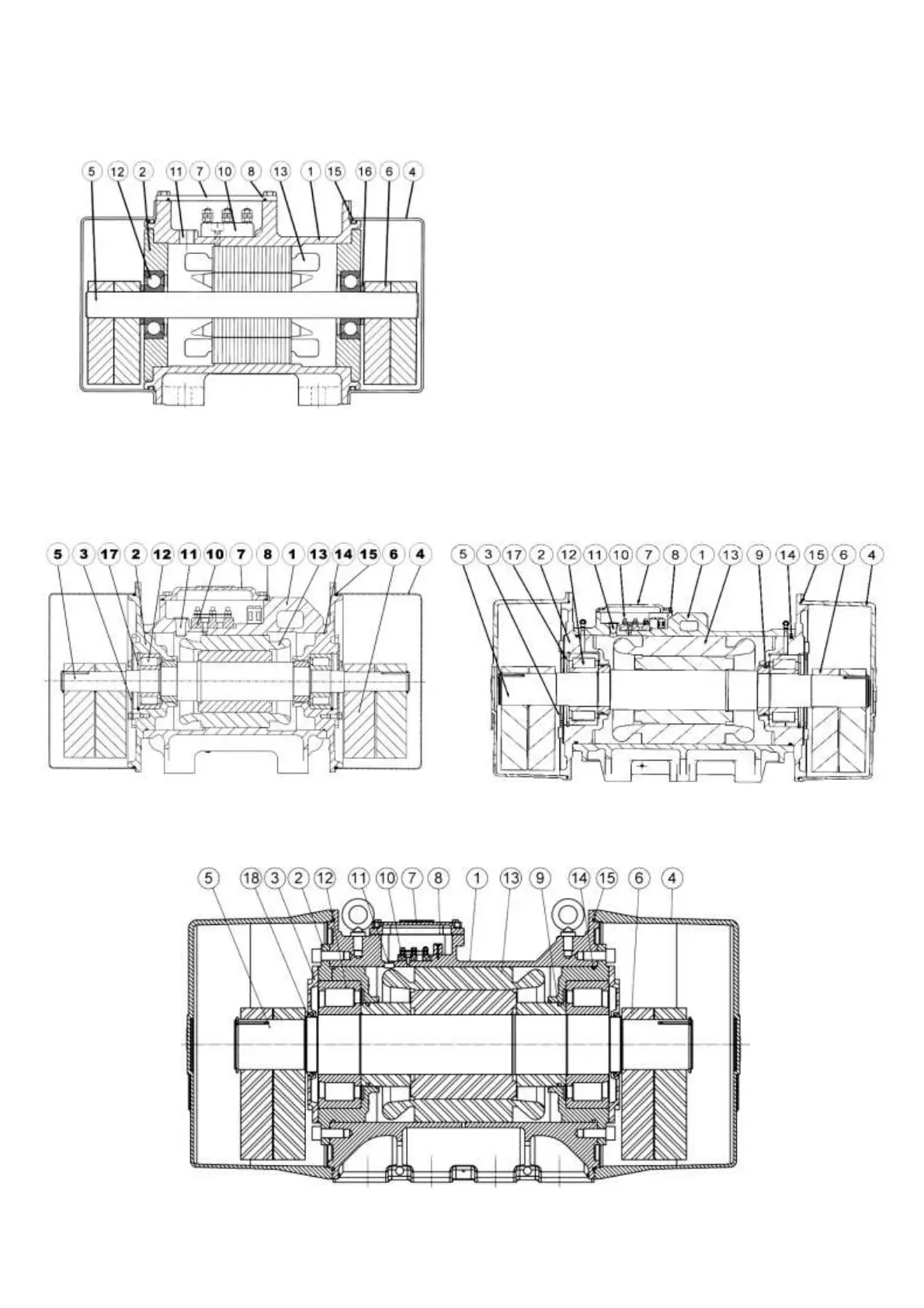

ARRANGEMENT OF STANDARD L SERIES VIBRATORS SHOWING
BREAKDOWN OF MAJOR COMPONENTS FOR SPARES
SECTION THROUGH BLz 03 - BLz 22 PLUS
BLz 24/25 -8/2, -7.5/4, -4/6
SECTION THROUGH BLz 24 & 25 EXCLUDING
BLz 24/25, -8/2, -7.5/4, -4/6
Quote vibrator type, serial number, voltage, together with parts description when ordering spares.
1 Stator Frame 1
2 Bearing Housing 2
3 Outer Grease Retainer 2
4 End Cover 2
5 Rotor Shaft Assy 1
6 O/B Weight Assy 1 SET
7 Terminal Box Lid 1
8 Sealing Ring (Terminal Box) 1
8 Gasket (Terminal Box) 1
9 Grease Retaining Seal 2
10 Terminal Block 1
11 Rubber Conduit Bush 1
12 Bearing 2
13 Stator Unit 3 Phase 1
14 Sealing Ring (Bearing Hsg) 2
15 Sealing Ring (End Cover) 2
16 Washer (BL 05) 2
17 Circlip 2
18 V Ring Seal (BL 78/80) 2
NOTE, Grease nipples not fitted to BLz03 to 25 models
SECTION THROUGH BLz30, - BLz 75/77
All Hex-head screws are grade 8.8 and socket screws grade 12.9
