3) in the Schematic diagram of the operation，Circle with the number of steps means a one-to-one
relationship in explaining the steps and the schematic diagram of the serial number of the serial
number for
Example ： “①”or “1）”；in “①”and“1）”are Consistent，both mean first step or No. 1
Rear instruction

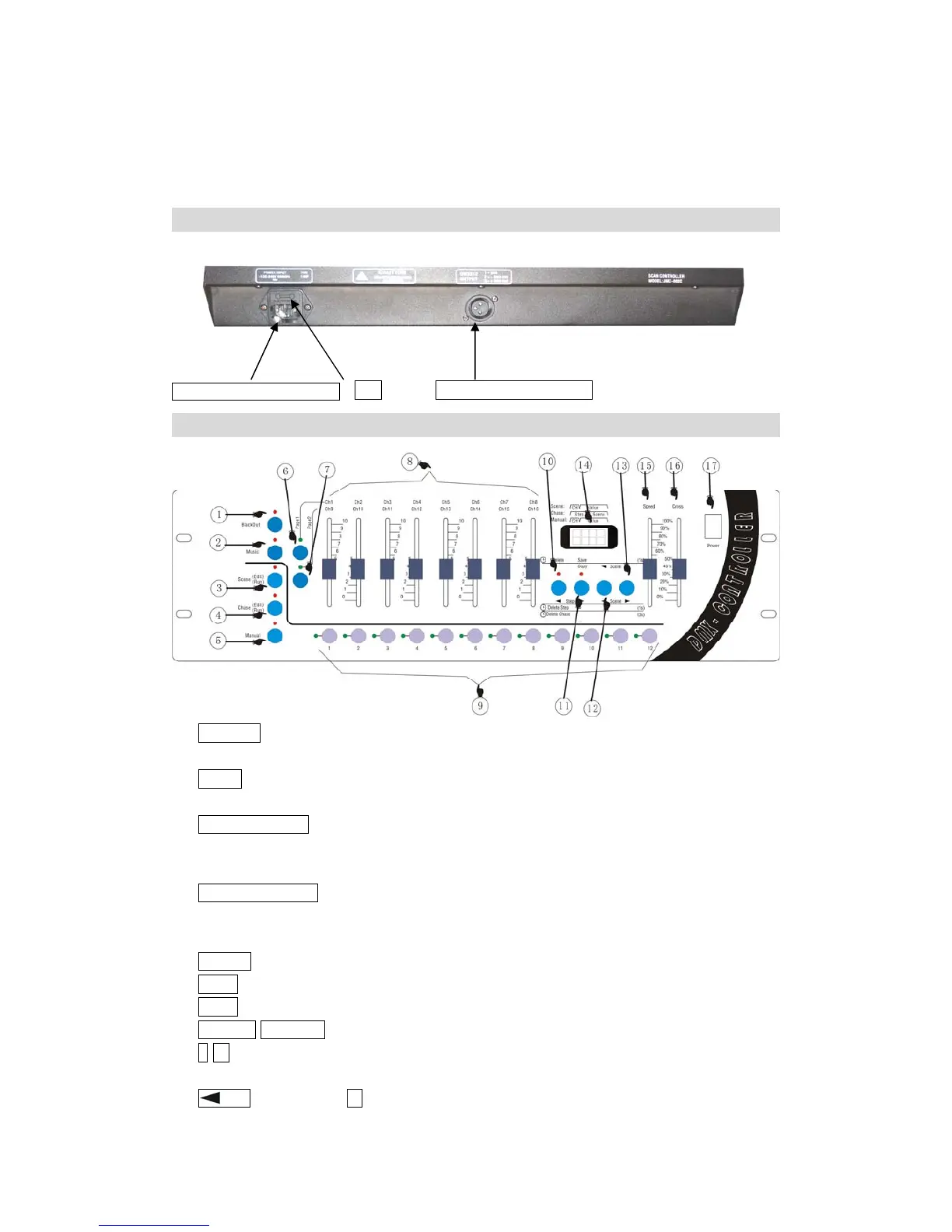

Power input socket fuse DMX signal output port
Panel instruction
1) Blackout Output black keys, pressing the button make light
bright . when the control output
value of Platform, all channels to 0, resulting in black scenes。
2) Music Voice-activated key ，pressing the button make light
bright，Running the program is
triggered by the built-in microphone to run。
3) Scene Edit / Run Scene Editor / run key, if pressing time is more than 1 seconds, the indicator
light flashes into the scene editor state; then if pressing for 1 second again will withdrawn
from editing the state to the running state, Bright light is always on。
4) Chase Edit / Run walking light program editor / run key, if pressing time is more than 1
seconds, the indicator light flashes into the scene editor state; then if pressing for 1 second
again will withdrawn from editing the state to the running state, Bright light is always on。
5) Manual Manual control key。
6) Page1 Access keys page 1。
7) Page2 Access keys page 2。
8) Ch1/Ch9-Ch8/Ch16 Channel fader（page one 1-8 / page two 9-16）。
9) 1-12 The number keys 1-12（Used to select the No. field, and follow procedures and signal
lights to choose）。
10)
Step key is called as A key，（run）Operation to remove lantern; (edit scenes) deleted scenes;
