6.7 WiFi
Connection(optional)
Inverter provides a WiFi port which can collect data from inverter and
transmit it to monitoring-website by WiFi.(Purchase the product from
supplier if needed)

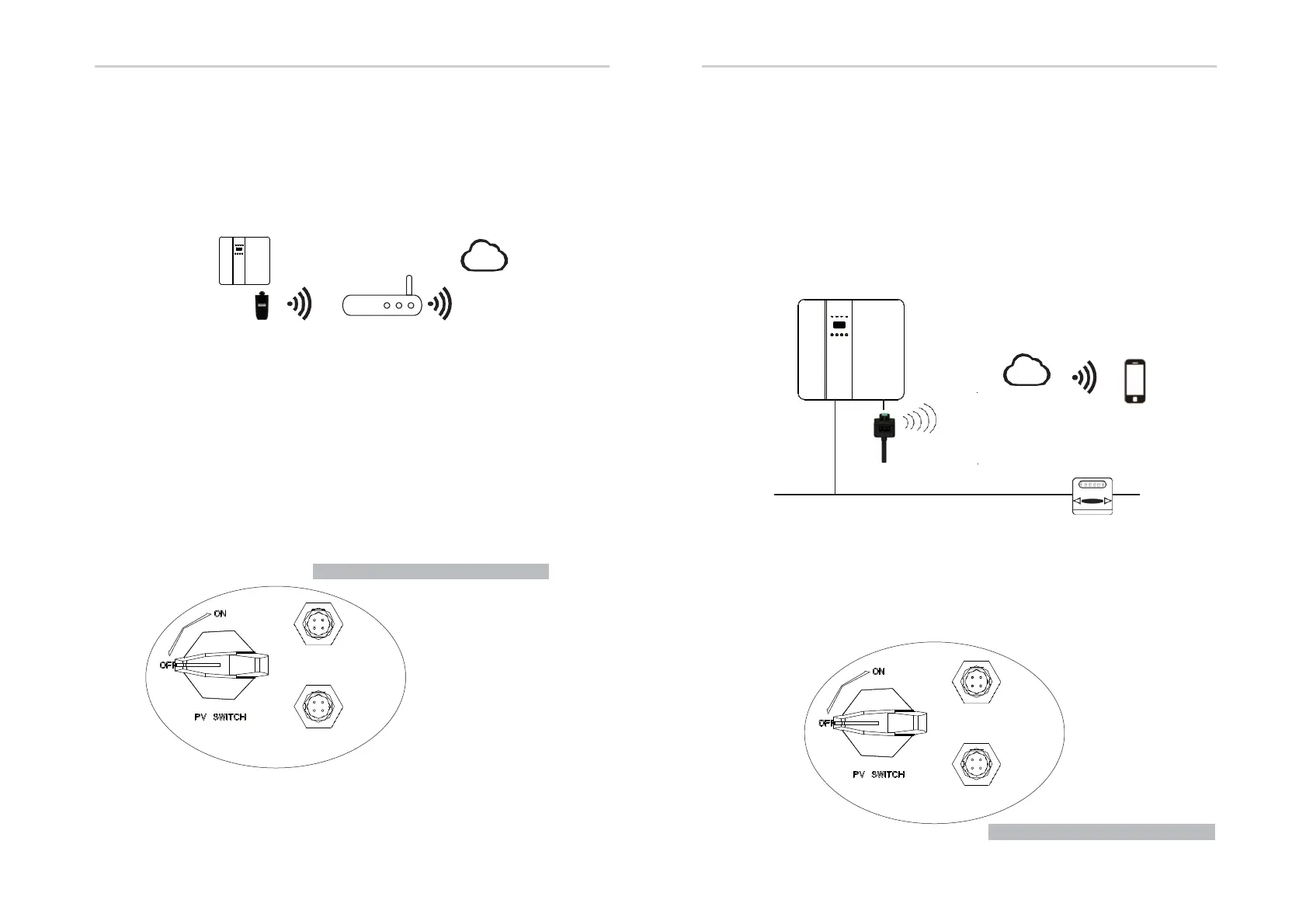

Diagram
Could
Router
WiFi Connection Steps:
Step1. Plug Wifi into "WiFi" port at the bottom of the
inverter. Step2. Build the connection between the
inverter and router.
Step3. Create a user account online.( Please check the WiFi user manual
for more details).
6.8 GPRS
Connection(optional)
BD Hybrid inverter provides a GPRS(radio frequency) interface which
control the switch time of a designated load via an exteral Smart Plug
(purchase the product from supplier if needed.) so that the load mostly
consumes PV energy and incurs the lowest-possible energy costs during
operation.
GPRS Connection Steps:
Please refer to the Smart Plug user manual for detailed connection
steps.
Grid
Meter
AC
emitte
r
Diagram
Electrical Connection Electrical Connection
Could
com
com
36 37
Please connect to the port above
Please connect to the port below
