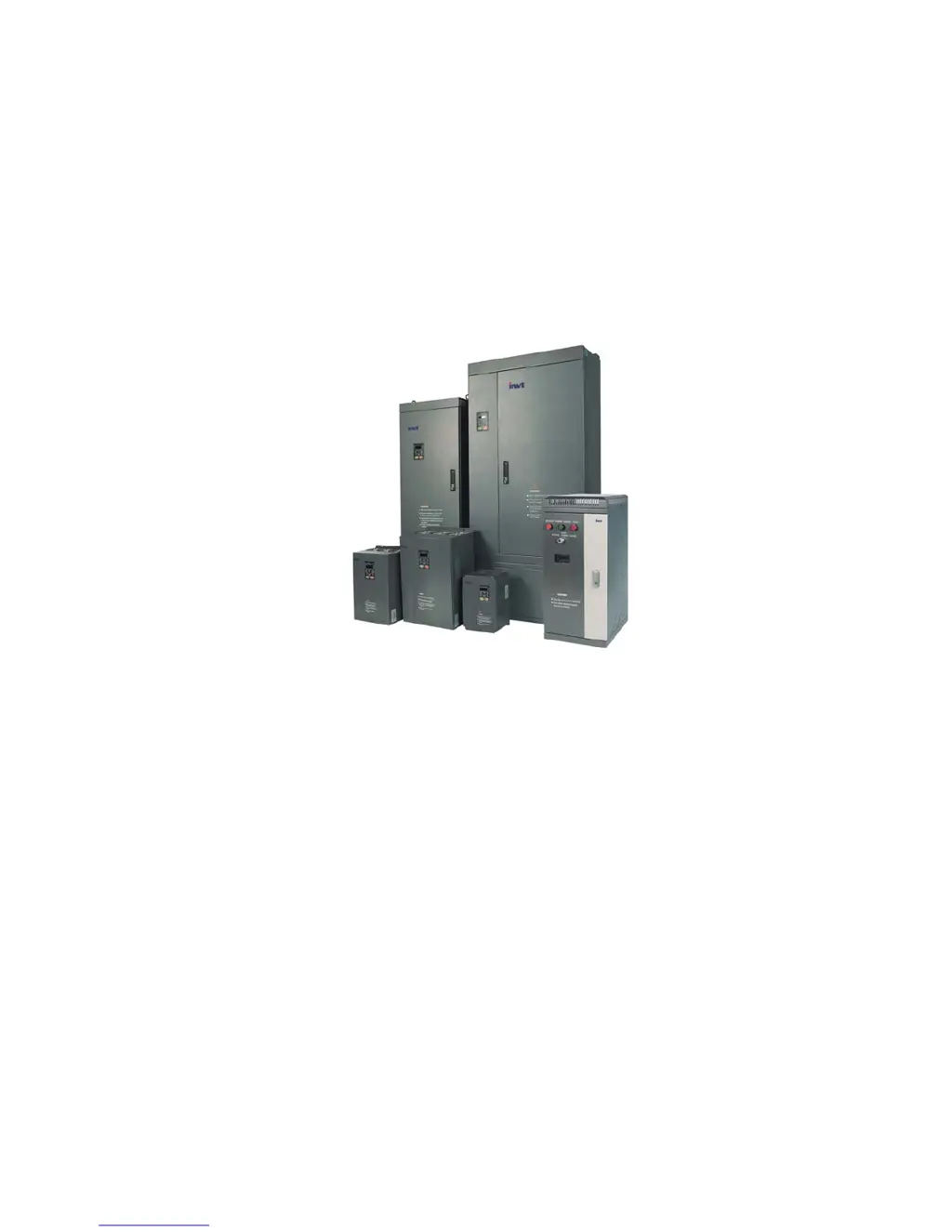

CHE Series Sensorless Vector
Control Inverter
Operation Manual
z Thank you very much for your buying CHE series sensorless vector control
inverter.
z
Before use, please read this manual thoroughly to ensure proper usage. Keep this
manual at an easily accessible place so that can refer anytime as necessary.

Table of Contents

Questions and Answers

  • M
    Melissa BryantAug 20, 2025
    What to do if there is over-current during acceleration in INVT DC Drives?
    • M
      Mr. James PettyAug 20, 2025
      If the INVT DC Drive displays an over-current error during acceleration, it could be due to several reasons. There might be a short-circuit or ground fault at the inverter output, the load could be too heavy, the acceleration/deceleration time might be too short, the V/F curve might be unsuitable, or there could be a sudden change in load. To resolve this: * Inspect the motor for damage, worn insulation, or cable damage. * Increase the acceleration/deceleration time or select an inverter with a larger capacity. * Check and adjust the V/F curve, and also check the load.
  • K
    Kimberly BentonAug 22, 2025
    Why is my INVT CHE100-055G/075P-4 DC Drives showing inverter overload?
    • G
      grichAug 22, 2025
      If your INVT DC Drive displays an inverter overload, it could be due to a heavy load, short acceleration/deceleration time, an unsuitable V/F curve, or the inverter's capacity being too small. Here's how to address it: * Increase the acceleration/deceleration time or choose an inverter with a larger capacity. * Check and adjust the V/F curve. * Consider selecting an inverter with a higher capacity.
  • M
    Michelle MoyerAug 25, 2025
    How to fix IGBT Ph-U fault in INVT CHE100-055G/075P-4 DC Drives?
    • K
      kimberlyramosAug 25, 2025
      If the INVT DC Drive shows an IGBT Ph-U fault, it could be due to several reasons: the acceleration/deceleration time being too short, a fault in the IGBT module itself, malfunction caused by interference, or improper grounding. To address this: * Increase the acceleration/deceleration time. * Inspect external equipment and eliminate any interference.
  • M
    mreedAug 26, 2025
    What causes over-voltage during acceleration in INVT CHE100-055G/075P-4 DC Drives?
    • A
      Alexander SanchezAug 26, 2025
      If the INVT DC Drive shows an over-voltage error during acceleration, it could be due to a short deceleration time causing excessive regenerative energy from the motor, or the input voltage being too high. To fix this, you can: * Increase the deceleration time or connect a braking resistor. * Decrease the input voltage to stay within the specified range.
  • R
    Ruth WoodAug 28, 2025
    Why is my INVT CHE100-055G/075P-4 DC Drives showing motor overload?
    • C
      Corey MasonAug 28, 2025
      If the INVT DC Drive indicates a motor overload, it may be because the motor is driving a heavy load at low speed for an extended period, the V/F curve is not properly set, the motor’s overload protection threshold (PB.01) is incorrect, or there is a sudden load change. To resolve this: * Select a variable frequency motor. * Check and adjust the V/F curve. * Check and adjust PB.01. * Check the load.
  • D
    David CantuAug 29, 2025
    What causes DC bus Under-voltage in INVT DC Drives?
    • A
      Andrew ZunigaAug 29, 2025
      If the INVT DC Drive displays a DC bus under-voltage error, it could be due to an open phase in the power supply, a momentary power loss, loose wiring terminals for the input power supply, or large voltage fluctuations in the power supply. Inspect the input power supply or wiring.
  • L
    Lindsay JohnsonAug 31, 2025
    What to do if INVT CHE100-055G/075P-4 shows input phase failure?
    • K
      Karen HansenAug 31, 2025
      If the INVT DC Drive shows an input phase failure, it could be due to an open phase in the power supply, a momentary power loss, loose wiring terminals for the input power supply, large voltage fluctuations in the power supply, or poor voltage balance between phases. Check the wiring, installation, and power supply.
  • L
    Laurie FrazierSep 2, 2025
    How to resolve rectify overheat in INVT CHE100-055G/075P-4?
    • C
      Caleb ArellanoSep 2, 2025
      If the INVT DC Drive displays a rectify overheat error, it could be due to high ambient temperature, proximity to a heat source, cooling fan issues (stopped or damaged), obstructed ventilation, or a high carrier frequency. To solve this: 1. Install a cooling unit. 2. Remove any nearby heat sources. 3. Replace the cooling fan. 4. Clear any obstructions in the ventilation channel. 5. Decrease the carrier frequency.
  • N
    Nicole FarrellSep 4, 2025
    What causes output phase failure in INVT DC Drives?
    • A
      Anne ColemanSep 4, 2025
      If the INVT DC Drive indicates an output phase failure, it could be due to a broken wire in the output cable, a broken wire in the motor winding, or loose output terminals. Check the wiring and installation.
  • T
    Tracy CopelandSep 6, 2025
    How to troubleshoot communication fault in INVT CHE100-055G/075P-4 DC Drives?
    • S
      susan54Sep 6, 2025
      If the INVT DC Drive displays a communication fault, it may be due to an incorrect baud rate setting, receiving incorrect data, or a prolonged interruption in communication. To solve this, set the proper baud rate and check the communication devices and signals.

Summary

Safety Precautions

General Safety Warnings

Lists critical safety warnings regarding electrical shock and proper handling.

Installation

Installation Guidelines & Safety

Covers safety precautions, environmental requirements, and installation space.

Wiring

Wiring Safety & Precautions

Lists critical safety guidelines and general precautions for inverter wiring.

Detailed Function Description

P0 Group: Basic Function

P1 Group: Start and Stop Control

P2 Group: Motor Parameters

P3 Group: Vector Control

Covers settings for vector control mode and speed response.

P4 Group: V;F Control

Details parameters for V/F control mode.

P9 Group: PID Control

PB Group: Protection Function

Details various protective functions and their settings.

PC Group: Serial Communication

Explains serial communication protocols and settings for serial interfaces.

Trouble Shooting

Fault Identification and Resolution

Lists fault codes, reasons, solutions, and common operational issues.

Maintenance

Maintenance Guidelines & Precautions

Covers safety, daily, periodic maintenance, and component replacement.

List of Function Parameters

Parameter Group Listings (P0-PE)

Communication Protocol

Protocol Details and Examples

INVT CHE100-055G/075P-4 Specifications

General IconGeneral
ModelCHE100-055G/075P-4
Output Current110A
Overload Capacity150% for 60 seconds
Cooling MethodForced air cooling
Enclosure RatingIP20
Output Power55kW
Control MethodV/f control
Protection FeaturesOvercurrent, Overvoltage, Undervoltage, Overheat
Communication InterfaceModbus RTU
Operating Temperature-10°C to +50°C
Storage Temperature-20°C to 60°C
Humidity5% to 95% (non-condensing)
AltitudeUp to 1000m
Input Voltage380V (-15%) ~ 440V (+10%), 3-phase
