Operational manual for dynamic braking unit
-9-

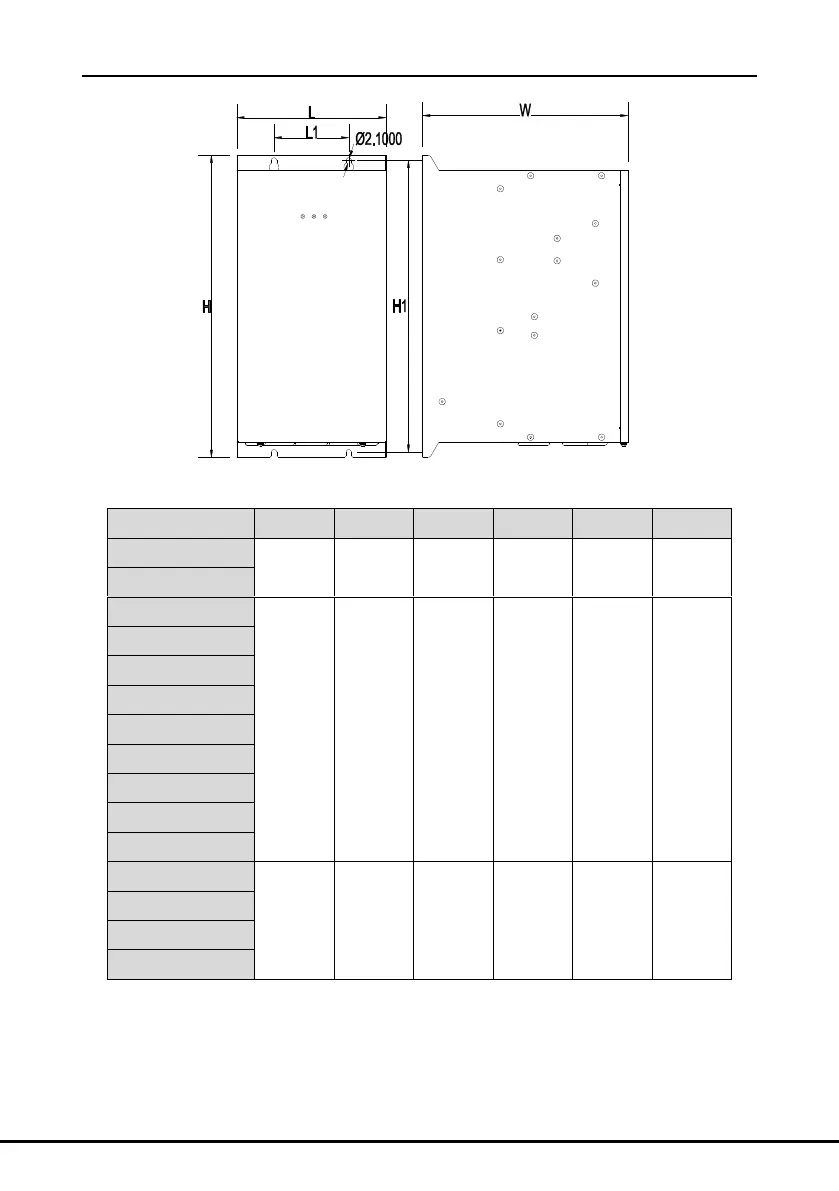

Figure 3 Dimensions of 320A-400A DBU
Model
W(mm)
W1(mm)
W2(mm)
D(mm)
H (mm)
H1(mm)
DBU100H-060-2
130
65
65
163
260
246
DBU100H-060-4
DBU100H-110-2
150
75
100
260
340
326
DBU100H-110-4
DBU100H-110-6
DBU100H-160-2
DBU100H-160-4
DBU100H-160-6
DBU100H-220-2
DBU100H-220-4
DBU100H-220-6
DBU100H-320-4
200
100
100
275
405
391
DBU100H-320-6
DBU100H-400-4
DBU100H-400-6
