INVT DBU100H Series User Manual

Operational manual for dynamic braking unit
-8-
3.3 Installation mode
DBU100H can be installed in wall (for all frame sizes)

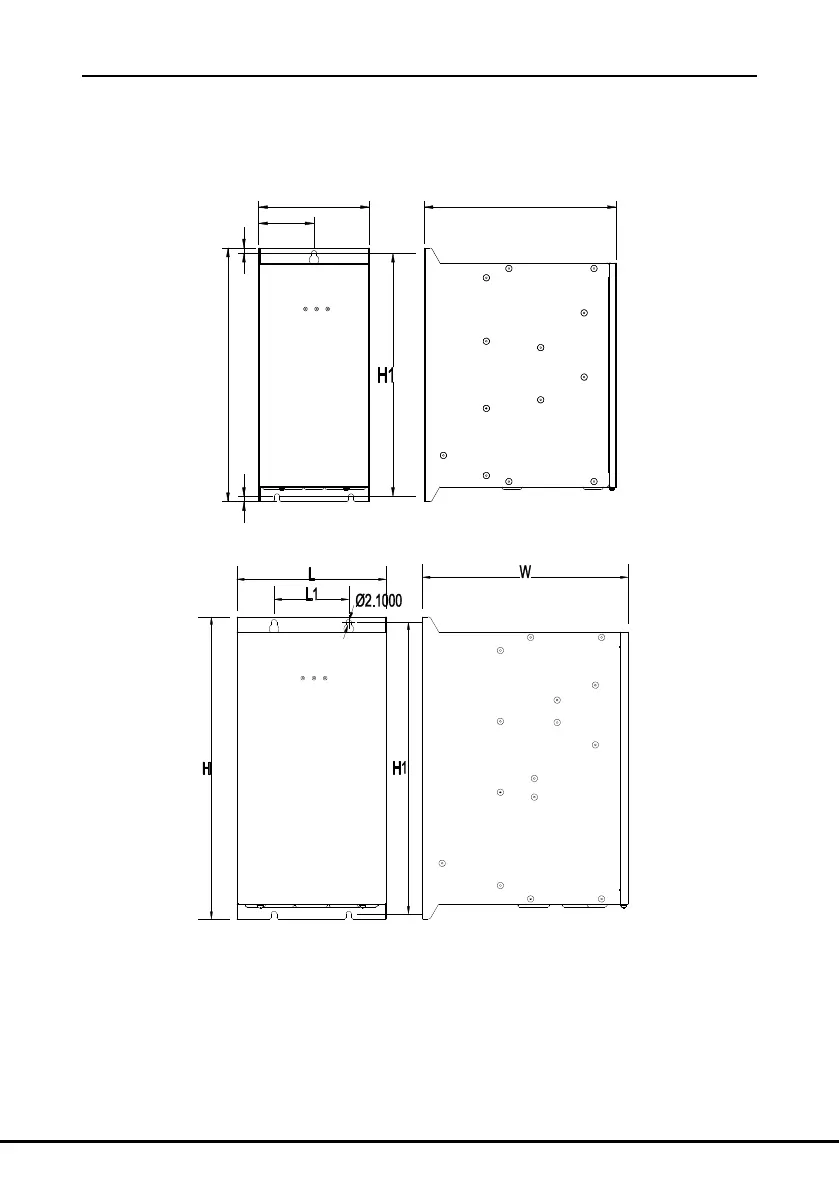

3.4 External dimensions
7
7
H
L1
L W
Figure 1 Dimensions of 60A DBU
Figure 2 Dimensions of 110A-220A DBU
8
