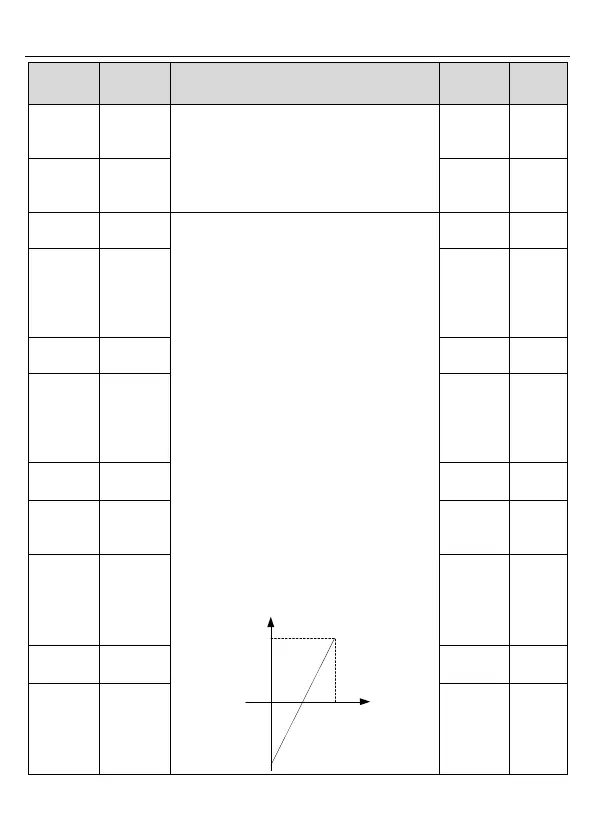

INVT GD10-2R2G-4-B User Manual

Goodrive10 Series Mini VFD Function parameters
-46-
Function
code
Name
Description
Default
Modify
P05.22
S5
switch-on
delay
0.000s
○
P05.23
S5
switch-off
delay
0.000s
○
P05.32
Lower limit
of AI1
AI1 is set by the keypad potentiometer, AI2 is
set by control terminal AI.
The function code defines the relationship
between the analog input voltage and its
corresponding set value. If the analog input
voltage beyond the set minimum or maximum
input value, the VFD will count at the
minimum or maximum one.
When the analog input is the current input, the
corresponding voltage of 0–20 mA is 0–10V.
In different cases, the corresponding rated
value of 100.0% is different. See the
application for detailed information.
Input filter time: this parameter is used to
adjust the sensitivity of the analog input.
Increasing the value properly can enhance
the anti-interference of the analog, but
weaken the sensitivity of the analog input
The following figure illustrates different
applications:
The following figure illustrates different
applications:
-100%
100%
Corresponding
setting
AI
10V
20mA
0
AI1/AI2
0.00V
○
P05.33
Correspon
ding
setting of
the lower
limit of AI1
0.0%
○
P05.34
Upper limit
of AI1
10.00V
○
P05.35
Correspon
ding
setting of
the upper
limit of AI1
100.0%
○
P05.36
AI1 input
filter time
0.100s
○
P05.37
Lower limit
of
AI2
0.00V
○
P05.38
Correspon
ding
setting of
the lower
limit of AI2
0.0%
○
P05.39
Upper limit
of AI2
10.00V
○
P05.40
Correspon
ding
setting of
the upper
limit of AI2
100.0%
○
