INVT GD20-0R4G-S2

Goodrive20 inverters Function Parameters
35
Function
code
Name Detailed instruction of parameters
Default
value
Modify

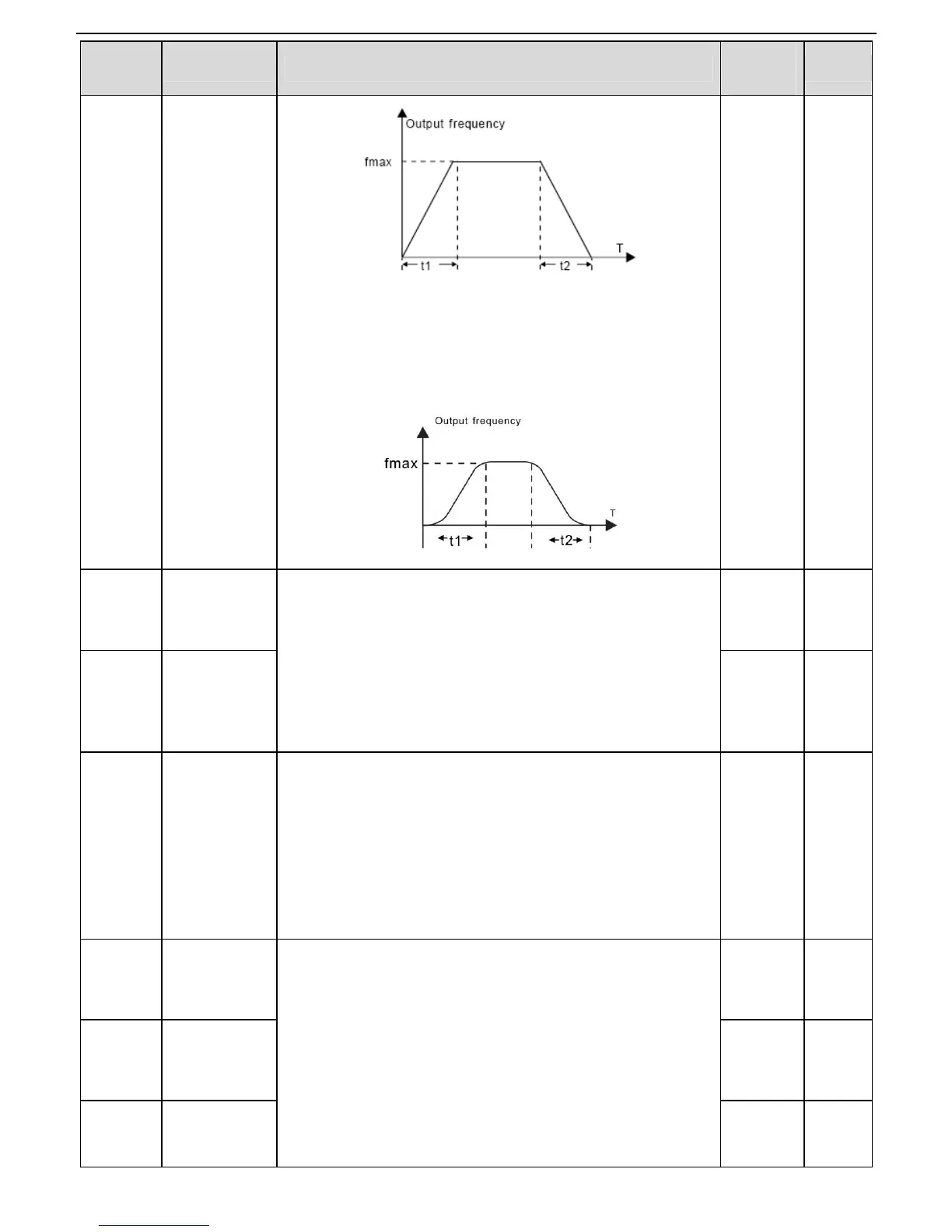

1: S curve, the output frequyency will increase or decrease
according to the S curve
S curve is generally used on the applications of gradual
starting and stopping, such as elevators.
P01.06
ACC time of
the starting
step of S curve
0.0~50.0s
0.1s ◎
P01.07
DEC time of
the ending step
of S curve
0.1s ◎
P01.08
Stop selection
0: Decelerate to stop: after the stop command becomes
valid, the inverter decelerates to reduce the output
frequency during the set time. When the frequency
decreases to 0Hz, the inverter stops.
1: Coast to stop: after the stop command becomes valid, the
inverter ceases the output immediately. And the load coasts
to stop at the mechanical inertia.
0 ○
P01.09
Starting
frequency of
DC braking
Starting frequency of DC braking: start the DC braking when
running frequency reaches starting frequency determined
by P1.09.
Waiting time before DC braking: Inverters blocks the output
before starting the DC braking. After this waiting time, the
DC braking will be started so as to prevent over-current fault
caused by DC braking at high speed.
DC braking current: the value of P01.11 is the percentage of
0.00Hz
○
P01.10
Waiting time
before DC
braking
0.00s ○
P01.11
DC braking
current
0.0% ○
