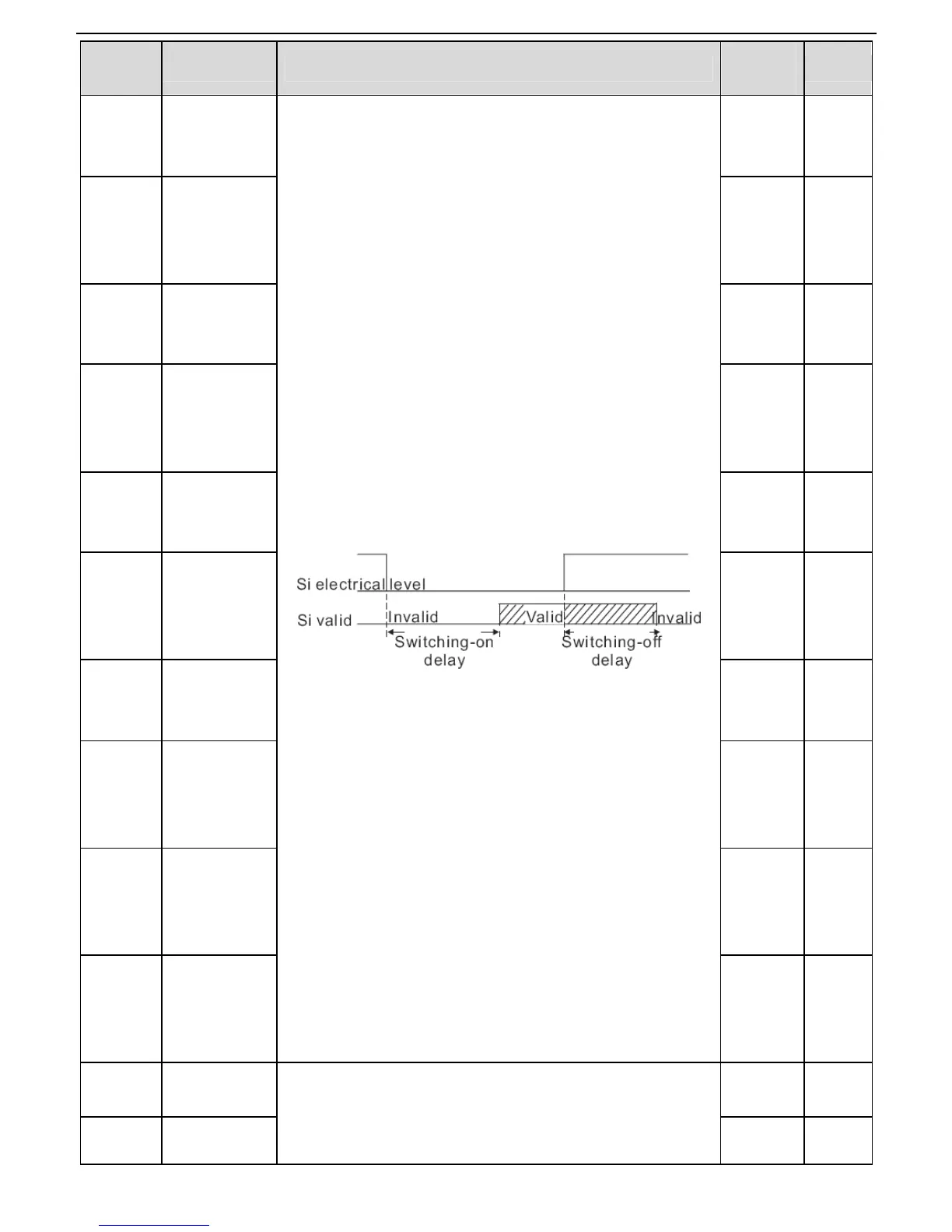

INVT GD20-0R4G-S2 User Manual

Goodrive20 inverters Function Parameters
52
Function
code
Name Detailed instruction of parameters
Default
value
Modify
P05.14
S1 terminal
switching on
delay time
The function code defines the corresponding delay time of
electrical level of the programmable terminals from
switching on to switching off.
Setting range:0.000~50.000s
0.000s
○
P05.15
S1
terminal
switching off
delay time
0.000s
○
P05.16
S2 terminal
switching on
delay time
0.000s
○
P05.17
S2
terminal
switching off
delay time
0.000s
○
P05.18
S3 terminal
switching on
delay time
0.000s
○
P05.19
S3
terminal
switching off
delay time
0.000s
○
P05.20
S4 terminal
switching on
delay time
0.000s
○
P05.21
S4
terminal
switching off
delay time
0.000s
○
P05.30
HDI
terminal
switching on
delay time
0.000s
○
P05.31
HDI
terminal
switching off
delay time
0.000s
○
P05.32
Lower limit of
AI1
AI1 is set by the analog potentiometer, AI2 is set by control
terminal AI2 and AI3 is set by control terminal AI3. The
function code defines the relationship between the analog
0.00V
○
P05.33
Corresponding
0.0%
○
