INVT GD20-0R4G-S2 User Manual

Goodrive20 inverters Function Parameters
53
Function
code
Name Detailed instruction of parameters
Default
value
Modify
setting of the
lower limit of
AI1
input voltage and its corresponding set value. If the analog
input voltage beyond the set minimum or maximum input
value, the inverter will count at the minimum or maximum
one.
When the analog input is the current input, the
corresponding voltage of 0~20mA is 0~10V.
In different cases, the corresponding rated value of 100.0%
is different. See the application for detailed information.

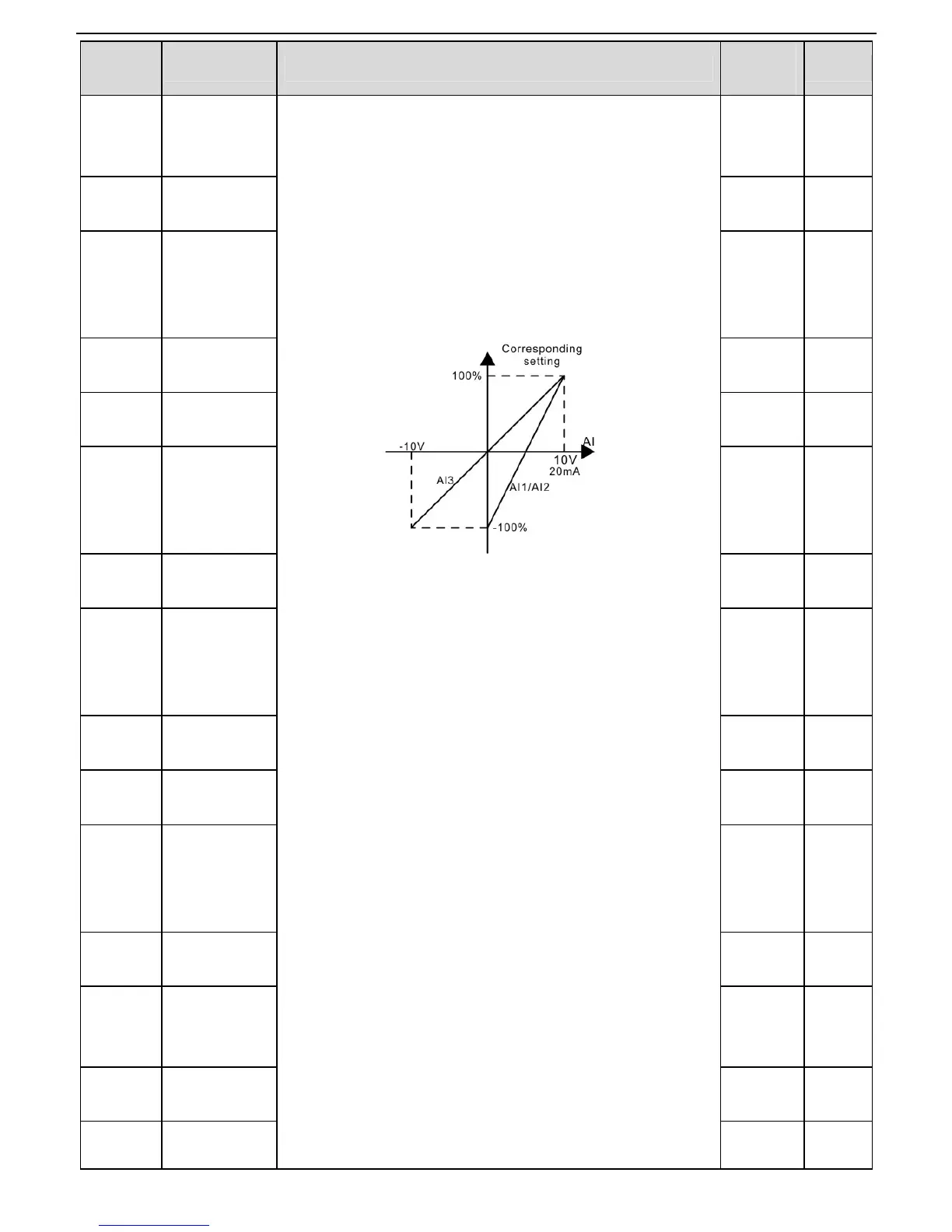

The figure below illustrates different applications:
Input filter time: this parameter is used to adjust the
sensitivity of the analog input. Increasing the value properly
can enhance the anti-interference of the analog, but weaken
the sensitivity of the analog input
Note: AI1 supports 0~10V input and AI2 supports 0~10V or
0~20mA input, when AI2 selects 0~20mA input, the
corresponding voltage of 20mA is 10V. AI3 can support the
output of -10V~+10V.
The setting range of P05.32:0.00V~P05.34
The setting range of P05.33:-100.0%~100.0%
The setting range of P05.34:P05.32~10.00V
The setting range of P05.35:-100.0%~100.0%
The setting range of P05.36:0.000s~10.000s
The setting range of P05.37:0.00V~P05.39
The setting range of P05.38:-100.0%~100.0%
The setting range of P05.39:P05.37~10.00V
The setting range of P05.40:-100.0%~100.0%
The setting range of P05.41:0.000s~10.000s
The setting range of P05.42:-10.00V~P05.44
The setting range of P05.43:-100.0%~100.0%
The setting range of P05.44:P05.42~P05.46
The setting range of P05.45:-100.0%~100.0%
P05.34
Upper limit of
AI1
10.00V
○
P05.35
Corresponding
setting of
the upper limit
of AI1
100.0%
○
P05.36
AI1 input filter
time
0.100s
○
P05.37
Lower limit of
AI2
0.00V
○
P05.38
Corresponding
setting of the
lower limit of
AI2
0.0%
○
P05.39
Upper limit of
AI2
10.00V
○
P05.40
Corresponding
setting of
the upper limit
of AI2
100.0%
○
P05.41
AI2 input filter
time
0.100s
○
P05.42
Lower limit of
AI3
-10.00V
○
P05.43
Corresponding
setting of the
lower limit of
AI3
-100.0%
○
P05.44
Middle
value of
AI3
0.00V
○
P05.45
Corresponding
middle setting
of AI3
0.0%
○
P05.46
Upper limit of
AI3
10.00V
○
P05.47
Corresponding
100.0%
○
