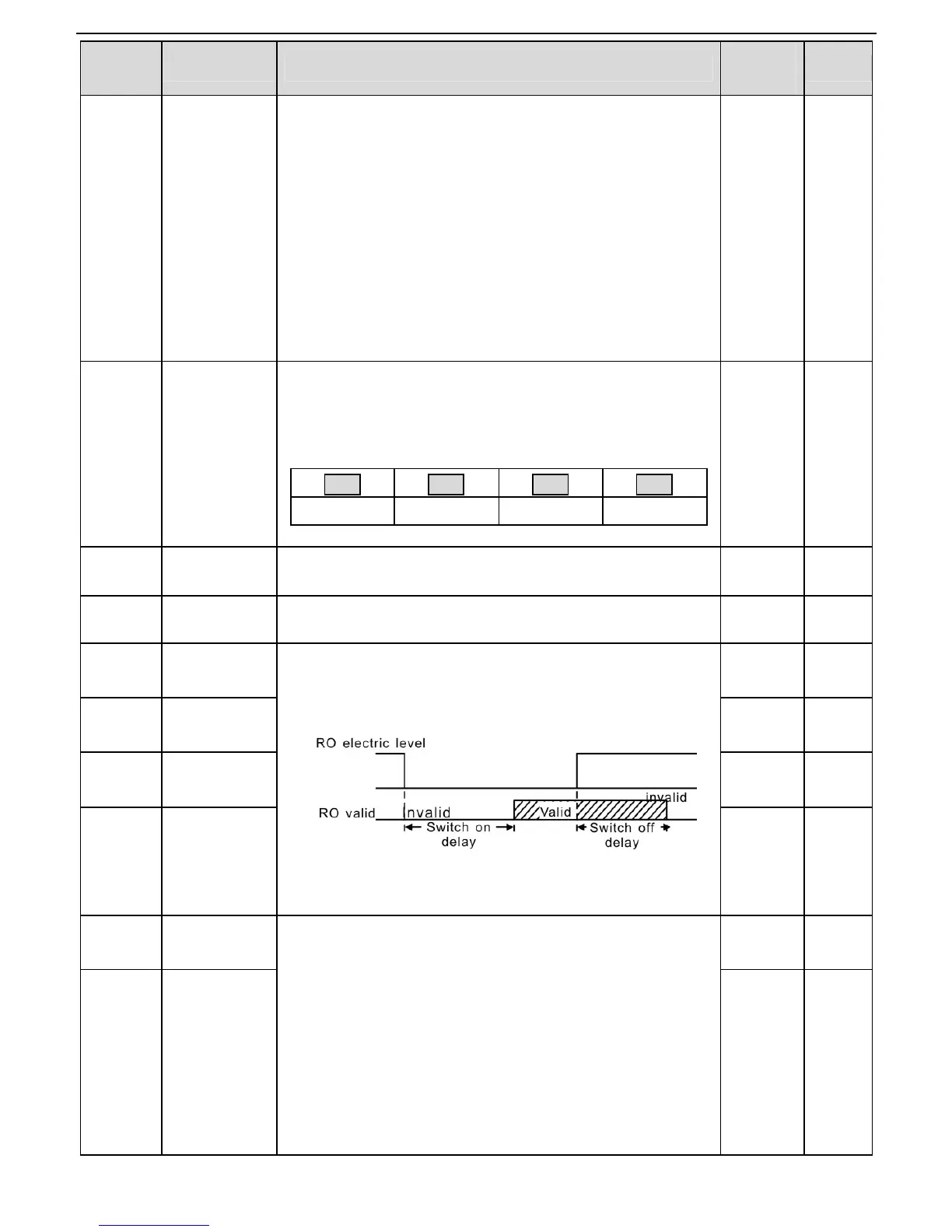

INVT GD20-0R4G-S2 User Manual

Goodrive20 inverters Function Parameters
55
Function
code
Name Detailed instruction of parameters
Default
value
Modify
17:Completion of simple PLC cycle
18:Setting count value arrival
19:Defined count value arrival
20:External fault valid
21: Reserved
22:Running time arrival
23:MODBUS communication virtual terminals output
24~25:Reserved
26: Establishment of DC bus voltage
27~30:Reserved
P06.05
Polarity
selection of
output
terminals
The function code is used to set the pole of the output
terminal.
When the current bit is set to 0, input terminal is positive.
When the current bit is set to 1, input terminal is negative.
BIT3 BIT2 BIT1 BIT0
RO2 RO1 Reserved Y1
Setting range:0~F
0
○
P06.06
Y1 open delay
time
The setting range:0.000~50.000s 0.000s ○
P06.07
Y1C off delay
time
The setting range:0.000~50.000s 0.000s ○
P06.10
RO1 switching
on delay time
The function code defines the corresponding delay time of
the electrical level change during the programmable
terminal switching on and off.
The setting range :0.000~50.000s
Note: P06.08 and P06.08 are valid only when P06.00=1.
0.000s
○
P06.11
RO1 switching
off delay time
0.000s
○
P06.12
RO2 switching
on delay time
0.000s
○
P06.13
RO2 switching
off delay time
0.000s
○
P06.14
AO1 output
selection
0:Running frequency
1:Setting frequency
2:Ramp reference frequency
3:Running rotation speed
4:Output current (relative to 2 times of the rated current of
the inverter)
5:Output current(relative to 2 times of the rated current of
the motor)
6:Output voltage
0
○
P06.15
AO2 output
selection
0
○
