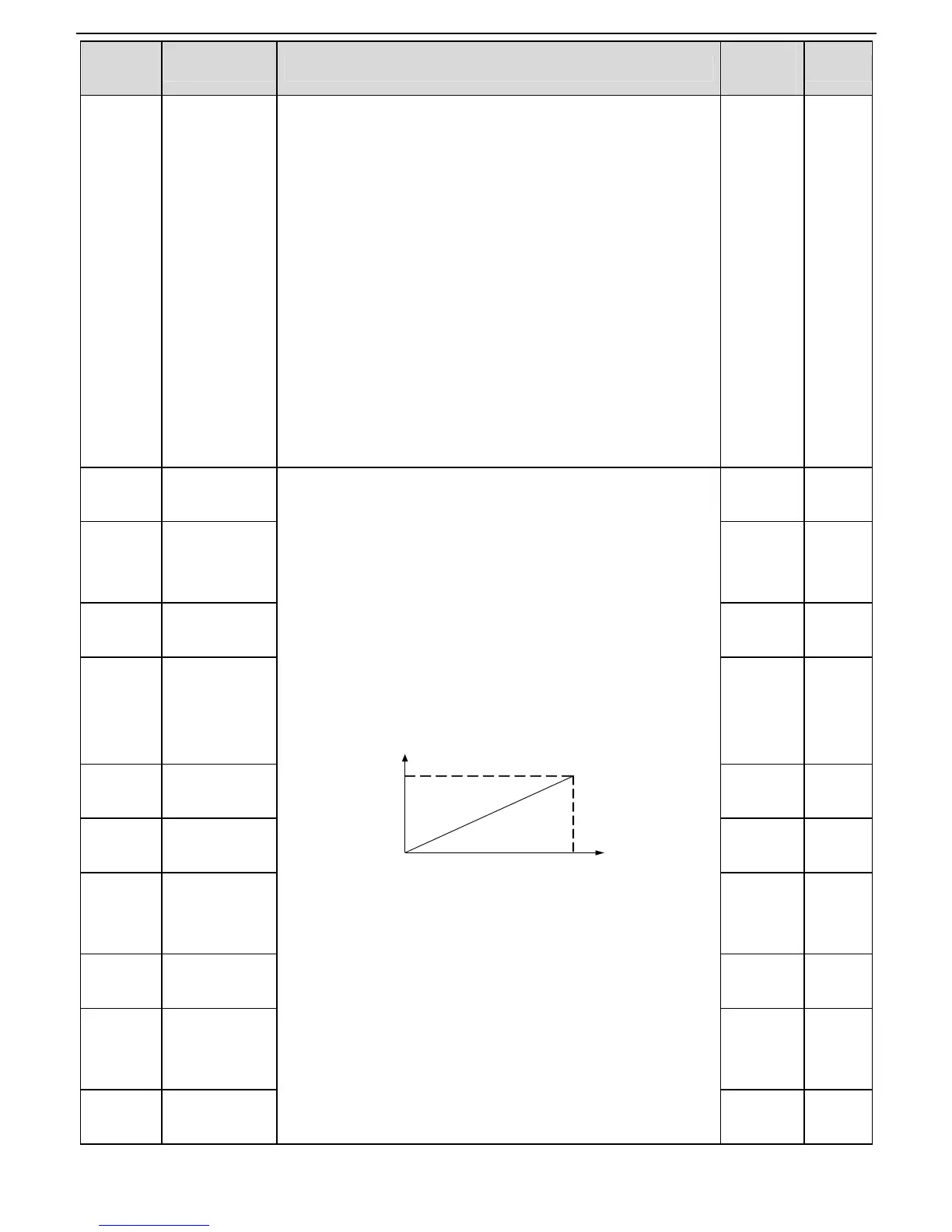

INVT GD20-0R4G-S2 User Manual

Goodrive20 inverters Function Parameters
56
Function
code
Name Detailed instruction of parameters
Default
value
Modify
7:Output power
8:Set torque value
9:Output torque
10:Analog AI1 input value
11:Analog AI2 input value
12:Analog AI3 input value
13:High speed pulse HDI input value
14:MODBUS communication set value 1
15:MODBUS communication set value 2
16~21: Reserved
22:Torque current (corresponds to 3 times of the rated
current of the motor)
23: Ramp reference frequency (with sign)
24~30: Reserved
P06.17
Lower limit of
AO1 output
The above function codes define the relative relationship
between the output value and analog output. When the
output value exceeds the range of set maximum or
minimum output, it will count according to the low-limit or
upper-limit output.
When the analog output is current output, 1mA equals to
0.5V.
In different cases, the corresponding analog output of 100%
of the output value is different. Please refer to each
application for detailed information.
10 V (2 0 mA )
0 .0 % 1 00 .0 %
AO
Setting range of P06.17:-100.0%~ P06.19
Setting range of P06.18:0.00V~10.00V
Setting range of P06.19:P06.17~100.0%
Setting range of P06.20:0.00V~10.00V
Setting range of P06.21:0.000s~10.000s
Setting range of P06.22:-100.0%~ P06.24
Setting range of P06.23:0.00V~10.00V
Setting range of P06.24:P06.22~100.0%
Setting range of P06.25:0.00V~10.00V
Setting range of P06.26:0.000s~10.000s
0.0%
○
P06.18
Corresponding
AO1 output to
the lower limit
0.00V
○
P06.19
Upper limit of
AO1 output
100.0%
○
P06.20
The
corresponding
AO1 output to
the upper limit
10.00V
○
P06.21
AO1 output
filter time
0.000s
○
P06.22
Lower limit of
AO2 output
0.0%
○
P06.23
Corresponding
AO2 output to
the lower limit
0.00V
○
P06.24
Upper limit of
AO2 output
100.0%
○
P06.25
Corresponding
AO2 output to
the upper limit
10.00V
○
P06.26
AO2 output
filter time
0.000s
○
