Goodrive20 inverters Installation guidelines
16
3.2.2 Terminals figure of main circuit

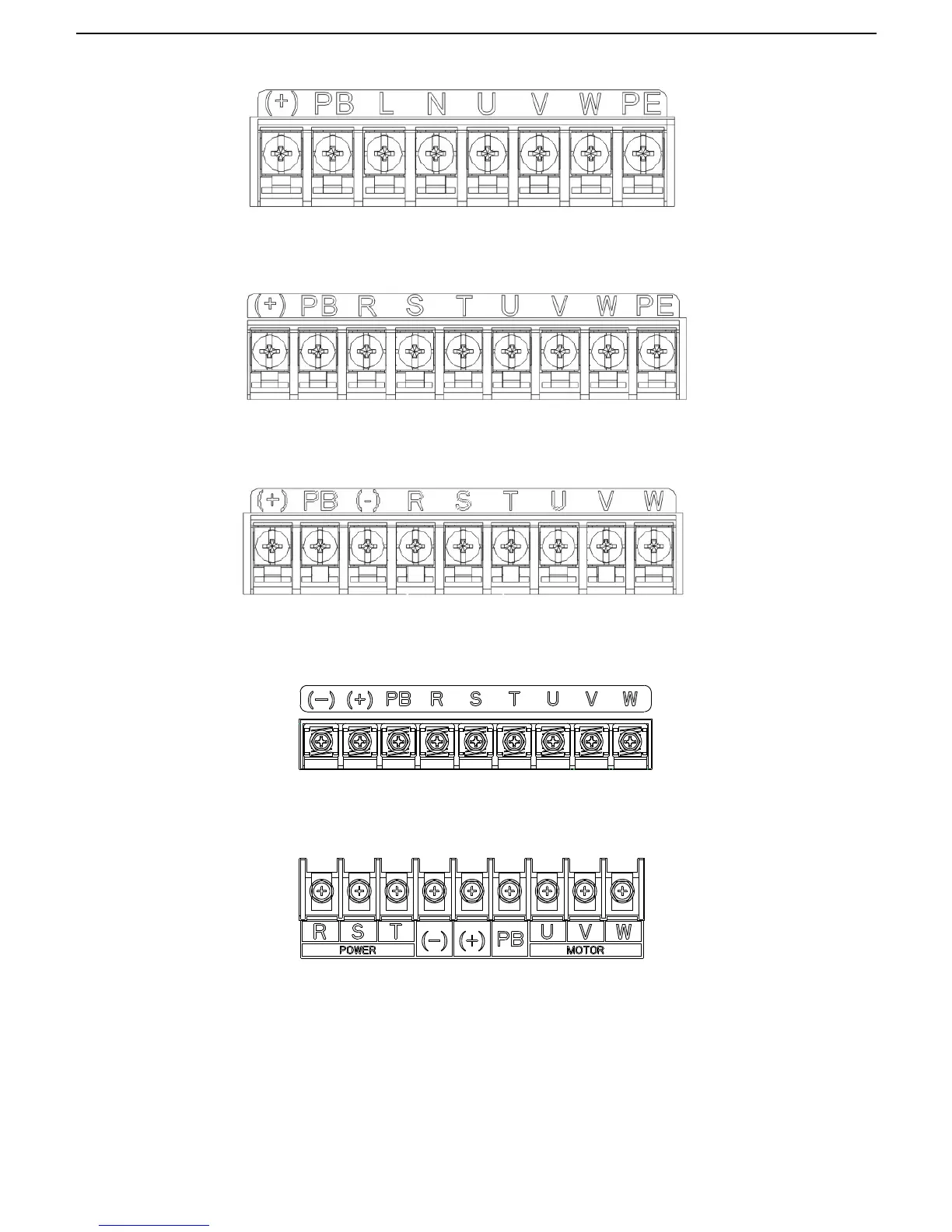

Figure 3-4 1PH terminals of main circuit (single phase)
Figure 3-5 3PH terminals of main circuit (220V, 0.75kW, and 380V, 2.2kW)
Figure 3-6 3PH terminals of main circuit (220V, 1.5kW, and 380V, 4-22kW)
Figure 3-7 3PH terminals of main circuit (30-37kW)
Figure 3-8 3PH terminals of main circuit (45-110kW)
