INVT GD200A-0R7G-4 User Manual

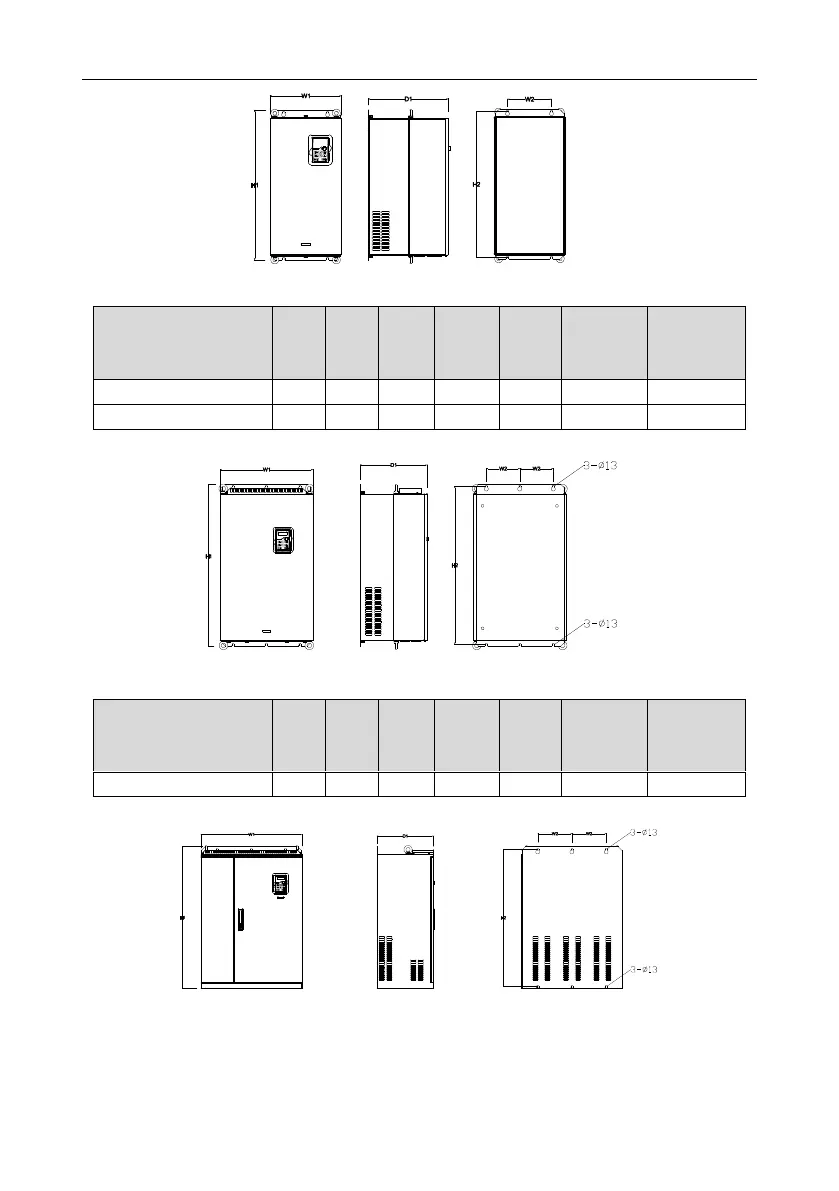

GD200A series VFD Dimension drawings
-156-
Figure B-5 Wall mounting for the 037G/045P–110G/132P models
VFD model
W1
W2
H1
H2
D1
Installation
hole
diameter
Weight (kg)
037G/045P–055G/075P
270
130
555
540
332.6
7
30
075G/090P–110G/132P
325
200
680
661
373.6
9.5
47
Figure B-6 Wall mounting for the 132G/160P–200G/220P models
VFD model
W1
W2
H1
H2
D1
Installation
hole
diameter
Weight (kg)
132G/160P–200G/220P
500
180
870
850
368.4
11
85
Figure B-7 Wall mounting for the 220G/250P–315G/355P models
