INVT GD200A-0R7G-4 User Manual

GD200A series VFD Dimension drawings
-155-

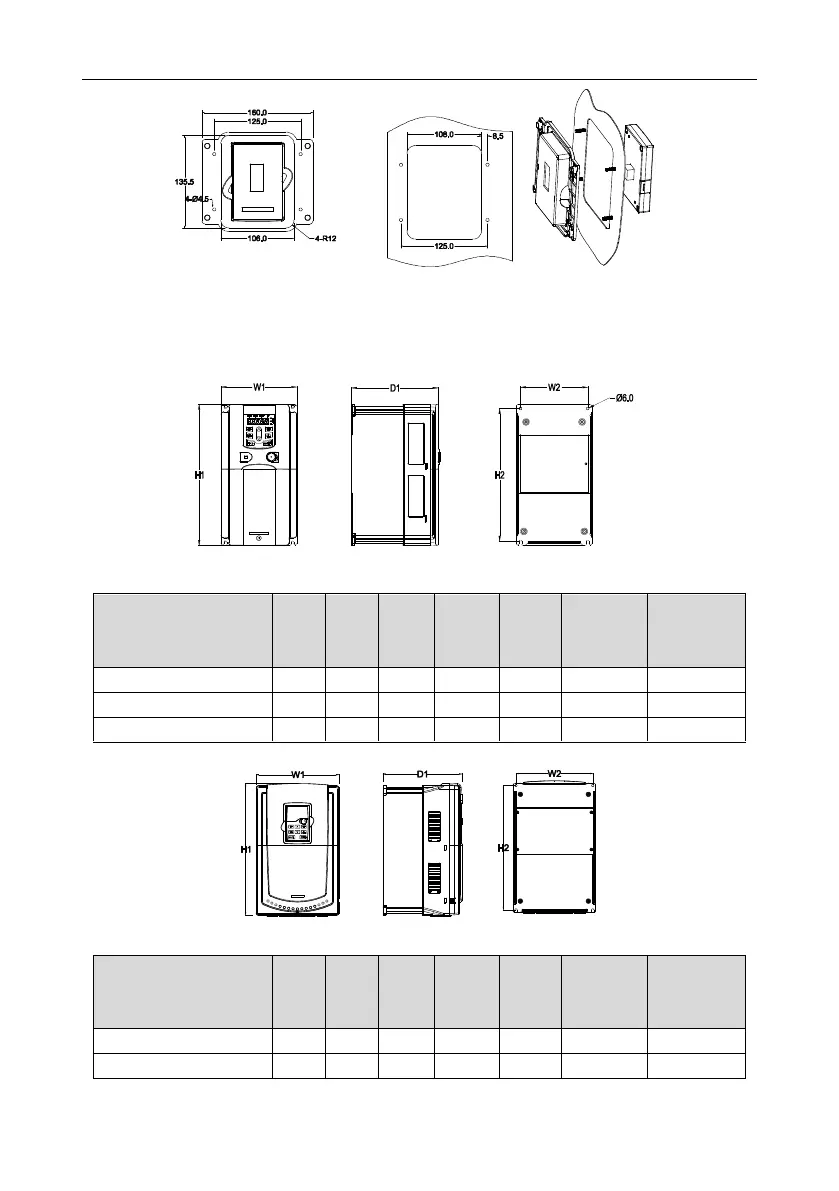

Figure B-2 Keypad Installation bracket (standard configuration) for the 037G/045P–500G models
B.3 VFD chart
B.3.1 Wall mounting
Figure B-3 Wall mounting for the 0R7G–015G/018P models
VFD model
W1
W2
H1
H2
D1
Installation
hole
diameter
Weight (kg)
0R7G–2R2G
126
115
186
175
155
5
1.9
004G/5R5P–5R5G/7R5P
146
131
256
243.5
171
6
3.2
7R5G/011P–015G/018P
170
151
320
303.5
199.6
6
5.9
Figure B-4 Wall mounting for the 018G/022P–030G/037P models
VFD model
W1
W2
H1
H2
D1
Installation
hole
diameter
Weight (kg)
018G/022P
230
210
342
311
219.4
6
7.6
022G/030P–030G/037P
255
237
407
384
245.6
7
13
