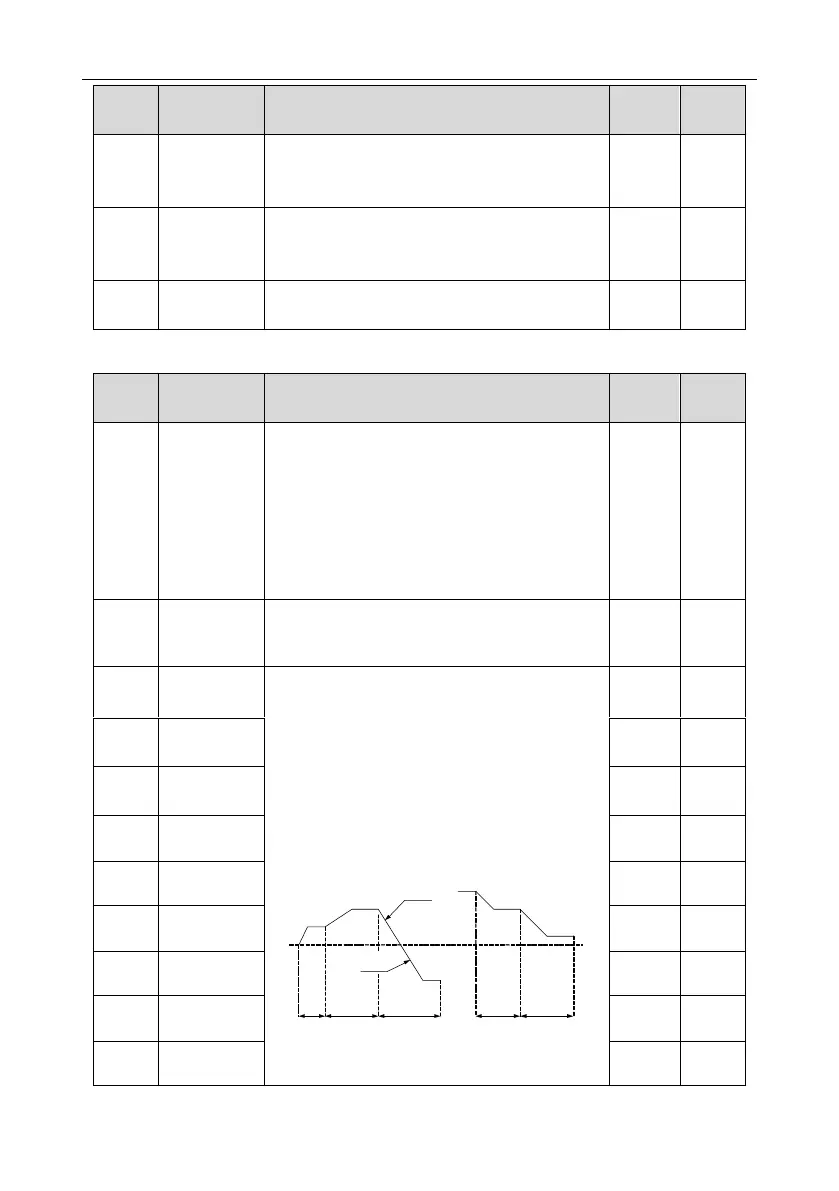

INVT GD200A-0R7G-4 User Manual

GD200A series VFD Function parameters
-85-
Function
code
Name
Description
Default
value
Modify
P09.14
Proportional
gain at low
frequency (Kp)
0.00–100.00
1.00
○
P09.15
PID command
of ACC/DEC
time
0.0–1000.0s
0.0s
○
P09.16
PID output filter
time
0.000–10.000s
0.000s
○
P10 Group Simple PLC and multi-step speed control
Function
code
Name
Description
Default
value
Modify
P10.00
Simple PLC
0: Stop after running once. The VFD has to be
commanded again after finishing a cycle.
1: Run at the final value after running once. After
finish a signal, the VFD will keep the running
frequency and direction of the last run.
2: Cycle running. The VFD will keep on running
until receiving a stop command and then, the
system will stop.
0
○
P10.01
Simple PLC
memory
0: Power loss without memory
1: Power loss memory; PLC record the running
step and frequency when power loss.
0
○
P10.02
Multi-step
speed 0
100.0% of the frequency setting corresponds to
the max. frequency P00.03.
When selecting simple PLC running, set
P10.02–P10.33 to define the running frequency
and direction of all steps.
Note: The symbol of multi-step determines the
running direction of simple PLC. The negative
value means reverse rotation.
P10.04
P10.02
P10.03
P10.05 P10.07
P10.06
P10.31 P10.33
P10.32
ACC time
2 stages
DEC time
2 stages
P10.30
P10.28
Multi-step speeds are in the range of --f
max
–f
max
and it can be set continuously.
0.0%
○
P10.03
Running time of
step 0
0.0s
○
P10.04
Multi-step
speed 1
0.0%
○
P10.05
Running time of
step 1
0.0s
○
P10.06
Multi-step
speed 2
0.0%
○
P10.07
Running time of
step 2
0.0s
○
P10.08
Multi-step
speed 3
0.0%
○
P10.09
Running time of
step 3
0.0s
○
P10.10
Multi-step
speed 4
0.0%
○
