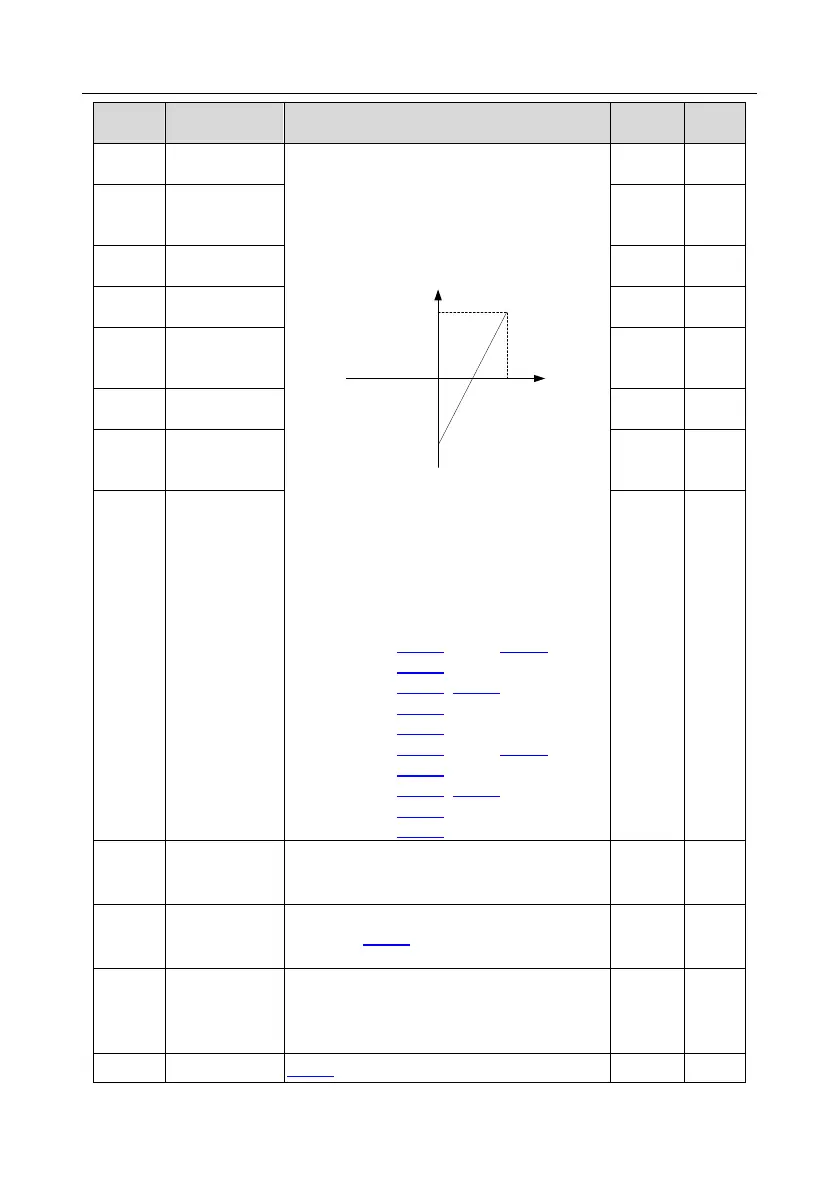

Goodrive350 IP55 High-ingress Protection Series VFD Function parameter list
-227-
Function
code
Name
Description
Default
value
Modify
P25.26
Upper limit value
of AI3
be adopted during calculation.
When analog input is current input, 0–20mA
current corresponds to 0–10V voltage.
In different application cases, 100% of the
analog setting corresponds to different nominal
values.
The figure below illustrates several settings.
-100%
100%
Corresponding
setting
AI
10V
20mA
0
AI3/AI4
Input filter time: Adjust the sensitivity of analog
input, increase this value properly can enhance
the anti-interference capacity of analog
variables; however, it will also degrade the
sensitivity of analog input.
Note: AI3 and AI4 can support 0–10V/0–20mA
input, when AI3 and AI4 select 0–20mA input,
the corresponding voltage of 20mA is 10V;
Setting range of P25.24: 0.00V–P25.26
Setting range of P25.25: -300.0%–300.0%
Setting range of P25.26: P25.24–10.00V
Setting range of P25.27: -300.0%–300.0%
Setting range of P25.28: 0.000s–10.000s
Setting range of P25.29: 0.00V–P25.31
Setting range of P25.30: -300.0%–300.0%
Setting range of P25.31: P25.29–10.00V
Setting range of P25.32: -300.0%–300.0%
Setting range of P25.33: 0.000s–10.000s
10.00V
○
P25.27
Corresponding
setting of upper
limit of AI3
100.0%
○
P25.28
Input filter time
of AI3
0.030s
○
P25.29
Lower limit value
of AI4
0.00V
○
P25.30
Corresponding
setting of lower
limit of AI4
0.0%
○
P25.31
Upper limit value
of AI4
10.00V
○
P25.32
Corresponding
setting of upper
limit of AI4
100.0%
○
P25.33
Input filter time
of AI4
0.030s
○
P25.34
HDI3 high-speed
pulse input
function
0: Set input via frequency
1: Count
0
◎
P25.35
Lower limit
frequency of
HDI3
0.000 kHz–P25.37
0.000
kHz
○
P25.36
Corresponding
setting of lower
limit frequency of
HDI3
-300.0%–300.0%
0.0%
○
P25.37
Upper limit
P25.35–50.000kHz
50.000
○
