INVT Goodrive300-01A Series User Manual

Goodrive300-01A series VFD for air compressor Appendix B
-80-
Appendix B Optional accessories
B.1 Touch screen
In order to drive and manage the air compressor in an optimized manner, users can choose our
VT6070E touch screen to be used in conjunction with Goodrive300-01A product. The touch screen
comes with 2.5m RS485 communication cable (24V power cable included) and emergency-stop
signal wire, as shown below.
GD300-01A control board
COM COM
S5 S4 S3 S1
COM
S2
PTB1 PTA1 P1- P1+ P2- P2+
RO1A RO1C RO2A RO2C RO3B RO3A RO3C
A01
GND
Ib Ic Ia
PTB2 PTA2
485+ 485-
GND
+24V
CGND/PE
485+ 485-
GND
+24V
485+ 485-
GND
+24V
CN10
RS485 communication line
HMI
Emergency-stop
signal wiring

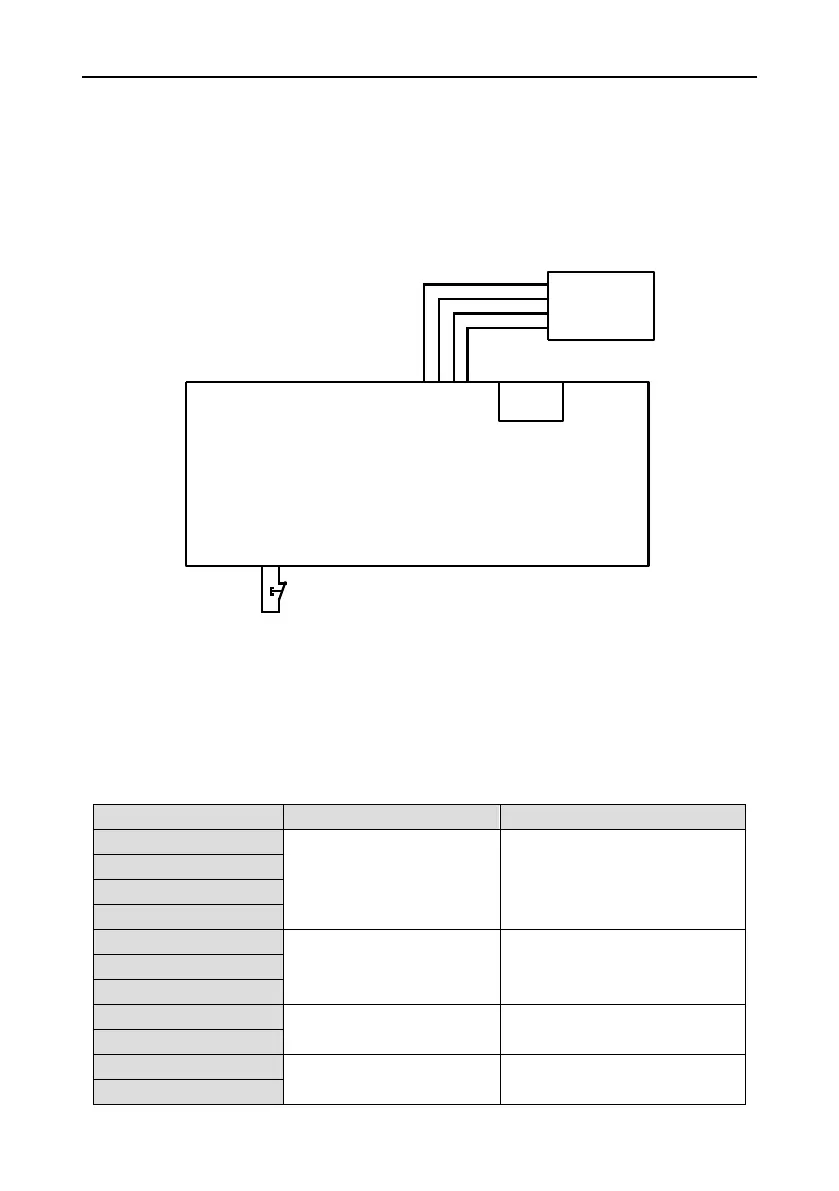

Figure B-1 Wiring of touch screen cables
Note:
1. The RS485 communication cable included in the standard configuration of the touch screen is
non-shielded cable; shielded cables should be purchased separately.
2. See User Manual for VT6070E series HMI for details on how to use the touch screen.
B.2 Filter
Filter model selections for GD300-01A are shown below.
VFD model
Input filter
Output filter
GD300-01A-7R5G-4
FLT-P04032L-B
FLT-L04032L-B
GD300-01A-7R5G-4-CT
GD300-01A-011G-4
GD300-01A-011G-4-CT
GD300-01A-015G-4
FLT-P04045L-B
FLT-L04045L-B
GD300-01A-015G-4-CT
GD300-01A-018G-4
GD300-01A-022G-4
FLT-P04065L-B
FLT-L04065L-B
GD300-01A-030G-4
GD300-01A-037G-4
FLT-P04100L-B
FLT-L04100L-B
GD300-01A-045G-4
