Iomega ZIP drive 100 Installation Guide

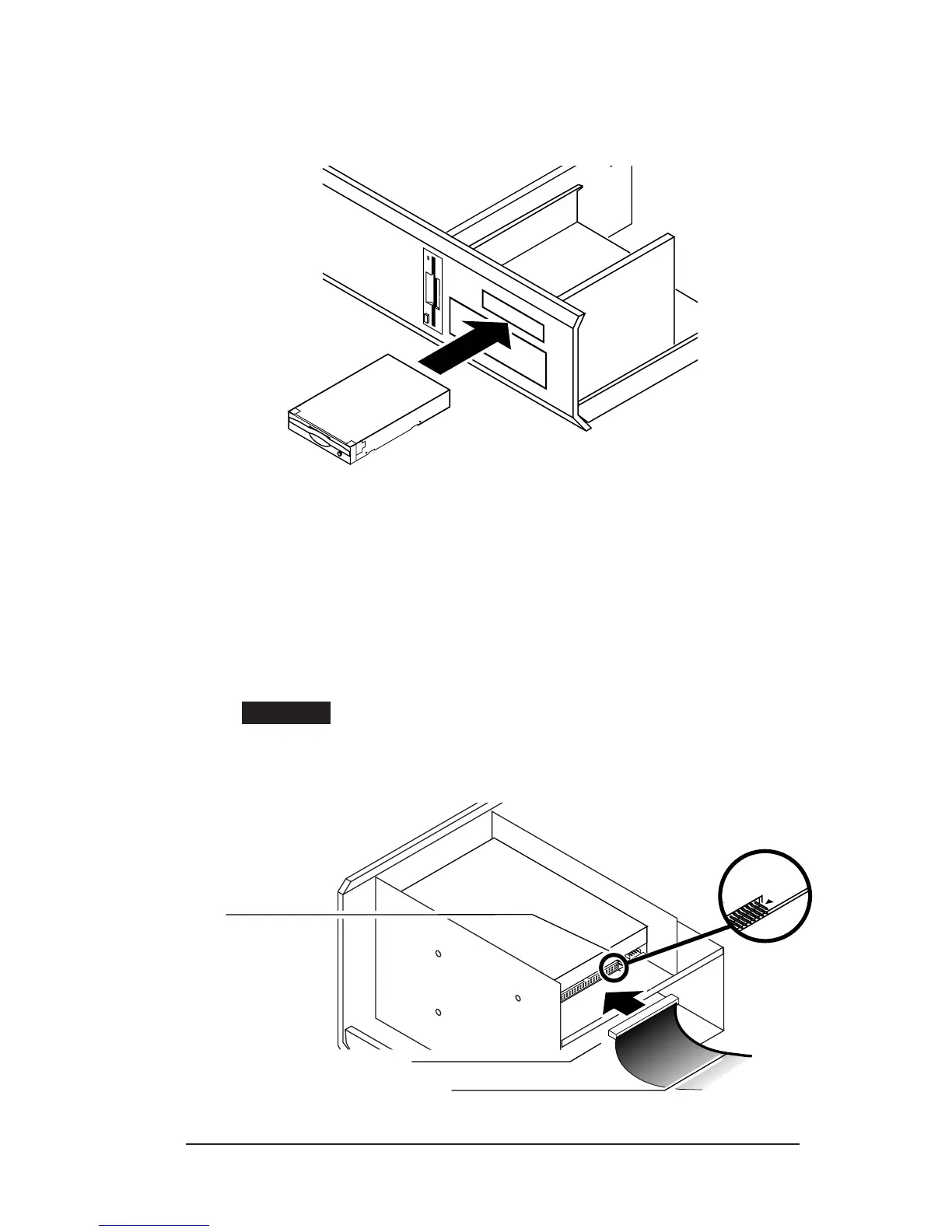

Slide the Zip drive into the drive bay.
M NOTE: If it makes it easier to connect cables on your computer,
you can secure the Zip drive in the drive bay now. (See step 12 for
instructions on securing the drive.) M
Use a standard 40-pin interface cable to
connect the Zip ATAPI drive to the computer’s
embedded IDE interface or IDE card.
CAUTION Make sure PIN 1 on the cable connects to PIN 1 on the
Zip ATAPI drive. All IDE interface cable connections must maintain
correct pin 1 orientation in order for the Zip drive to be recognized
by the system. M
PIN 1
Zip ATAPI Drive
Pin 1
40-pin Interface Cable Connector
Stripe on Interface Cable indicates Pin 1
