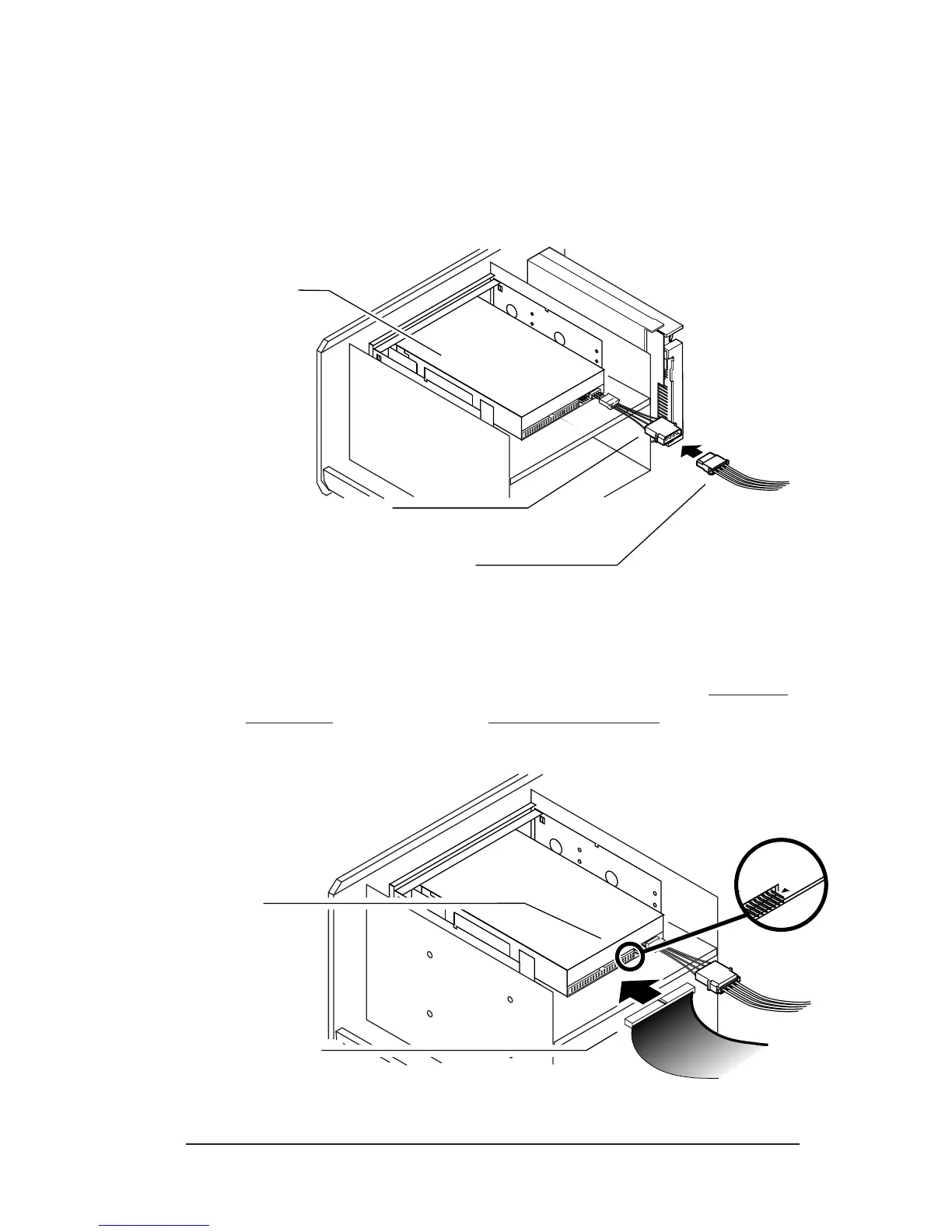

Connect a computer power supply cable. (Use
the power cable converter if needed.)
M N0TE: If your computer has no spare power supply cable, you
will need to use a power Y-cable. To order one, call your dealer. M
Power Supply Cable from Computer
Power Cable Converter
Zip Drive
Follow the data cable from the Zip zoom board
and connect it to your Zip drive.
(Be sure PIN 1 on
the cable is connected to PIN 1 on the drive.)
PIN 1
Zip Drive
Pin One
Cable Connector
10
6
11
To Next Page
