ION 30ACi+ User Manual

OPERATION MANUAL
Dated: 02/10/2015
Document Name: 30-35ACi+&Deluxe_OM
Page 7 of 12
30ACi+, 30ACi Deluxe,
35ACi+ and 35ACi Deluxe
Battery Backup System
Register your product at www.sumpro.com
Amount of Load
Mains A.C. Lower Voltage Limit 90 VAC ± 5V
Output Voltage with Full Load 110 - 120V ± 10 V
Maximum Output Power 4.0 FLA
Battery Lower Voltage Limit 10.5 VOC ± 0.2 V
Output Frequency
Main Output Frequency
Same as Input
DC Input 12 VDC
Battery Charger Boost Voltage 13.7 ± 0.2 V
Overload
130% ± 3% (With Auto
Reset Function)
Mains A.C. Lower Voltage Limit 90 VAC ± 5V
Output Voltage with Full Load 110 - 120V ± 10 V
Maximum Output Power 5.5 FLA
Battery Lower Voltage Limit 10.5 VOC ± 0.2 V
Output Frequency
Main Output Frequency
Same as Input
DC Input 12 VDC
Battery Charger Boost Voltage 13.7 ± 0.2 V
Overload
130% ± 3% (With Auto
Reset Function)
30ACi+/30ACi Deluxe
35ACi+/35ACi Deluxe
Inverter Specications
Inverter Specications
Model
Output
HP Amp Voltage
WC33 1/3 4.0 115
Pump Specications
Model
Output
HP Amp Voltage
BA33 1/3 4.5 115
Pump Specications

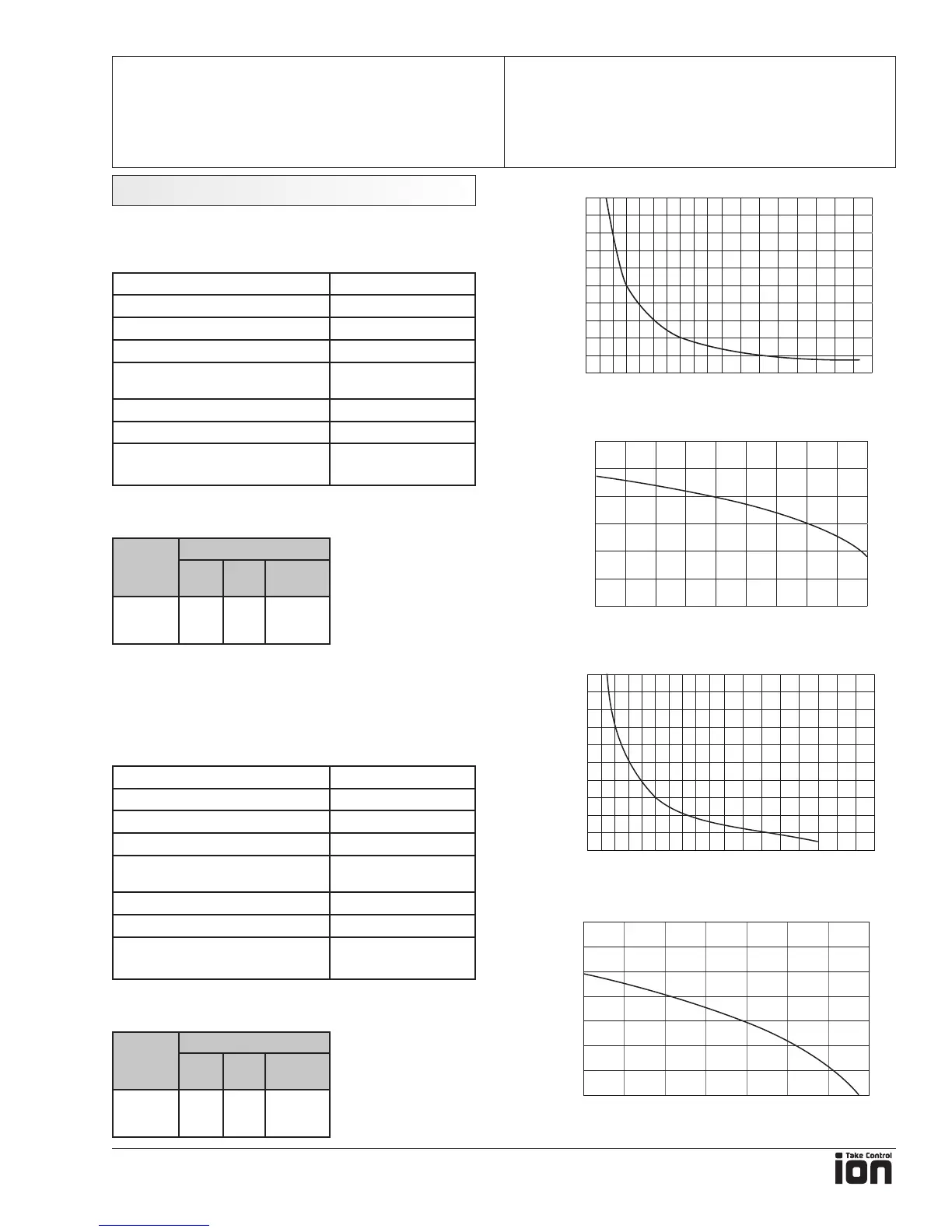

technIcal SpecIfIcatIonS
30ACi+/30ACi Deluxe Pump Performance Curve
35ACi+/35ACi Deluxe Pump Performance Curve
30ACi+/30ACi Deluxe System Performance Curve
35ACi+/35ACi Deluxe System Performance Curve
Reserve Power (total hours of operation)
Duty Cycle (% of time running)
0 1 2 3 4 5 6 7 8 9 10 12 15 20 25 30 35 40 45
100
90
80
70
60
50
40
30
20
10
0
Capacity (GPM)
Total Dynamic Head (ft.)
30
25
20
15
10
5
0
0 5 10 15 20 25 30 35 40 45
Reserve Power (total hours of operation)
Duty Cycle (% of time running)
90
80
70
60
50
40
30
20
10
0
100
0 1 2 3 4 5 6 7 8 9 10 12 15 20 25 30 35 40 45
Capacity (GPM)
Total Dynamic Head (ft.)
35
30
25
20
15
10
5
0
0 10 20 30 40 50 60 70
