iOptron HAE29 - Customize Cable-Ready Wiring; Go2 Nova 8409 Hand Controller

8
 HBX (Hand Box): For connecting to an 8409 Hand Controller
 ST-4: ST-4 compatible autoguiding port. The wiring is shown in Figure 3

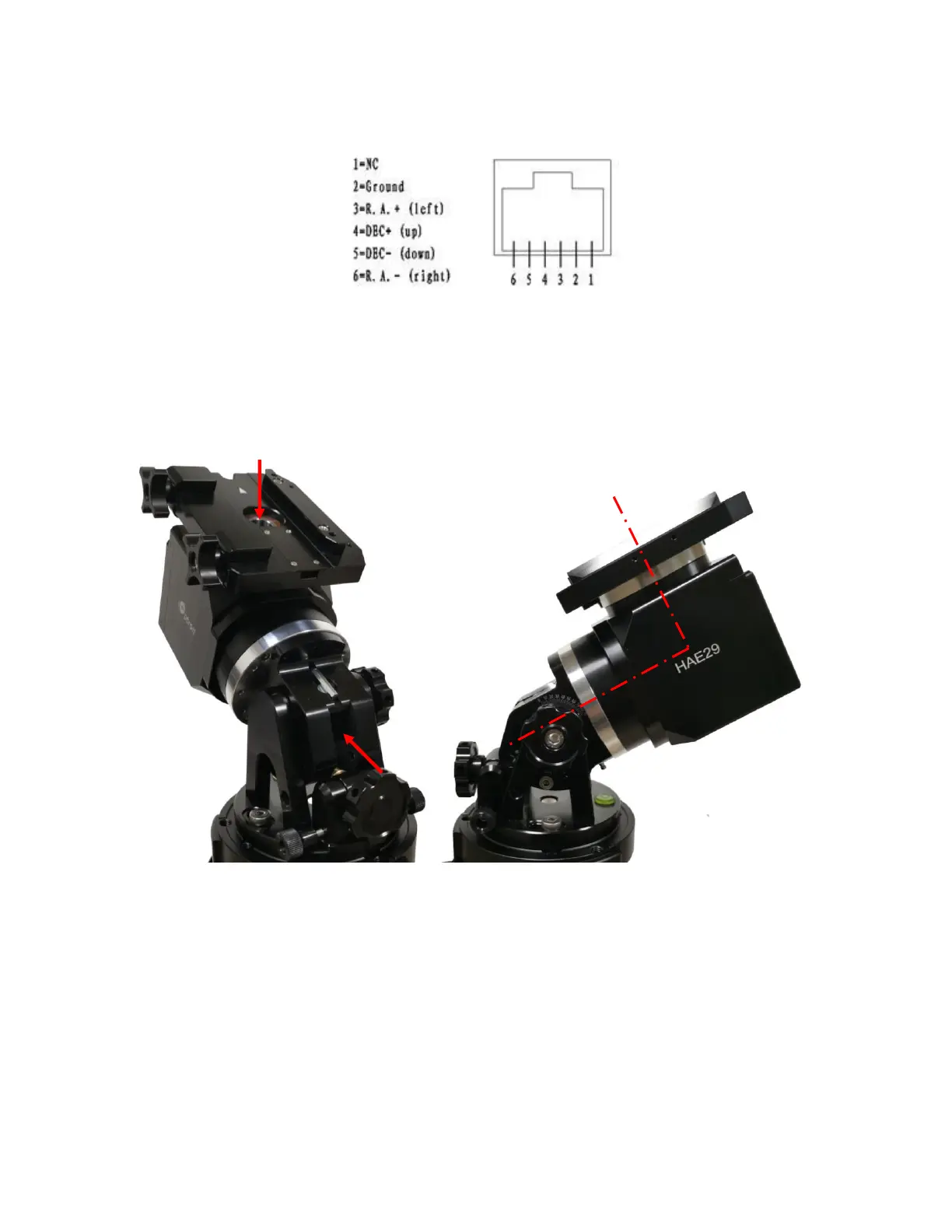

Figure 3. ST-4 Compatible Guiding Port Wiring
2.4. Customer Cable Passthrough
Figure 4. Through holes for customer cable passthrough
2.5. Go2Nova
®
8409 Hand Controller
The Go2Nova
®
8409 hand controller (HC) shown in Figure 5 is the standard controller used on the
HAE mount. It has a large LCD screen, function, direction, and number keys on the front; and an HBX (6-
pin) and a USB port at the bottom.
