2.2. Identification of Parts

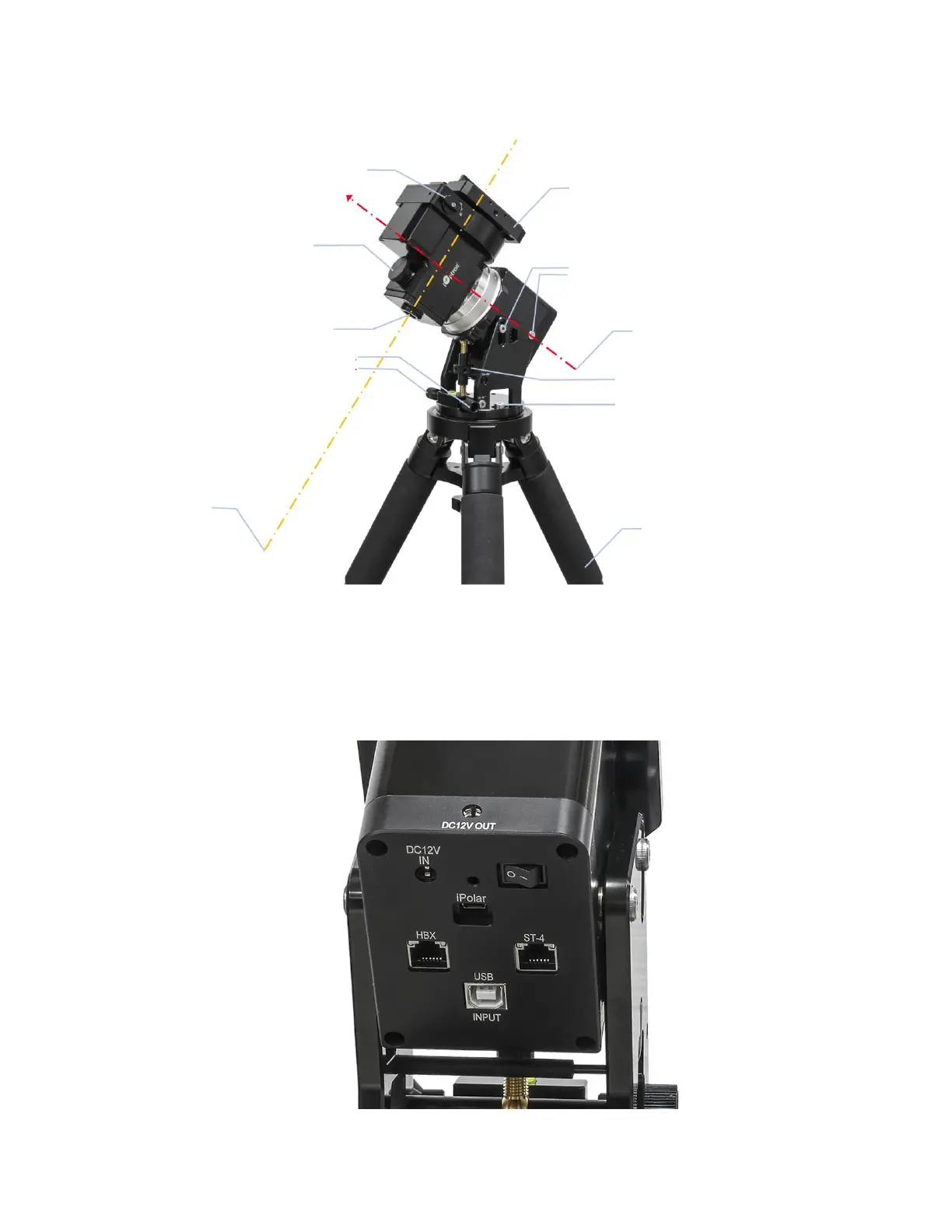

Figure 1.HEM44 mount assembly
2.3. HEM44 Port
On the Mount:
Figure 2. Ports on a HEM44 mount
DEC Gear Switch
iPolar Cover
CW Shaft Thread Hole
DEC Axis
AZI Adj. Screws
Dovetail Saddle
ALT Locking Screws
RA Axis/Polar Axis
ALT Adj. Screw
AZI Locking Screws
Carbon Fiber Tripod
(Optional)
