TYPICAL TRAILER WIRING
NOTE: The standard wiring pictured in g. 4 is viewed from the front of the connector.
Not all trailers/vehicles are wired to this standard. The use of an electrical circuit tester is
necessary to ensure proper match of a vehicle’s wiring to a trailer’s wiring. On the 6-way
plugs, the 12V wire and electric brake wire may be reversed on some trailers (particularly
horse trailers).

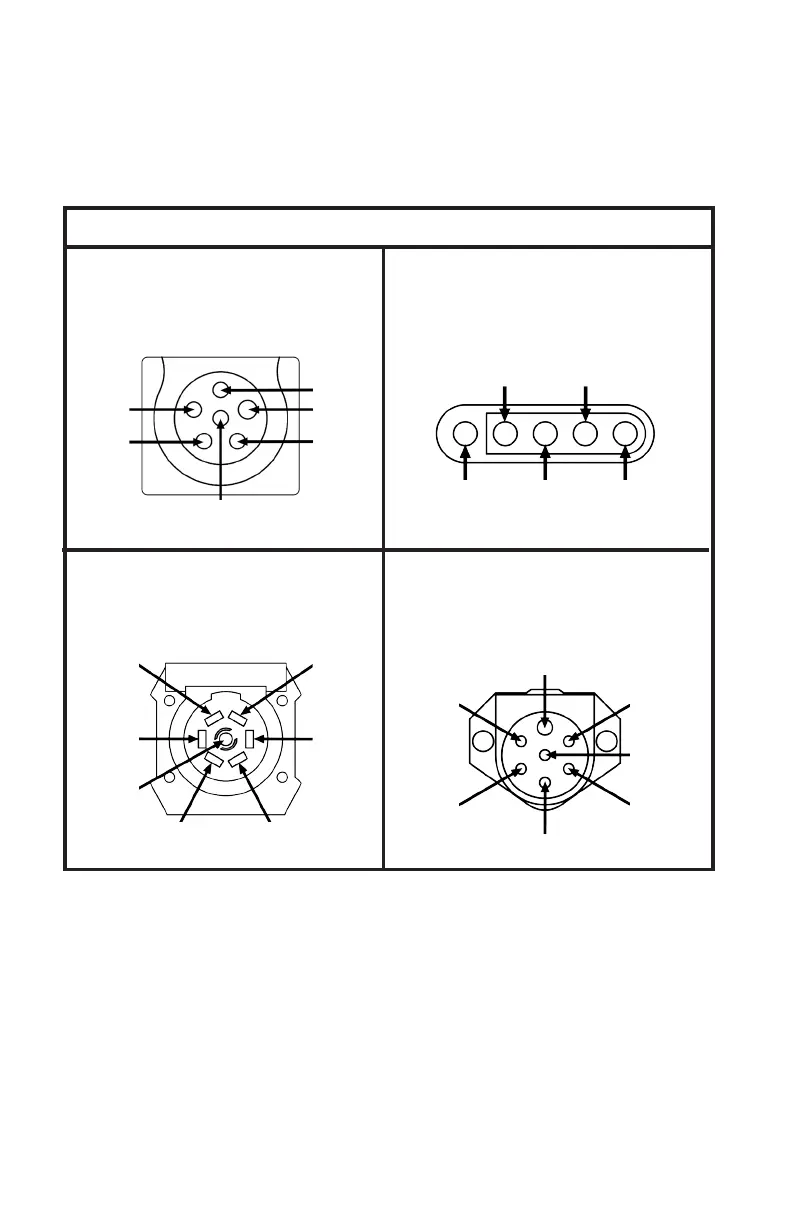

Fig. 4 - Trailer Wiring
4/5-WAY FLAT VEHICLE CONNECTION (FRONT VIEW)
GROUND
RIGHT TURN
& BRAKES (RT)
TAIL LIGHTS
(TAIL)
LEFT TURN
& BRAKES (LT)
AUX
(A)
4_5_Pin_Diagram_Truck_Side_View_VA_03_01.indd 1 8/28/2017 11:55:44 AM
4/5 PIN VEHICLE
CONNECTION (FRONT VIEW)
7-WAY SPADE/FLAT VEHICLE FEMALE SOCKET (FRONT VIEW)
GROUND
BACK-UP
LIGHTS (BU)
12 VOLT
(12V)
LEFT TURN
(LT)
ELECTRIC
BRAKE (EB)
TAIL LIGHTS
(TM)
RIGHT TURN
(RT)
7_Spade_Diagram_View_From_Truck_Side_Socket_VA_03_01.indd 1 8/28/2017 9:49:44 AM
7-WAY FLAT (SPADE) PIN
VEHICLE FEMALE SOCKET (FRONT VIEW)
6-WAY ROUND PIN VEHICLE FEMALE SOCKET (FRONT VIEW)
GROUND
12 VOLT AUX (12V)
LEFT TURN
(LT) & STOP
ELECTRIC
BRAKE (EB)
TAIL & RUNNING
LIGHTS (TM)
RIGHT TURN
(RT) & STOP
6_Round_Pin_Diagram_View_From_Truck_Side_Socket_VA_01_01.indd 1 5/10/2018 11:00:43 AM
6-WAY ROUND PIN VEHICLE
FEMALE SOCKET (FRONT VIEW)
TECHNICAL TIPS
• Never assume a battery is fully charged. Small batteries are especially prone to failure if
left discharged. Always verify your battery is charged to at least 12.2 volts before using.
• Most electric problems occur at the plug. Always make sure the pins are clean before
assuming something is wrong with the trailer.
• The Power LED will illuminate (even in the OFF position) when the tester is connected to
a trailer that has its own on-board battery supply. This indicates that the tester
recognizes voltage coming back from the trailer.
• As a best practice, limit the time engaging trailer electric brakes with this tool. Electric
brake magnets get very hot and are not intended to be left on for extended
periods of time.
7-WAY ROUND (J560) FEMALE SOCKET (FRONT VIEW)
GROUND (GD)
CLEARANCE
(GL-MARK)
AUX (ABS)
LEFT TURN
(LTS)
STOP/BRAKE
(STOP)
TAIL/TAG
(GL-TAIL)
RIGHT TURN
(RTS)
7-WAY ROUND (J560)
FEMALE SOCKET (FRONT VIEW)
