iPA LIGHT RANGER MUTT 9101 - Functional Descriptions

6
POWER
Max. Load: 10A @ 12V DC ONLY
Internal 10A Auto-Resetting Thermal Breaker (30-Second Cooldown)
Power LED illuminated in OFF position indicates battery is detected on trailer.
LED will go out if breaker is tripped.
WARNING! Do not connect charger to 12V DC socket unless internal battery is installed.
OFF

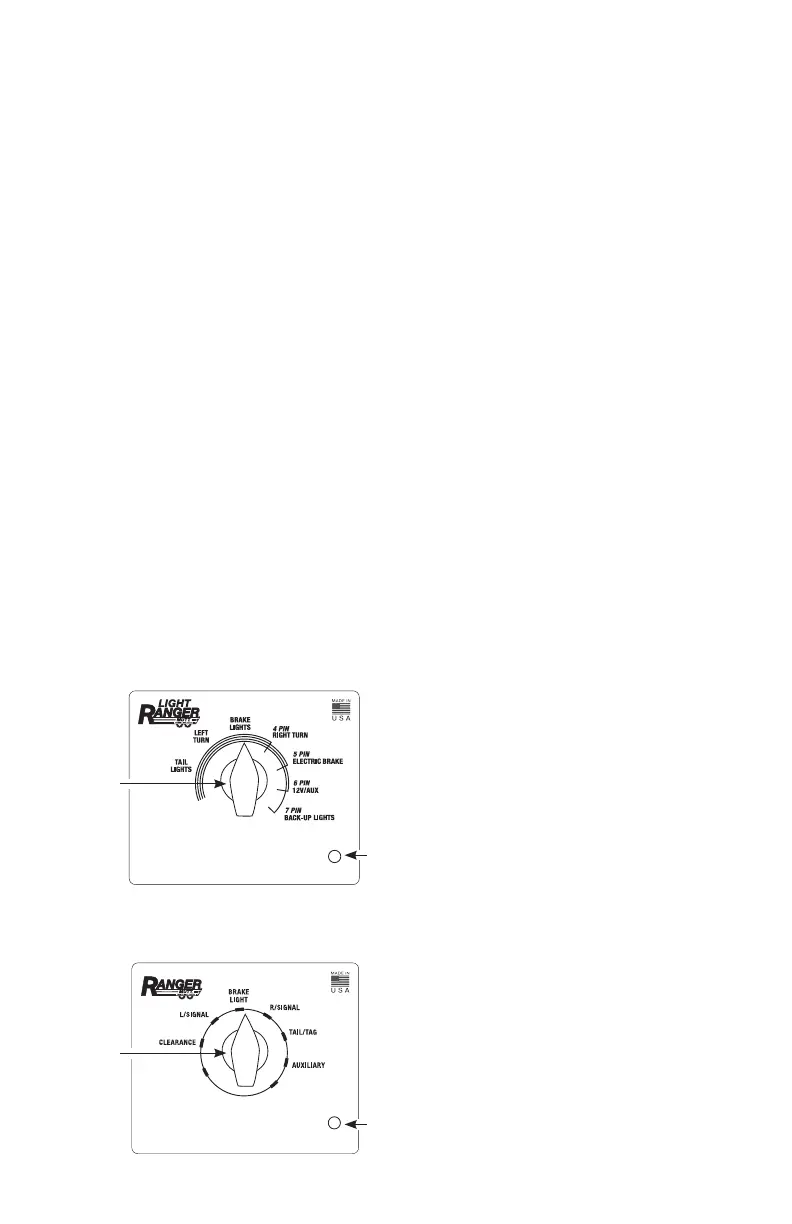

Fig. 2 - #9101 Control and Information Panel
1. Control Knob: Activates one
selected circuit at a time.
Selecting the “OFF” position
will turn the unit off.
2. Power LED: Illuminates
when a circuit is selected to
indicate the unit is on.
1
2
HEAVY
POWER
Max. Load: 10A @ 12V DC ONLY
Internal 10A Auto-Resetting Thermal Breaker (30-Second Cooldown)
Power LED illuminated in OFF positions indicates battery is detected on trailer.
LED will go out if breaker is tripped.
WARNING! Do not connect charger to 12V DC socket unless internal battery is installed.
OFF
OFF
Fig. 3 - #9102 Control and Information Panel
1. Control Knob: Activates one
selected circuit at a time.
Selecting either “OFF” position
will turn the unit off.
2. Power LED: Illuminates when a
circuit is selected to indicate
the unit is on.
1
2
NOTE: Use the supplied battery charger or charger input no greater than 10A to fully
charge the internal battery of the tester. It may take up to 12 hours to charge a fully
drained battery.
WARNING: NEVER OPERATE TESTER WITH BATTERY VOLTAGE LESS THAN 11.5V.
OPERATING ELECTRONIC DEVICES ON LOW VOLTAGE MAY SHORTEN LIFE OF
AND CAUSE DAMAGE TO INTERNAL COMPONENTS. IDEAL BATTERY VOLTAGE IS
12.0V DC TO 12.5V DC.
SET-UP
• Place the tester on a at, level surface.
• Chock trailer wheels to avoid rolling.
The Ranger MUTT
®
allows for the testing of trailer electrical systems without the
need of the tow vehicle. When used properly, the Ranger MUTT
®
can save hours
spent troubleshooting electrical issues.
CHECK 7-WAY PIN CONNECTORS: Before operating the Ranger MUTT
®
, be sure the
7-way socket on the front of the Ranger MUTT
®
and cable coming from the trailer are in
good condition and the pins are spread to the proper width to ensure good connections.
MAINTAIN 7-WAY PIN CONNECTORS: Dielectric grease should be used on all
connections to avoid corrosion. If a bad connection exists at the terminal junction, you
may get an erroneous reading and the MUTT
®
will not work properly. Make sure that you
have a solid connection in the 7-way socket.
FUNCTIONAL DESCRIPTIONS
The Ranger MUTT
®
is a diagnostic tool for trailers wired to North American style
congurations including 7-way at (spade), 6-way round pin and 4/5-pin harness
connectors (#9101 g. 2) and 7-way round pin congurations (#9102. g. 3).
