RSGM Installer Guide
5
2.2 Hardware Description
The RSGM can be mounted on any flat surface with the DHLD or mounted to the wall with the
WHLD. The external AC/DC adaptor feeds power to the RSGM. The connectors and indicators
on the front and rear panel are shown in Figure 2.2-1.

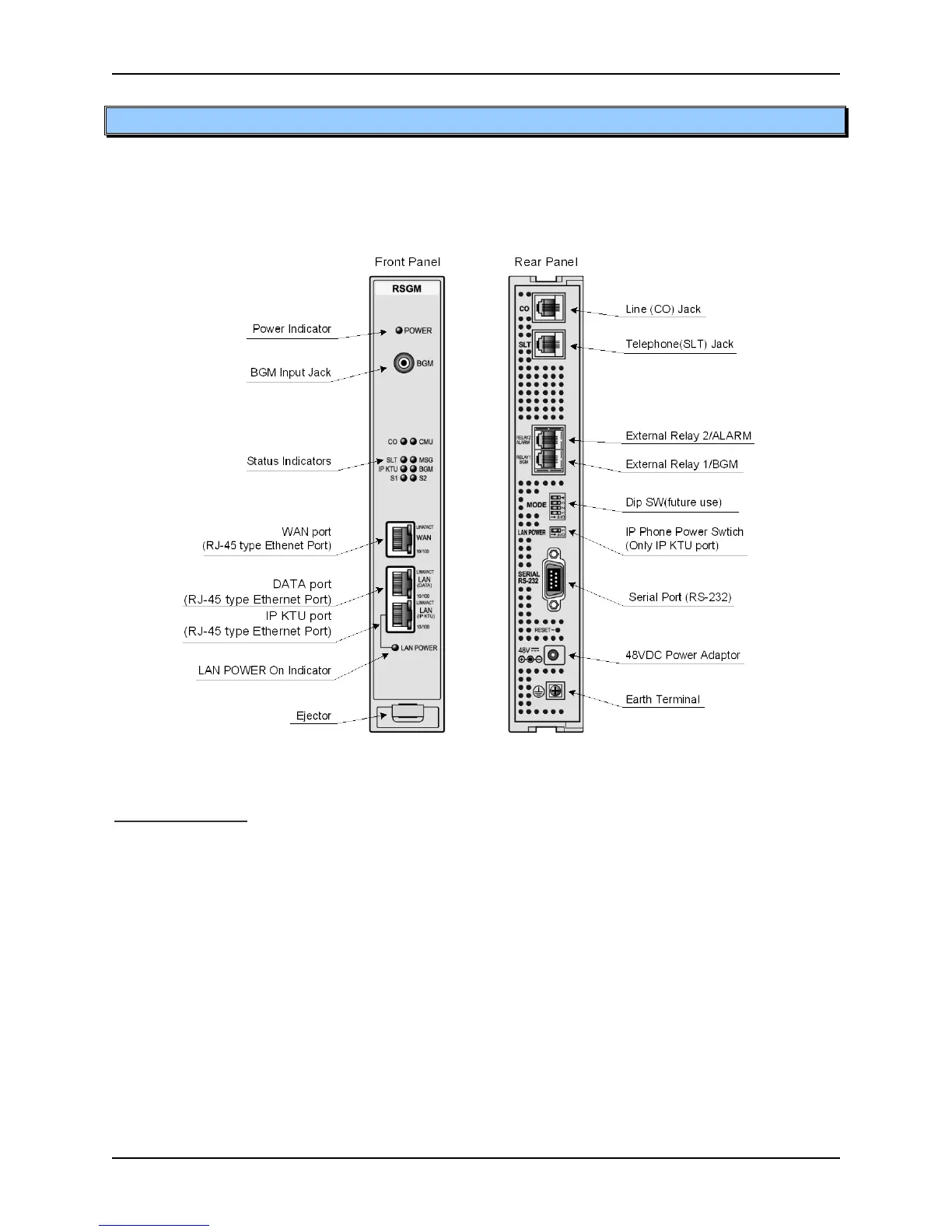

Figure 2.2-1 RSGM Front and Rear Panels

One WAN connection port (RJ-45: 10/100 Base T Ethernet port)
Connection ports

One PC connection port (RJ-45: 10/100 Base T Ethernet port)

One iPECS Phone connection port (RJ-45: 10/100 Base T Ethernet port, supply power to
iPECS Phone)

One Analog “CO” port (RJ-11, Loop Start)

One Analog ”SLT” port (RJ-11)

One “BGM” port (RCA Jack, RJ-11)

One Alarm/Doorbell Contact Input

Two Dry Relay Contacts

One RS-232 Serial Port

48VDC Power Input Jack
