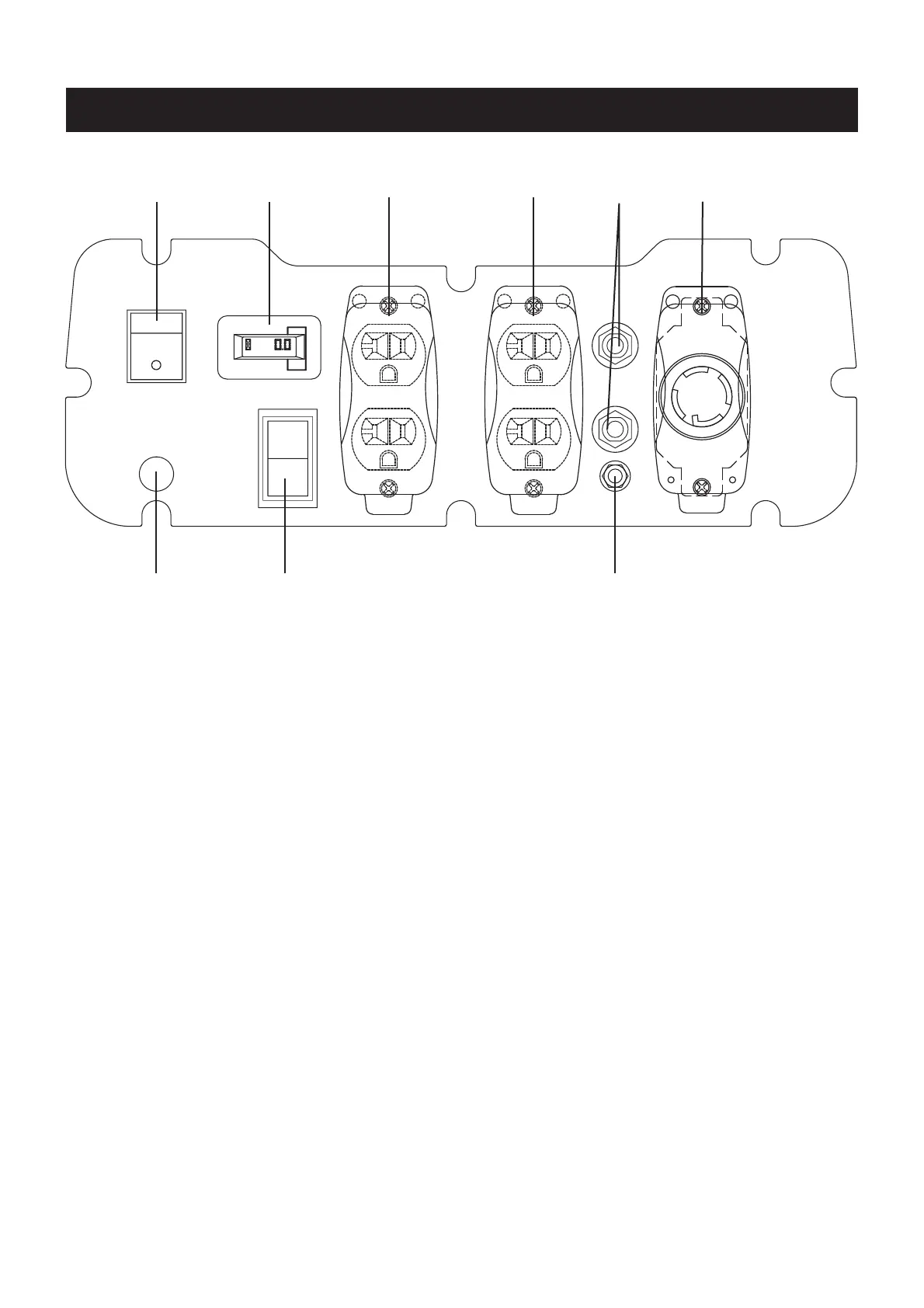

CONTROL PANEL FEATURES
NOTE: Total power drawn from all outlets must not exceed the nameplate rating.
1. Engine Control Switch: Flip the switch to the
“ON (l)” position and pull the recoil starter to
start the generator. Turn to the “OFF (O)”
position to turn off the generator.
2. Hour Meter: Displays and records how many
hours your generator has run (up to 9,999.9).
3. 120V AC, 20A Duplex, Single Phase, 60 Hz
Outlets (NEMA 5-20R): Each outlet is capable of
carrying a maximum of 20 Amp on a single outlet
or a combination of both outlets.
4. Circuit Breaker: Protects the generator against
electrical overloads.
5. 120/240V AC, 30A Twist Lock, Single Phase,
60 Hz Outlet (NEMA L14-30R): This outlet can
supply either 120 Volt or 240 Volt output.
6. Ground Terminal: The ground terminal is used to
ground the generator.
7. Voltage Selector Switch: To select 120 Volt or
240 Volt. TURN GENERATOR OFF BEFORE
SWITCHING VOLTAGES.
8. Low Oil Indicator: The Light will be illuminated
when the engine oil level is low. Add oil.
I
1
87 6
23 435
