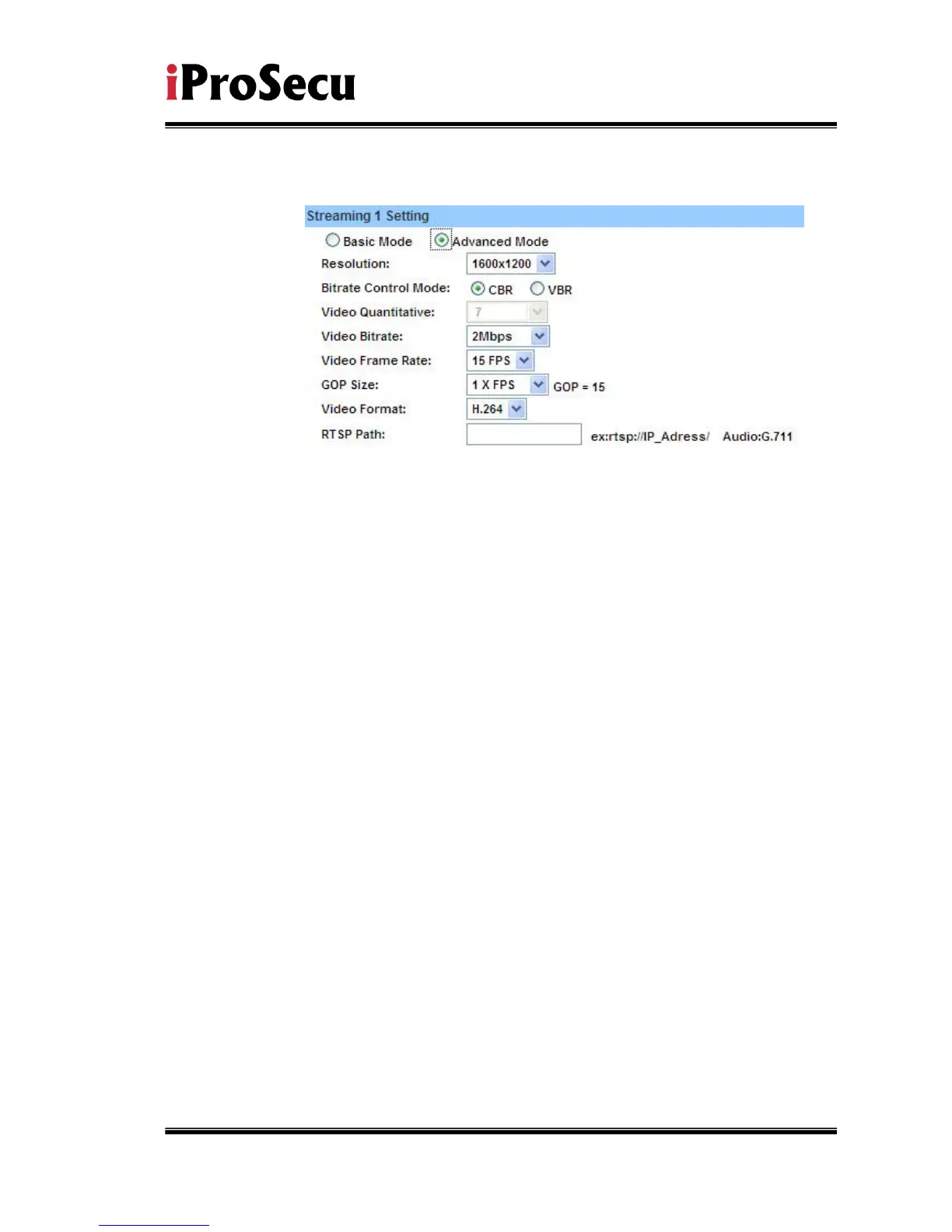

c. Streaming 1 Advanced Mode：
1. Resolution：
There are 8 resolutions can be chosen.
1600x 1200, 1280x1024, 1280x960, 1280x720, 800x600,
640x480, 320x240, 176x144
2. Bitrate Control Mode
There are CBR﹝Constant Bit Rate﹞ and VBR﹝Variable Bit
Rate﹞to use.
CBR：32Kbps~4Mbps (the higher the CBR is, the better the
video quality is)
VBR：1(Low)~10(High) – Compression rate, the higher the
compression rate, the lower the picture quality is; vise versa.
The balance between VBR and network bandwidth will affect
picture quality. Please carefully select the VBR rate to avoid
picture breaking up or lagging.
3. Video Frame Rate
The video refreshing rate per second.
NTSC: Max 30 frames/second PAL: Max 25 frames/second
4. GOP Size
It means "Group of Pictures". The higher the GOP is, the better
the quality is.
5. Video Format：H.264 or JPEG
6. RTSP Path: RTSP output connecting route
