Tumblers – T30 and T45
4-08-43
17

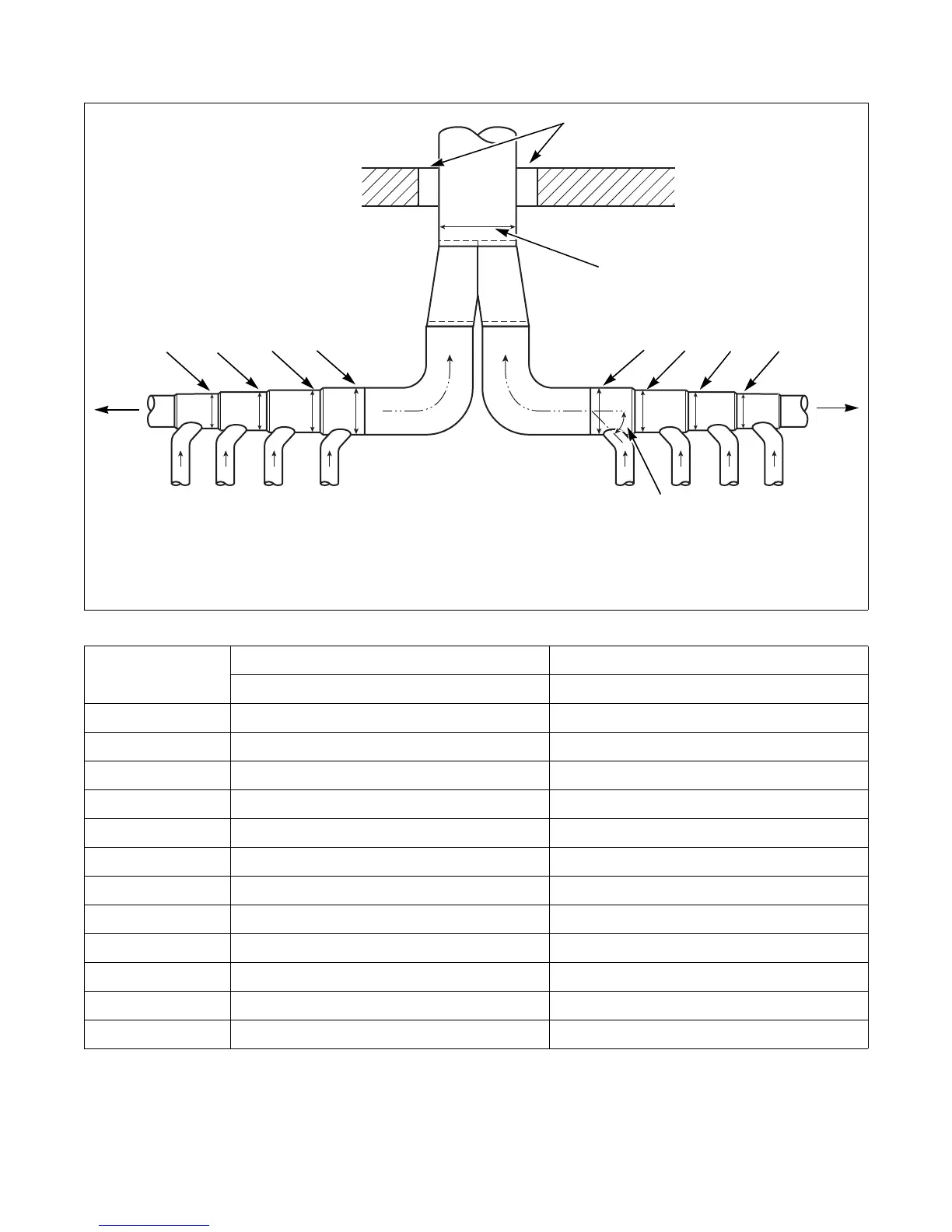

Figure 5
TMB2018N
1 NOTE: Where the exhaust duct pierces a
combustible wall or ceiling, the opening
MUST be sized per local codes.
2 Outlet Duct Diameter
3 45° Typical
1
2
3
LK
J
I
L
KJ
I
CONTINUE
TO A
CONTINUE
TO A
TWO MANIFOLD ASSEMBLIES
Duct
Station
T30 T45
8 in. (203 mm) Duct 10 in. (254 mm) Duct
A
12 in. (305 mm) 15 in. (381 mm)
B
17 in. (432 mm) 22 in. (559 mm)
C
22 in. (559 mm) 26 in. (660 mm)
D
25 in. (635 mm) 30 in. (762 mm)
E
27 in. (686 mm) 34 in. (864 mm)
F
30 in. (762 mm) 37 in. (940 mm)
G
33 in. (838 mm) 40 in. (1016 mm)
H
34 in. (864 mm) 43 in. (1092 mm)
I
37 in. (940 mm) 46 in. (1168 mm)
J
39 in. (991 mm) 47 in. (1194 mm)
K
40 in. (1016 mm) 50 in. (1270 mm)
L
43 in. (1092 mm) 51 in. (1295 mm)
Table 3
