IPSO T30 - Electrical Connection Locations

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Tumblers – T30 and T45
8
4-08-43

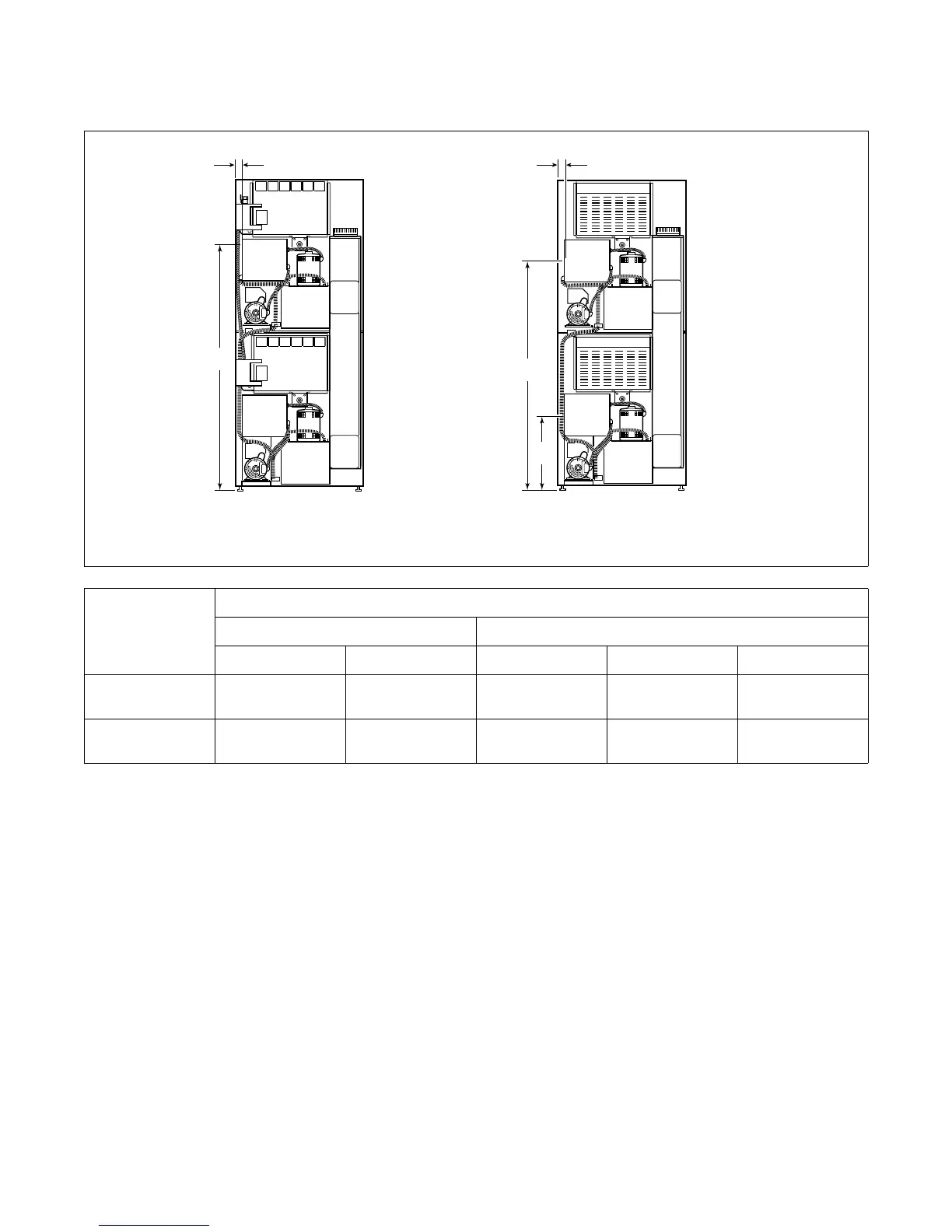

Electrical Connection Locations
TMB1971N
TMB1971N
A
B
E
D
C
GAS AND STEAM ELECTRIC
Models
Electric Service
Gas and Steam Models Electric Models
ABCDE
T30
59 in.
(1498 mm)
1.75 in.
(44 mm)
35.63 in.
(905 mm)
73.21 in.
(1859 mm)
2.28 in.
(58 mm)
T45
62.5 in.
(1588 mm)
1.75 in.
(44 mm)
N/A N/A N/A
N/A = Not Applicable
