IPSO TMB795C - Steam Connection Locations

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Tumblers – 50 and 75
4-08-44
9

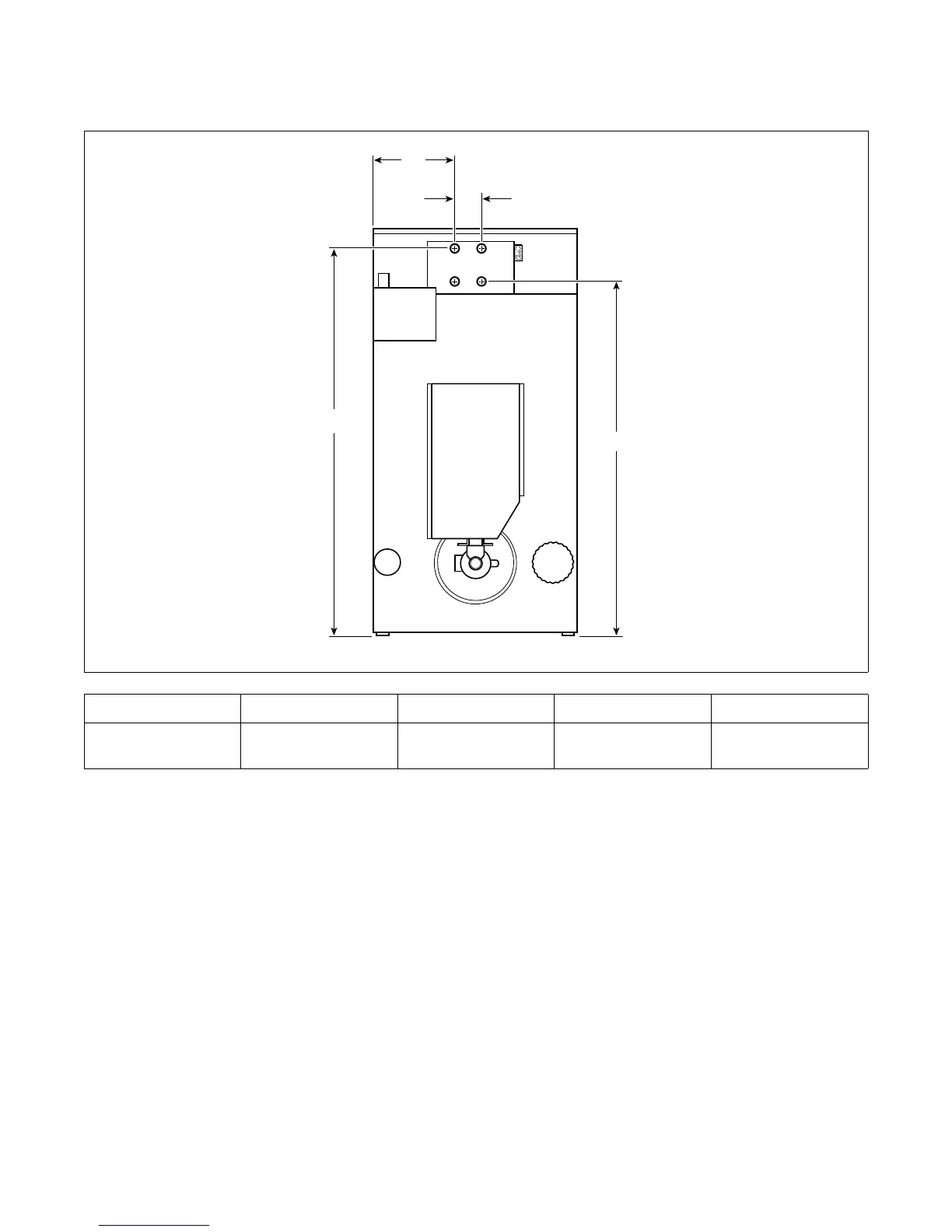

Steam Connection Locations
TMB814N
C
A
B
D
DiameterABCD
3/4 in. NPT
15.25 in.
(387 mm)
72.75 in.
(1848 mm)
7.5 in.
(190 mm)
64.75 in.
(1645 mm)
