Tumblers – 50 and 75
4-08-44
11

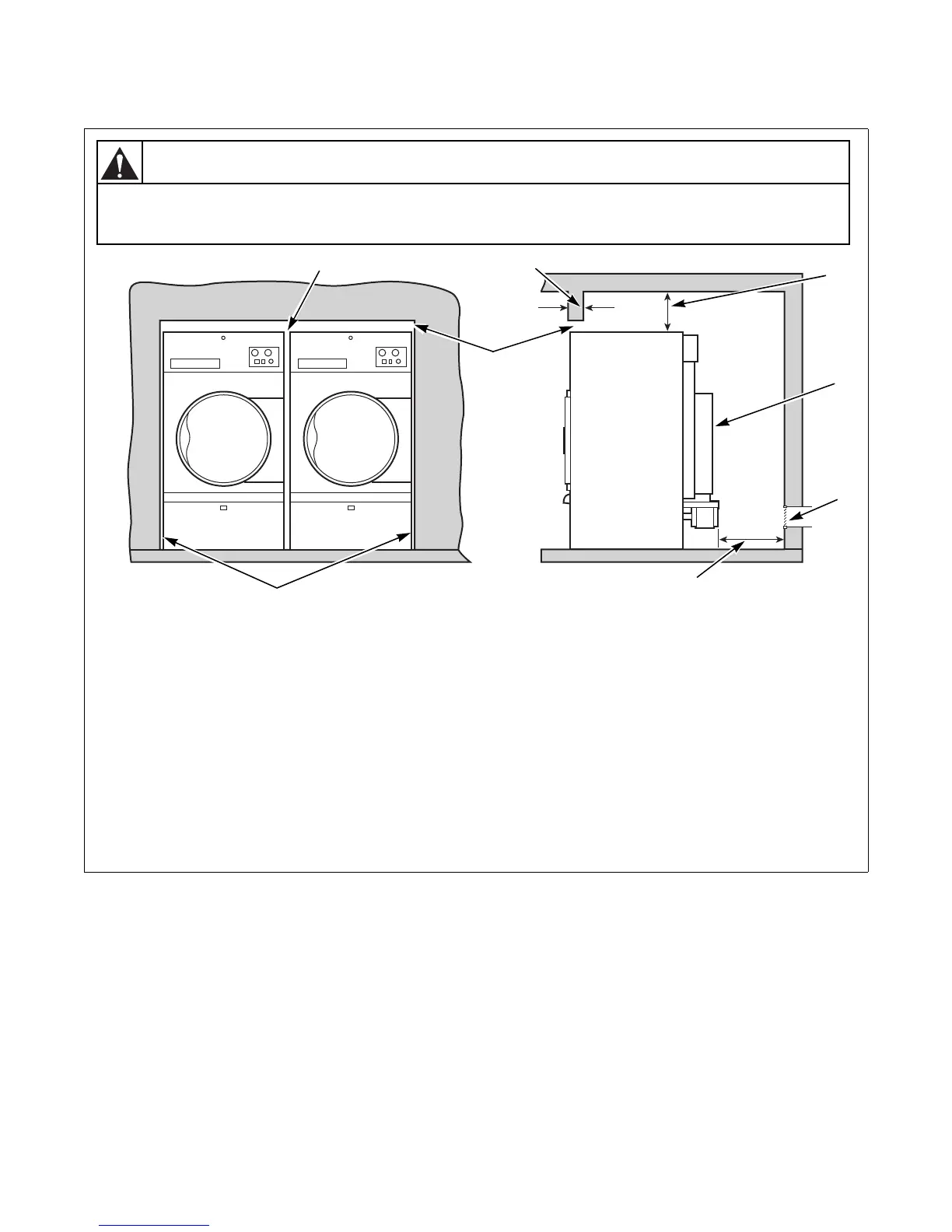

Tumbler Enclosure
Figure 1
TMB2131N
NOTE: Shaded areas indicate adjacent structure.
1 0.5 in. (13 mm) recommended between machines for removal or installation
2 Allow 2-4 in. (51-102 mm) opening at top of machine to aid in removal or installation. A removable trim piece
may be used to conceal the opening; zero clearance allowed for trim.
3 4 in. (102 mm) maximum header thickness
4 12 in. (305 mm) minimum clearance permitted for remainder
5 Guard
6 Provision for make-up air
7 24 in. (610 mm) minimum, 36 in. (914 mm) recommended for maintenance purposes
8 0.25 in. (6 mm) recommended for removal or installation purposes, zero clearance allowed
WARNING
To reduce the risk of severe injury, clearance of tumbler cabinet from combustible
construction must conform to the minimum clearances.
W056
